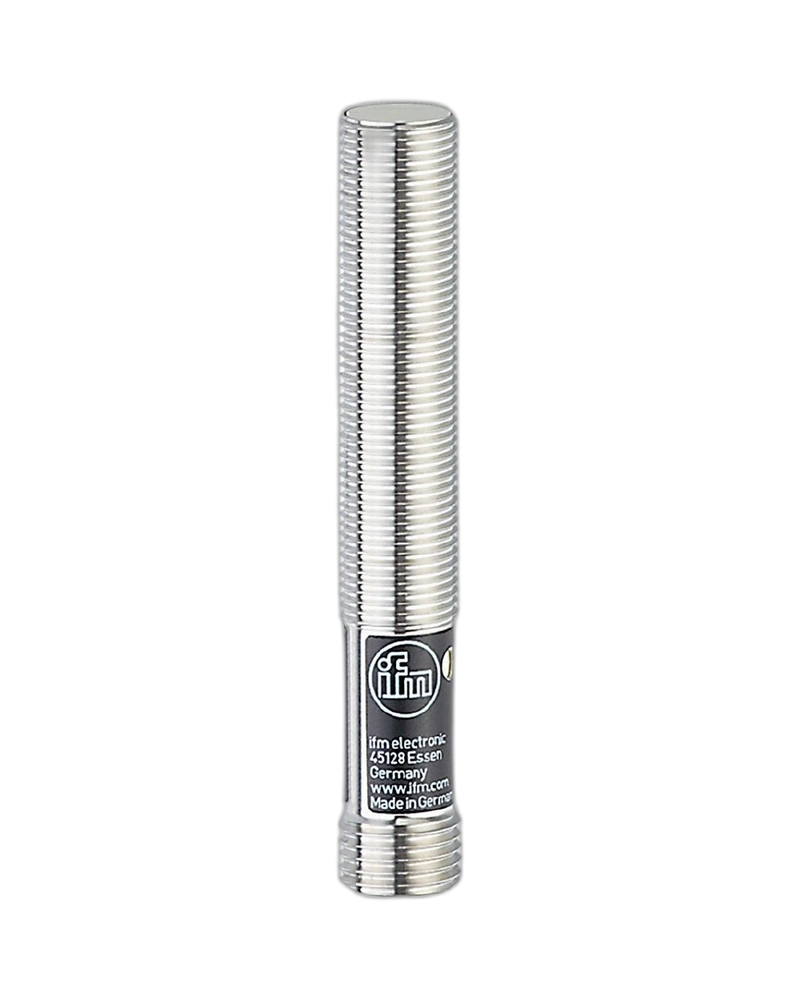

The IF0279 IFA2002-ABOW/SL/LS-100AK RT inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Featuring a 2 mm sensing range, normally-open AC output, 20–250 V AC operating voltage, M12 × 1 threaded housing and IP67 protection, it is well suited for machine position detection, metal-part sensing and factory automation applications. It is an excellent choice for businesses seeking reliable Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and industrial automation components for demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF0279 IFA2002-ABOW/SL/LS-100AK RT inductive sensor by IFM is engineered for dependable non-contact detection of metallic objects in industrial machinery, production equipment and automation systems. Its compact M12 × 1 metal housing, flush-mountable construction and AC electrical design make it suitable for machine position monitoring and reliable proximity detection in industrial environments.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. When a suitable metal object enters the sensing field, the sensor switches its normally-open output. This non-contact operating principle helps reduce mechanical wear and supports repeated detection operations in automated machinery.
• IFM IF0279 inductive proximity sensor
• Model: IFA2002-ABOW/SL/LS-100AK RT
• 2 mm nominal sensing range
• Real sensing range: 2 ± 10% mm
• Operating distance: 0–1.6 mm
• Flush-mountable installation
• AC electrical design
• Normally-open output function
• 20–250 V AC operating voltage
• 47–63 Hz operating frequency
• 25 Hz switching frequency
• M12 × 1 threaded metal housing
• IP67 protection rating
• -25 °C to +80 °C ambient temperature
• Visible switching-status indication
• Suitable for machine position detection
• Designed for demanding industrial applications
The IF0279 features a metal M12 × 1 threaded housing designed for robust installation in industrial machinery. Its flush-mountable construction allows the sensing face to be integrated neatly into compatible metal machine structures while maintaining reliable proximity detection.
The sensor operates with a 20–250 V AC supply at 47–63 Hz and provides a normally-open switching output. This makes it suitable for compatible AC control circuits and machine-monitoring applications where reliable detection of metallic components is required.
The IF0279 provides a 2 mm nominal sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.6 mm.
Its correction factors vary according to the target material. Typical values are approximately 1 for mild steel, 0.7 for stainless steel, 0.4 for brass, 0.4 for aluminium and 0.3 for copper. These factors should be considered when selecting the sensor for applications involving different metallic target materials.
The sensor uses a normally-open AC output and is designed for applications requiring direct AC switching. Its permanent switching current is specified at 200 mA, increasing to 250 mA at temperatures up to 50 °C, while the short-time peak current can reach 0.9 A for 20 ms at 0.5 Hz.
The sensor provides a 25 Hz switching frequency, making it appropriate for repeated but comparatively moderate-speed detection tasks in industrial machinery.
The IF0279 can be integrated into a wide range of Industrial Automation UAE applications where reliable detection of metallic components is required.
Machine Position Detection
Detects the position of metal machine components, slides, fixtures and moving mechanisms.
Metal Component Detection
Identifies the presence or absence of metallic workpieces during manufacturing and assembly processes.
Machine Monitoring
Provides proximity feedback for machine-control and monitoring systems.
Conveyor Applications
Can detect metallic components or products passing a defined sensing point.
Production Machinery
Supports automated machine sequences requiring dependable proximity detection.
Material Handling
Can be used for position and presence detection in automated handling equipment.
The IF0279 can form part of Industrial Automation Systems in UAE, working with compatible AC control circuits and industrial equipment.
It is suitable for machine builders, system integrators and Industrial automation companies in UAE requiring a robust inductive sensor for metallic object detection. The sensor can also complement other Industrial Automation Components UAE, including controllers, switches, actuators and control equipment.
The IF0279 has an IP67 protection rating, helping protect the sensor against dust ingress and water exposure under the specified conditions. Its operating temperature range of -25 °C to +80 °C allows use across a broad range of industrial environments.
The robust metal housing is suitable for industrial installations where dependable mechanical construction and visible switching-status indication are important.
• Reliable non-contact metal detection
• 2 mm sensing range
• Flush-mountable M12 × 1 design
• Wide 20–250 V AC operating voltage range
• Normally-open AC output
• 25 Hz switching frequency
• Robust metal housing
• IP67 protection
• Wide -25 °C to +80 °C operating temperature range
• Suitable for machine position and presence detection
• Suitable for industrial machinery and factory automation
The IF0279 IFA2002-ABOW/SL/LS-100AK RT is a compact and robust IFM inductive proximity sensor designed for reliable metallic object detection. With its 2 mm sensing range, normally-open AC output, wide AC operating voltage, flush-mountable M12 × 1 construction and IP67 protection, it is a practical solution for machine monitoring, position detection and Industrial Automation Equipment UAE applications.
| Specification | Details |
|---|---|
| Product Code | IF0279 |
| Manufacturer | IFM |
| Model / Part Number | IFA2002-ABOW/SL/LS-100AK RT |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | AC |
| Output Function | Normally Open (NO) |
| Operating Voltage | 20–250 V AC |
| Operating Frequency | 47–63 Hz |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Mounting | Flush mountable |
| Housing Type | Threaded |
| Thread | M12 × 1 |
| Housing | Metal |
| Switching Frequency | 25 Hz |
| Permanent Current Rating | 200 mA |
| Permanent Current Rating at 50 °C | 250 mA |
| Short-Time Peak Current | 0.9 A |
| Peak Current Duration | 20 ms at 0.5 Hz |
| Maximum Voltage Drop | < 8.5 V |
| Minimum Load Current | 8 mA |
| Maximum Leakage Current | < 2 mA |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Reverse Polarity Protection | Not applicable for AC design |
| Hysteresis | 3–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Mild Steel | 1 |
| Correction Factor – Stainless Steel | Approx. 0.7 |
| Correction Factor – Brass | Approx. 0.4 |
| Correction Factor – Aluminium | Approx. 0.4 |
| Correction Factor – Copper | Approx. 0.3 |
| Connection | M12 connector |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| Switching Status Indication | Visible switching-status indication |
| Typical Applications | Machine position detection, metal detection, machine monitoring, conveyor systems and factory automation |
