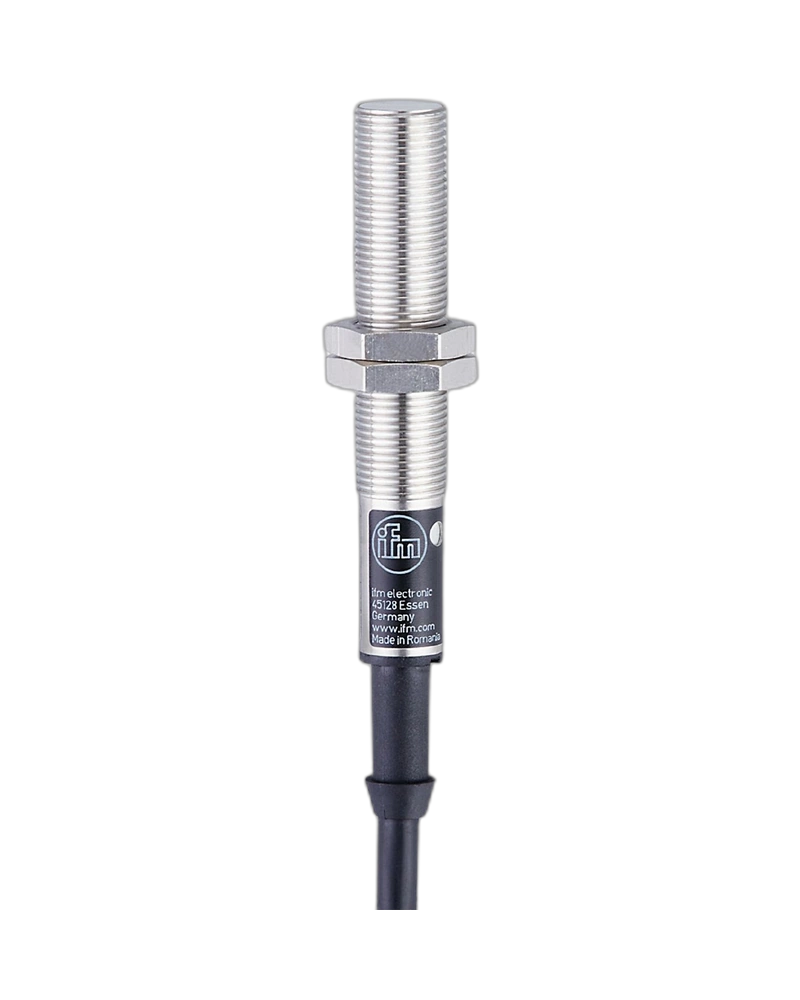

The IF0027 IFA2004-ABOW/6M inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. With a 4 mm sensing range, normally-open AC output, 20–250 V AC operation, 25 Hz switching frequency, 6 m PVC cable and IP67 protection, it is suitable for machine position detection, conveyor systems, production equipment and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF0027 IFA2004-ABOW/6M inductive sensor by IFM is engineered for reliable non-contact detection of metallic objects in industrial machinery, production equipment and factory automation systems. Its robust M12 × 1 threaded construction, two-wire AC electrical design and extended 6 m PVC connection cable provide a practical solution for proximity detection where additional cable length is required between the sensor and control equipment.
The sensor operates using inductive proximity sensing technology, detecting metallic targets without physical contact. This non-contact principle makes it suitable for repeated detection of machine components, workpieces, moving parts and fixtures while reducing the mechanical wear associated with contact-based switches.
The IF0027 provides a 4 mm nominal sensing range, with a real sensing range of 4 ± 10% mm and an operating distance of 0–3.25 mm. Its non-flush mounting design allows the sensing face to be positioned appropriately for reliable detection of metallic targets.
• IFM IF0027 inductive proximity sensor
• Model: IFA2004-ABOW/6M
• 4 mm nominal sensing range
• Real sensing range: 4 ± 10% mm
• Operating distance: 0–3.25 mm
• Normally-open (NO) output function
• AC two-wire electrical design
• 20–250 V AC operating voltage
• 47–63 Hz operating frequency
• 25 Hz switching frequency
• M12 × 1 threaded housing
• Approximately 71.5 mm overall length
• Non-flush mounting
• 6 m PVC connection cable
• Cable specification: 2 × 0.5 mm²
• IP67 protection rating
• Protection class II
• Yellow LED switching-status indication
• -25 °C to +80 °C ambient temperature range
• EN 60947-5-2 EMC compliance
• Suitable for industrial machine and automation applications
The IF0027 features a cylindrical M12 × 1 threaded housing designed for reliable installation in industrial machinery and automation equipment. Its non-flush mounting configuration allows the sensing face to extend beyond the surrounding metal structure for dependable target detection.
The sensor uses a two-wire AC electrical design and operates from 20–250 V AC at 47–63 Hz. Its normally-open switching function allows the sensor to provide a detection signal to compatible AC industrial control circuits.
The 6 m PVC connection cable provides additional installation flexibility compared with shorter cable versions. This makes the sensor suitable for machine layouts where the sensor and connected control equipment are separated by a longer distance.
The IF0027 detects metallic objects through an inductive sensing field without requiring physical contact with the target. When a suitable metal object enters the sensing zone, the sensor changes its output state.
The 4 mm nominal sensing range makes the sensor suitable for detecting metal components, workpieces, machine parts, moving assemblies and fixtures in automated processes.
The correction factors for common target materials should be considered during application design:
• Steel: 1
• Stainless steel: approximately 0.7
• Brass: approximately 0.4
• Aluminium: approximately 0.3
• Copper: approximately 0.2
The IF0027 uses a normally-open AC output with a two-wire electrical configuration. Its 20–250 V AC operating range allows integration into compatible AC industrial control circuits.
The sensor is designed for reliable switching in applications where metallic objects need to be detected repeatedly during machine operation, material handling and automated production.
The 6 m PVC connection cable provides convenient installation where additional cable reach is required.
The cable uses 2 × 0.5 mm² conductors, providing a practical connection between the sensor and compatible control or automation equipment.
The extended cable length can help simplify sensor installation on larger machines, conveyor systems and production equipment without requiring the sensor to be positioned close to the control cabinet.
The IF0027 can be integrated into Industrial Automation UAE applications requiring dependable non-contact detection of metallic objects.
Machine Position Detection
The sensor can detect metallic machine components, slides, stops and moving assemblies to provide position feedback.
Metal Component Detection
It can detect the presence or absence of metal workpieces during manufacturing, assembly and production processes.
Conveyor Systems
The IF0027 can detect metallic objects moving along conveyors and transfer systems and provide switching feedback to compatible control equipment.
Machine Monitoring
The sensor can monitor the position of machine components and provide proximity feedback during automated machine cycles.
Production Equipment
It is suitable for automated production machinery requiring repeatable detection of metallic components and workpieces.
Factory Automation
The sensor can form part of Factory Automation Components used for metal detection, position sensing and machine-control applications.
The IF0027 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
The -25 °C to +80 °C ambient temperature range supports use across a broad range of industrial machinery and factory environments.
The sensor's yellow switching-status indication provides visual feedback during installation, commissioning and maintenance.
The IF0027 is designed for repetitive metallic-object detection in industrial automation applications. Its 4 mm sensing range and 25 Hz switching frequency provide dependable detection for machine components and workpieces moving at moderate speeds.
The combination of non-contact inductive sensing, 6 m cable length, wide AC operating voltage and IP67 protection makes the sensor suitable for machine builders, production facilities and industrial automation systems requiring flexible sensor installation.
• Reliable non-contact metal detection
• 4 mm nominal sensing range
• Wide 20–250 V AC operating-voltage range
• Normally-open AC output
• Two-wire electrical design
• Extended 6 m PVC connection cable
• M12 × 1 threaded construction
• Non-flush mounting
• IP67 protection
• 25 Hz switching frequency
• Yellow LED switching-status indication
• Suitable for machine position detection
• Suitable for conveyor systems
• Suitable for production machinery
• Suitable for factory automation systems
• -25 °C to +80 °C operating temperature range
The IF0027 IFA2004-ABOW/6M is a dependable IFM inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation and machine-control applications. Its 4 mm sensing range, normally-open AC output, 20–250 V AC operation, 6 m PVC cable, M12 × 1 threaded housing and IP67 protection make it a practical choice for machinery, conveyors, production equipment and Industrial Automation Solutions in UAE.
| Specification | Details |
|---|---|
| Product Code | IF0027 |
| Manufacturer | IFM |
| Model / Part Number | IFA2004-ABOW/6M |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | AC, 2-wire |
| Output Function | Normally Open (NO) |
| Operating Voltage | 20–250 V AC |
| AC Frequency | 47–63 Hz |
| Sensing Range | 4 mm |
| Real Sensing Range (Sr) | 4 ± 10% mm |
| Operating Distance | 0–3.25 mm |
| Housing Type | Cylindrical, threaded |
| Thread | M12 × 1 |
| Overall Length | Approximately 71.5 mm |
| Mounting | Non-flush |
| Housing Material | PBT |
| Connection | 6 m PVC cable |
| Cable Specification | 2 × 0.5 mm² |
| Switching Frequency | 25 Hz |
| Minimum Load Current | 8 mA |
| Maximum Leakage Current | 2 mA |
| Permanent Switching Current | 250 mA up to 50 °C / 200 mA up to 80 °C |
| Short-Time Switching Current | 900 mA, 20 ms / 0.5 Hz |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Protection Rating | IP67 |
| Protection Class | II |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| Output Status Indication | Yellow LED |
| Included Accessories | Mounting accessories |
| Pack Quantity | 1 piece |
| Typical Applications | Machine position detection, metal detection, conveyor systems, production machinery and factory automation |
