The IF0016 IF-2004-ABOW/10M inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. With a 4 mm sensing range, normally-open AC output, 20–250 V AC operation, 25 Hz switching frequency, 10 m PVC cable and IP67 protection, it is suitable for machine position detection, conveyors, production equipment and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF0016 IF-2004-ABOW/10M inductive sensor by IFM is engineered for reliable non-contact detection of metallic objects in industrial machinery, production equipment and factory automation systems. Its robust M12 × 1 threaded construction, two-wire AC technology and extended 10 m PVC connection cable make it a practical solution for applications where dependable proximity detection is required over longer cable distances.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This allows repeated detection of machine components, workpieces, moving parts and fixtures while avoiding the mechanical wear associated with conventional contact switches.
The IF0016 provides a 4 mm nominal sensing range, with a real sensing range of 4 ± 10% mm and an operating distance of 0–3.25 mm. The sensor is designed for non-flush mounting, making it suitable for installations where the sensing face projects beyond the surrounding metal structure.
• IFM IF0016 inductive proximity sensor
• Model: IF-2004-ABOW/10M
• 4 mm nominal sensing range
• Real sensing range: 4 ± 10% mm
• Operating distance: 0–3.25 mm
• Normally-open (NO) output function
• AC two-wire electrical design
• 20–250 V AC operating voltage
• 47–63 Hz operating frequency
• 25 Hz switching frequency
• M12 × 1 threaded housing
• 71.5 mm overall length
• Non-flush mounting
• 10 m PVC connection cable
• Cable specification: 2 × 0.5 mm²
• IP67 protection rating
• Protection class II
• Yellow LED switching-status indication
• -25 °C to +80 °C ambient temperature range
• EN 60947-5-2 EMC compliance
• Supplied with 2 mounting nuts

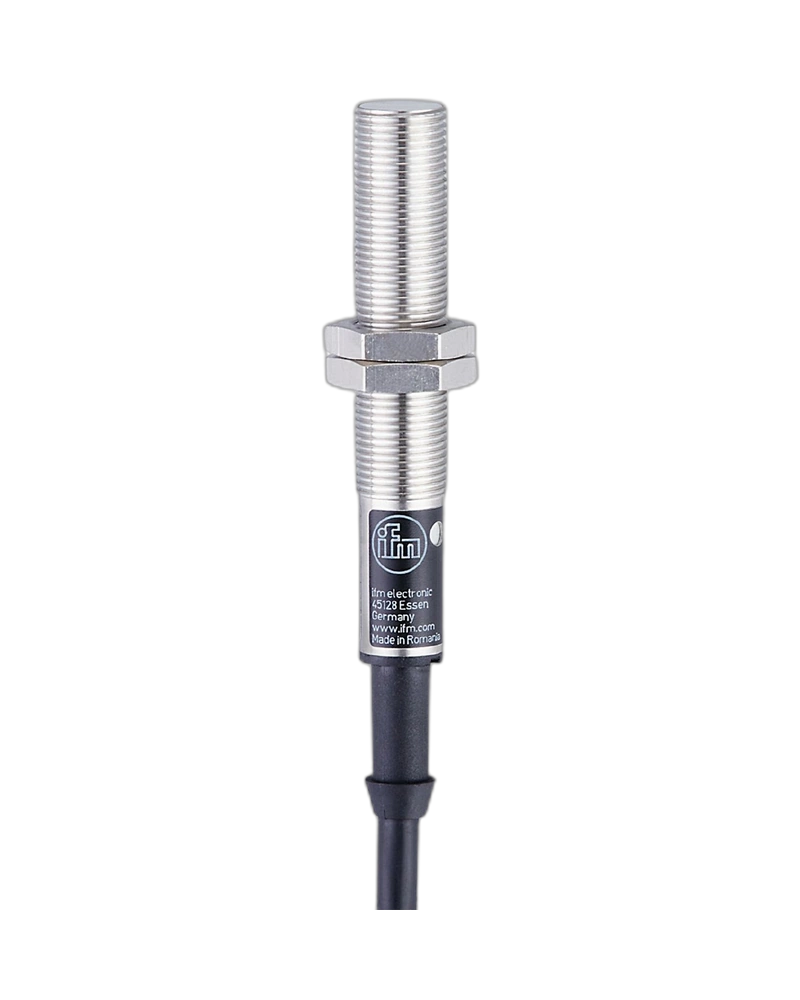

The IF0016 features a cylindrical M12 × 1 threaded housing with an overall length of approximately 71.5 mm. Its non-flush installation design allows the sensing face to be positioned appropriately for reliable detection of metallic targets.
The sensor uses two-wire AC technology and operates across a wide 20–250 V AC supply range at 47–63 Hz. The normally-open switching function allows the sensor to provide a detection signal to compatible AC industrial control circuits.
A major advantage of this version is its 10 m PVC connection cable, which provides additional installation flexibility when the sensor is positioned at a greater distance from the connected control equipment.
The IF0016 detects metallic objects without physical contact by using an inductive sensing field. When a suitable metal target enters the sensing zone, the sensor switches its output.
Its 4 mm sensing range is suitable for detecting machine parts, metal workpieces, fixtures, moving components and other metallic objects used in automated processes.
The specified correction factors for different target materials are:
• Steel: 1
• Stainless steel: approximately 0.7
• Brass: approximately 0.4
• Aluminium: approximately 0.3
• Copper: approximately 0.2
These correction factors should be considered when determining the actual detection distance for different metallic targets.
The IF0016 uses a normally-open AC switching output with a two-wire electrical configuration. Its 20–250 V AC operating-voltage range makes it suitable for compatible AC control circuits.
The sensor has a minimum load current of 8 mA, maximum leakage current of 2 mA and a permanent switching current rating of 250 mA up to 50 °C and 200 mA up to 80 °C under the specified conditions.
The 10 m PVC cable provides extended connection length for installations where the sensor is located away from the control cabinet, junction point or automation equipment.
The cable uses 2 × 0.5 mm² conductors and provides a straightforward connection for compatible industrial AC control systems.
The IF0016 can be integrated into Industrial Automation UAE applications requiring reliable detection of metallic objects.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, stops and moving mechanical assemblies.
Metal Component Detection
It can detect the presence or absence of metal components during manufacturing, assembly and production processes.
Conveyor Systems
The IF0016 can detect metallic workpieces travelling through conveyor and transfer systems and provide switching feedback to compatible control equipment.
Machine Monitoring
The sensor can provide proximity feedback for machine components and help identify predefined positions during automated machine cycles.
Production Equipment
It is suitable for automated production machinery where repeatable non-contact detection of metallic targets is required.
Factory Automation
The IF0016 can be incorporated into Factory Automation Components used for position sensing, metal detection and machine-control functions.
The IF0016 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
Its -25 °C to +80 °C ambient temperature range makes it suitable for a broad range of industrial machinery and factory environments.
The sensor also provides a yellow switching-status LED, allowing technicians to visually identify the switching condition during installation, commissioning and maintenance.
The IF0016 is designed for repetitive metallic-object detection in industrial automation applications. Its 4 mm sensing range and 25 Hz switching frequency support reliable detection of moving machine components and workpieces in applications with moderate switching requirements.
The combination of non-contact inductive sensing, 10 m cable length, IP67 protection and wide AC operating voltage makes it suitable for machine builders, production facilities and industrial automation systems requiring dependable proximity feedback.
• Reliable non-contact metal detection
• 4 mm sensing range
• Wide 20–250 V AC operating-voltage range
• Normally-open AC output
• Two-wire electrical design
• Extended 10 m PVC connection cable
• M12 × 1 threaded construction
• Non-flush mounting
• IP67 protection
• 25 Hz switching frequency
• Yellow LED switching-status indication
• Suitable for machine position detection
• Suitable for conveyor applications
• Suitable for production machinery
• Suitable for factory automation systems
• -25 °C to +80 °C operating temperature range
The IF0016 IF-2004-ABOW/10M is a dependable IFM inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation and machine-control applications. Its 4 mm sensing range, normally-open AC output, 20–250 V AC operation, 10 m PVC cable, M12 × 1 threaded housing and IP67 protection make it a practical solution for machinery, conveyors, production equipment and Industrial Automation Solutions in UAE.
| Specification | Details |
|---|---|
| Product Code | IF0016 |
| Manufacturer | IFM |
| Model / Part Number | IF-2004-ABOW/10M |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | AC, 2-wire |
| Output Function | Normally Open (NO) |
| Operating Voltage | 20–250 V AC |
| AC Frequency | 47–63 Hz |
| Sensing Range | 4 mm |
| Real Sensing Range (Sr) | 4 ± 10% mm |
| Operating Distance | 0–3.25 mm |
| Housing Type | Cylindrical, threaded |
| Thread | M12 × 1 |
| Overall Length | 71.5 mm |
| Mounting | Non-flush |
| Housing Material | PBT |
| Connection | 10 m PVC cable |
| Cable Specification | 2 × 0.5 mm² |
| Switching Frequency | 25 Hz |
| Maximum Voltage Drop | < 8.5 V |
| Minimum Load Current | 8 mA |
| Maximum Leakage Current | < 2 mA |
| Permanent Switching Current | 250 mA up to 50 °C / 200 mA up to 80 °C |
| Short-Time Switching Current | 900 mA, 20 ms / 0.5 Hz |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Reverse Polarity Protection | No |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Protection Rating | IP67 |
| Protection Class | II |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| Output Status Indication | Yellow LED |
| Included Accessories | 2 mounting nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Machine position detection, metal detection, conveyor systems, production machinery and factory automation |
