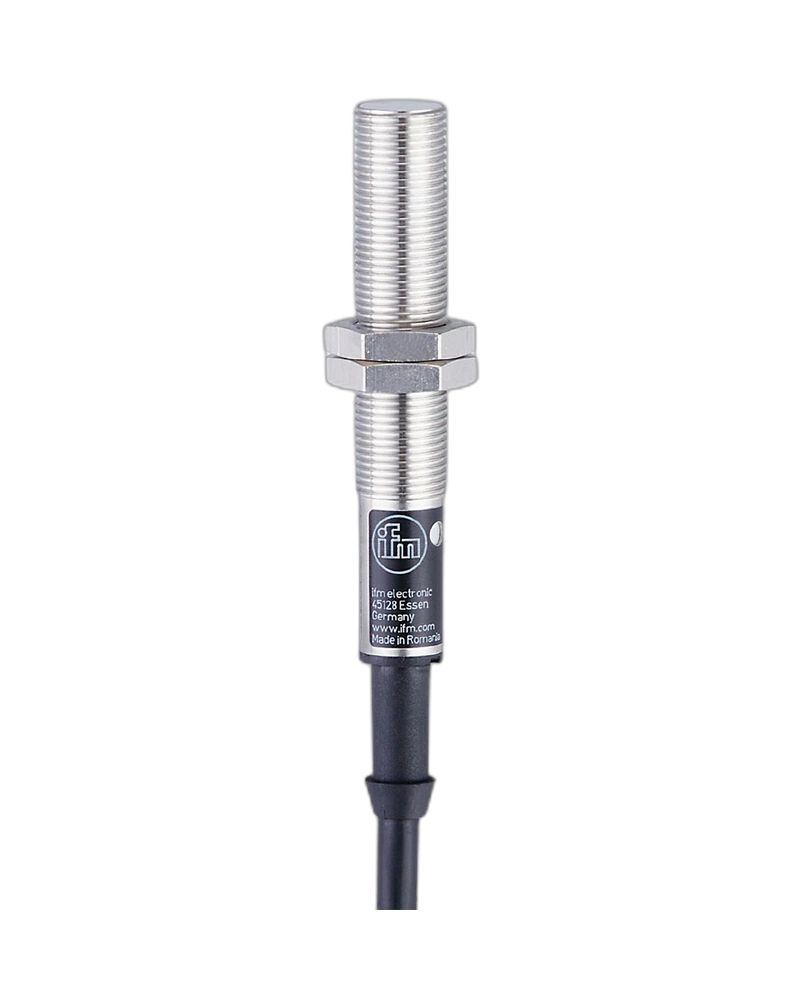

The IF0008 IFA2004-BBOW inductive sensor by IFM is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. With a 4 mm sensing range, normally-closed AC output, 20–250 V AC operating voltage, 25 Hz switching frequency and IP67 protection, it is suitable for machine position detection, conveyor systems, production equipment and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF0008 IFA2004-BBOW inductive sensor by IFM is engineered for reliable non-contact detection of metallic objects in industrial machinery, factory automation and automated production applications. Its robust metal housing, wide AC operating-voltage range and two-wire electrical design make it a dependable solution for proximity detection and machine-status monitoring.
The sensor uses inductive sensing technology to detect metallic targets without physical contact. This non-contact operating principle helps reduce mechanical wear and makes the sensor suitable for repeated detection of machine components, metal workpieces, moving parts and fixtures.
The IF0008 provides a 4 mm nominal sensing range, with a real sensing range of 4 ± 10% mm and an operating distance of 0–3.25 mm. Its non-flush mounting configuration allows the sensor to be installed in suitable machine structures where the sensing face extends beyond the surrounding mounting surface.
• IFM IF0008 inductive proximity sensor
• Model: IFA2004-BBOW
• 4 mm nominal sensing range
• Real sensing range: 4 ± 10% mm
• Operating distance: 0–3.25 mm
• Normally-closed (NC) output function
• AC two-wire electrical design
• 20–250 V AC operating voltage
• 47–63 Hz AC frequency
• 25 Hz switching frequency
• M12 × 1 threaded housing
• 71 mm overall length
• Non-flush mounting
• Brass housing with white-bronze coating
• Natural PBT active sensing face
• 2 m PVC connection cable
• IP67 protection rating
• Yellow LED switching-status indication
• -25 °C to +80 °C ambient temperature range
• Protection class II
• EN 60947-5-2 EMC compliance
• EN 55011 Class B emission compliance
• Supplied with two lock nuts
The IF0008 features a threaded M12 × 1 housing with a 71 mm overall length. Its robust metal construction makes it suitable for industrial machinery where dependable proximity sensing and mechanical durability are required.
The sensor uses a two-wire AC electrical design and operates from 20–250 V AC at 47–63 Hz. Its normally-closed switching function allows it to provide a detection signal to compatible AC industrial control circuits.
The housing is manufactured from brass with a white-bronze coating, while the active sensing face uses natural PBT. The sensor is supplied with a 2 m PVC cable with 2 × 0.5 mm² conductors, providing a practical connection solution for compatible industrial control equipment.
The IF0008 detects metallic targets using an inductive sensing principle without requiring physical contact. Its 4 mm sensing range makes it suitable for detecting the presence, absence or position of metal components in automated machinery.
Target-material correction factors should be considered when designing an application:
• Steel: 1
• Stainless steel: approximately 0.7
• Brass: approximately 0.4
• Aluminium: approximately 0.3
• Copper: approximately 0.2
The IF0008 provides a normally-closed AC output through its two-wire electrical configuration. The broad 20–250 V AC operating-voltage range allows integration into compatible AC control circuits.
The sensor supports a minimum load current of 8 mA, maximum leakage current of 2 mA and permanent switching current of up to 200 mA, according to the specified operating conditions.
The IF0008 can be integrated into Industrial Automation UAE applications requiring reliable detection of metallic objects.
Machine Position Detection
The sensor can detect the position of metallic machine components, mechanical stops, slides and moving assemblies.
Metal Component Detection
It can detect the presence or absence of metal components during manufacturing, assembly and processing operations.
Conveyor Systems
The sensor can detect metallic workpieces moving through conveyor and transfer systems and provide switching feedback to compatible control circuits.
Machine Monitoring
The IF0008 can provide proximity feedback for moving machine parts and help monitor predefined machine positions.
Production Machinery
It is suitable for automated production equipment where repeatable non-contact detection of metallic targets is required.
Factory Automation
The sensor can be incorporated into Factory Automation Components used for position sensing, metal detection and machine-control functions.
The IF0008 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions.
Its -25 °C to +80 °C ambient temperature range provides flexibility for installation in a wide range of industrial machinery and factory environments.
The robust metal housing supports dependable operation in demanding applications. A yellow LED switching-status indicator provides visual feedback during installation, commissioning and maintenance.
• Reliable non-contact detection of metallic objects
• 4 mm sensing range
• Wide 20–250 V AC operating-voltage range
• Normally-closed AC output
• Two-wire electrical design
• Robust M12 × 1 metal housing
• Non-flush mounting configuration
• 2 m PVC connection cable
• IP67 protection
• 25 Hz switching frequency
• Yellow LED switching-status indication
• Suitable for machine position monitoring
• Suitable for conveyor and production automation
• Wide -25 °C to +80 °C operating temperature range
The IF0008 IFA2004-BBOW is a dependable inductive proximity sensor designed for metal detection in industrial automation and machine-control applications. Its 4 mm sensing range, normally-closed AC output, wide operating-voltage range, M12 × 1 threaded housing and IP67 protection make it suitable for machinery, conveyor systems, production equipment and Industrial Automation Solutions in UAE.
| Specification | Details |
|---|---|
| Product Code | IF0008 |
| Manufacturer | IFM |
| Model / Part Number | IFA2004-BBOW |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | AC, 2-wire |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 20–250 V AC |
| Operating Frequency | 47–63 Hz |
| Sensing Range | 4 mm |
| Real Sensing Range (Sr) | 4 ± 10% mm |
| Operating Distance | 0–3.25 mm |
| Housing Type | Threaded |
| Thread | M12 × 1 |
| Overall Length | 71 mm |
| Mounting | Non-flush |
| Housing Material | Brass, white-bronze coated |
| Sensing Face Material | Natural PBT |
| Connection | 2 m PVC cable |
| Cable Specification | 2 × 0.5 mm² |
| Switching Frequency | 25 Hz |
| Maximum Voltage Drop | 8.5 V |
| Minimum Load Current | 8 mA |
| Maximum Leakage Current | 2 mA |
| Permanent Switching Current | 200 mA |
| Short-Time Switching Current | 900 mA, 20 ms / 0.5 Hz |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Reverse Polarity Protection | No |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Protection Rating | IP67 |
| Protection Class | II |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| Output Status Indication | 1 × Yellow LED |
| Included Accessories | 2 Lock Nuts |
| Pack Quantity | 1 Piece |
| Typical Applications | Machine position detection, metal detection, conveyor systems, production machinery and factory automation |
