The IF0007 IFA2004-ABOW inductive sensor by IFM is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machine control and factory applications. With a 4 mm sensing range, normally-open AC output, 20–250 V AC operating voltage, 25 Hz switching frequency and IP67 protection, it is well suited for precise position and presence detection in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF0007 IFA2004-ABOW inductive sensor by IFM is engineered for reliable non-contact detection of metallic objects in industrial machinery, automation systems and factory production environments. Its robust metal housing and wide AC operating voltage range make it a practical choice for applications requiring dependable proximity detection and machine position feedback.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This allows repeated detection of machine components, metal workpieces, moving parts and other conductive objects without mechanical wear associated with contact switches.
The IF0007 provides a 4 mm nominal sensing range, with a real sensing range of 4 ± 10% mm and a working distance of 0–3.25 mm. This provides reliable detection of suitable metallic targets within the specified sensing zone.
• IFM IF0007 inductive proximity sensor
• Model: IFA2004-ABOW
• 4 mm nominal sensing range
• Real sensing range: 4 ± 10% mm
• Working distance: 0–3.25 mm
• Normally-open output function
• AC two-wire electrical design
• 20–250 V AC operating voltage
• 25 Hz switching frequency
• M12 × 1 threaded housing
• 71 mm overall length
• Non-flush mounting
• Robust plated-brass metal housing
• 2 m PVC connection cable
• IP67 protection rating
• Yellow LED switching-status indication
• Ambient temperature range: -25 °C to +80 °C
• Protection class II
• EN 60947-5-2 EMC compliance
• EN 55011 Class B emission compliance
• Supplied with two lock nuts

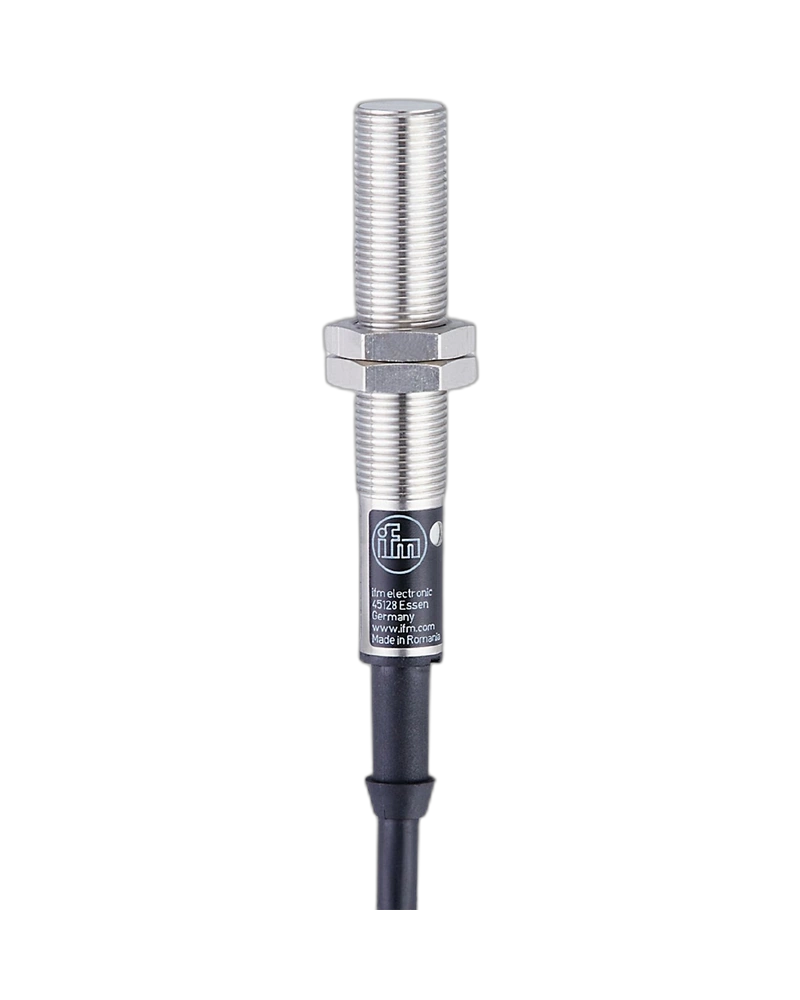

The IF0007 features a threaded M12 × 1 metal housing with an overall length of 71 mm. Its robust construction is designed for use in industrial environments where reliable sensor performance and mechanical durability are required.
The sensor is non-flush mountable, allowing installation in suitable machine structures and fixtures according to the manufacturer's mounting requirements. The housing is made from brass with a white-bronze coating, while the active face uses natural PBT material.
The sensor uses a 2-wire AC connection with a 2 m PVC cable and operates from 20–250 V AC. Its normally-open switching function allows it to provide a detection signal when a suitable metallic target enters the sensing area.
The IF0007 detects metallic objects through an inductive sensing principle without requiring physical contact with the target.
With its 4 mm sensing range, the sensor can be used to detect the presence, absence or position of metal components in automated machinery. Correction factors should be considered when detecting different metals, as sensing performance varies according to target material.
The specified correction factors are:
• Steel: 1
• Stainless steel: 0.7
• Brass: 0.4
• Aluminium: 0.3
• Copper: 0.2
The IF0007 uses a normally-open AC switching output with a two-wire connection. It is designed for applications requiring an AC proximity sensor that can operate across a broad 20–250 V AC voltage range.
The sensor supports a permanent switching current of up to 200 mA, with a short-time switching current of up to 900 mA for 20 ms at 0.5 Hz, according to the specified technical data.
The IF0007 can be integrated into Industrial Automation UAE applications where reliable metallic-object detection is required.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, stops and mechanical assemblies.
Metal Component Detection
It can identify the presence or absence of metal parts during manufacturing, assembly and material-handling processes.
Conveyor Systems
The sensor can detect metallic workpieces moving through conveyor and transfer systems, providing switching feedback to compatible control equipment.
Machine Monitoring
The IF0007 can provide proximity feedback for machine mechanisms and moving metallic components.
Production Equipment
It can be used in automated production machinery where repeatable non-contact detection of metal targets is required.
Factory Automation
The sensor can form part of Factory Automation Components used for position sensing, object detection and machine-control functions.
The IF0007 is designed for industrial environments and provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified conditions.
Its operating temperature range of -25 °C to +80 °C allows it to operate across a broad range of factory and machinery environments.
The robust brass housing with white-bronze coating provides mechanical durability for industrial installation. A yellow LED provides clear indication of the switching state, helping technicians during installation, commissioning and troubleshooting.
• Reliable non-contact detection of metallic objects
• 4 mm sensing range
• Wide 20–250 V AC operating range
• Normally-open AC output
• Robust M12 × 1 metal housing
• Non-flush mounting configuration
• 2 m PVC connection cable
• IP67 protection for industrial environments
• 25 Hz switching frequency
• Yellow LED switching-status indication
• Suitable for machine position detection
• Suitable for conveyor and production automation
• Wide -25 °C to +80 °C operating temperature range
The IF0007 IFA2004-ABOW is a dependable inductive proximity sensor for industrial metal detection and machine automation. Its 4 mm sensing range, wide AC voltage range, robust M12 × 1 housing, normally-open output and IP67 protection make it suitable for machine position detection, production equipment, conveyor systems and Industrial Automation Solutions in UAE.
| Specification | Details |
|---|---|
| Product Code | IF0007 |
| Manufacturer | IFM |
| Model / Part Number | IFA2004-ABOW |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | AC, 2-wire |
| Output Function | Normally Open (NO) |
| Operating Voltage | 20–250 V AC |
| AC Frequency | 47–63 Hz |
| Sensing Range | 4 mm |
| Real Sensing Range (Sr) | 4 ± 10% mm |
| Working Distance | 0–3.25 mm |
| Housing Type | Threaded |
| Thread Designation | M12 × 1 |
| Overall Length | 71 mm |
| Mounting | Non-flush mountable |
| Housing Material | Brass, white-bronze coated |
| Active Face Material | Natural PBT |
| Connection | 2 m PVC cable |
| Cable Size | 2 × 0.5 mm² |
| Switching Frequency | 25 Hz |
| Maximum Voltage Drop | 8.5 V |
| Minimum Load Current | 8 mA |
| Maximum Leakage Current | 2 mA |
| Permanent Switching Current | 200 mA |
| Short-Time Switching Current | 900 mA, 20 ms / 0.5 Hz |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Reverse Polarity Protection | No |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Protection Rating | IP67 |
| Protection Class | II |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| Switching Status Indication | 1 × yellow LED |
| Tightening Torque | 3.5 Nm / 5 Nm |
| Included Accessories | 2 lock nuts |
| Packaging Quantity | 1 piece |
| Typical Applications | Machine position detection, metal detection, conveyor systems, production machinery and factory automation |
