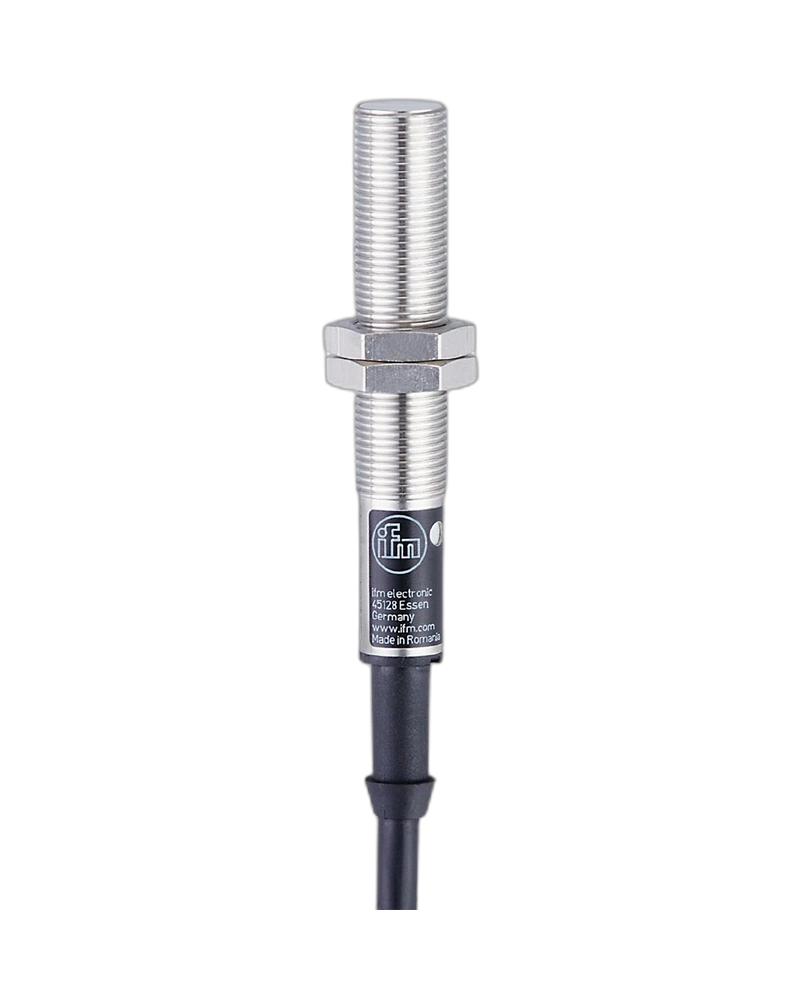

The IF0006 IFA2002-BBOW inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. With a 2 mm sensing range, normally-closed AC output, flush-mountable M12 × 1 metal housing, 20–250 V AC operation, 2 m PVC cable and IP67 protection, it provides dependable proximity detection for machinery, conveyors, production equipment and factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF0006 IFA2002-BBOW inductive sensor by IFM is engineered for reliable non-contact detection of metallic objects in industrial automation, machinery and factory production environments. Its compact M12 × 1 threaded metal housing, 2 mm sensing range and normally-closed AC output make it suitable for detecting the presence, position and movement of metallic components without physical contact. It is an excellent choice for businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and dependable Sensor Supplier UAE for industrial automation requirements.
• IFM IF0006 inductive proximity sensor
• Model: IFA2002-BBOW
• 2 mm nominal sensing range
• Real sensing range: 2 ± 10% mm
• Operating distance: 0–1.6 mm
• Normally-closed output function
• AC 2-wire electrical design
• 20–250 V AC operating voltage
• 47–63 Hz AC frequency
• 25 Hz switching frequency
• 200 mA permanent AC switching current
• 250 mA permanent current at temperatures up to 50 °C
• 900 mA short-time switching current
• M12 × 1 threaded housing
• Flush-mountable installation
• 71.5 mm overall length
• Brass housing with white-bronze coating
• PBT sensing face
• 2 m PVC cable connection
• 2 × 0.5 mm² cable
• Yellow LED switching-status indication
• IP67 protection rating
• Protection class II
• Ambient temperature range: -25 °C to +80 °C
• Supplied with 2 lock nuts
The IF0006 operates using inductive proximity sensing technology to detect metallic targets without physical contact. When a suitable metal object enters the sensor's detection zone, the sensor changes its normally-closed AC output state and provides switching feedback to the connected control circuit.
The sensor features a threaded M12 × 1 housing with a 71.5 mm overall length and is designed for flush mounting. This allows the sensor to be integrated neatly into compatible machine structures, fixtures and automation equipment.
Its 2-wire AC electrical design supports an operating voltage of 20–250 V AC at 47–63 Hz. The 2 m PVC cable provides a practical connection for industrial machinery, control circuits and factory automation installations.
The IF0006 provides a 2 mm nominal sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of up to 1.6 mm.
The sensing performance varies according to the material of the metallic target. The specified correction factors are:
• Steel: 1
• Stainless steel: 0.7
• Brass: 0.4
• Aluminium: 0.3
• Copper: 0.2
These correction factors should be considered when selecting the sensor for applications involving different metallic target materials.
The IF0006 uses a normally-closed AC output with a 2-wire electrical configuration. When the sensor detects a suitable metallic target, the output changes state and provides detection feedback to the connected circuit.
This configuration is suitable for compatible industrial applications requiring:
• Metal object detection
• Machine position detection
• Component presence sensing
• Conveyor monitoring
• Automated counting
• Machine sequence control
• Production equipment feedback
The IF0006 can be incorporated into Industrial Automation UAE applications where reliable non-contact detection of metallic objects is required.
Machine Position Detection
The sensor can detect the position of metallic machine components, fixtures, slides and moving parts during automated machine cycles.
Metal Component Detection
It can detect the presence or absence of metallic workpieces and components during manufacturing, assembly and material-handling processes.
Conveyor Monitoring
The sensor can detect metallic products or machine components passing through defined points on automated conveyor systems.
Production Machinery
It can provide proximity feedback for machine sequencing, positioning and automated production operations.
Material Handling Equipment
The sensor can support object detection in automated transfer, handling and positioning equipment.
The IF0006 can form part of Industrial Automation Components UAE and Factory Automation Components used in machine-control systems.
Its M12 × 1 threaded construction and flush-mountable design allow installation in suitable machinery and equipment. The normally-closed AC switching output can provide proximity feedback to compatible control circuits.
For Industrial Automation Suppliers UAE and industrial automation companies in UAE, the IF0006 offers a practical sensing component for machinery, production lines, conveyors and factory automation equipment.
The IF0006 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under specified operating conditions. Its ambient operating temperature range of -25 °C to +80 °C supports use across a broad range of industrial environments.
The sensor uses a brass housing with a white-bronze coating and a PBT sensing face, providing a robust construction for industrial installations.
A yellow LED provides visual switching-status indication, helping technicians monitor sensor operation during installation, commissioning and maintenance. The sensor also has protection class II.
• Reliable non-contact metal detection
• 2 mm nominal sensing range
• Normally-closed AC switching output
• Wide 20–250 V AC operating range
• M12 × 1 threaded construction
• Flush-mountable design
• Robust brass housing
• 2 m PVC cable connection
• IP67 protection
• -25 °C to +80 °C operating temperature
• Yellow LED switching indication
• Suitable for machinery and factory automation
• Practical solution for position and presence detection
The IF0006 IFA2002-BBOW is a compact and dependable IFM inductive proximity sensor designed for metallic object detection in industrial machinery and automation systems. Its 2 mm sensing range, normally-closed AC output, flush-mountable M12 × 1 housing, 20–250 V AC operation and IP67 protection make it suitable for machine control, conveyor monitoring, production equipment and factory automation applications.
| Specification | Details |
|---|---|
| Product Code | IF0006 |
| Manufacturer | IFM |
| Model / Part Number | IFA2002-BBOW |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | AC, 2-wire |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 20–250 V AC |
| AC Frequency | 47–63 Hz |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Switching Frequency | 25 Hz |
| Permanent Current Rating | 200 mA AC |
| Permanent Current at ≤50 °C | 250 mA |
| Short-Time Current Rating | 900 mA |
| Short-Time Current Duration | 20 ms / 0.5 Hz |
| Maximum Voltage Drop | 8.5 V |
| Minimum Load Current | 8 mA |
| Maximum Leakage Current | 2 mA |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Housing Type | Threaded |
| Thread | M12 × 1 |
| Overall Length | 71.5 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Sensing Face Material | PBT, natural |
| LED Window Material | PBT, natural |
| Connection | PVC cable |
| Cable Length | 2 m |
| Cable Cross-Section | 2 × 0.5 mm² |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Protection Class | II |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 932 years |
| Reverse Polarity Protection | No |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Required Protection | Fast-acting miniature fuse ≤ 2 A |
| Housing Tightening Torque | 3.5 Nm |
| Lock Nut Tightening Torque | 5 Nm |
| Weight | Approx. 115.4 g |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Machine control, metal detection, position sensing, conveyor systems, production machinery and factory automation |
