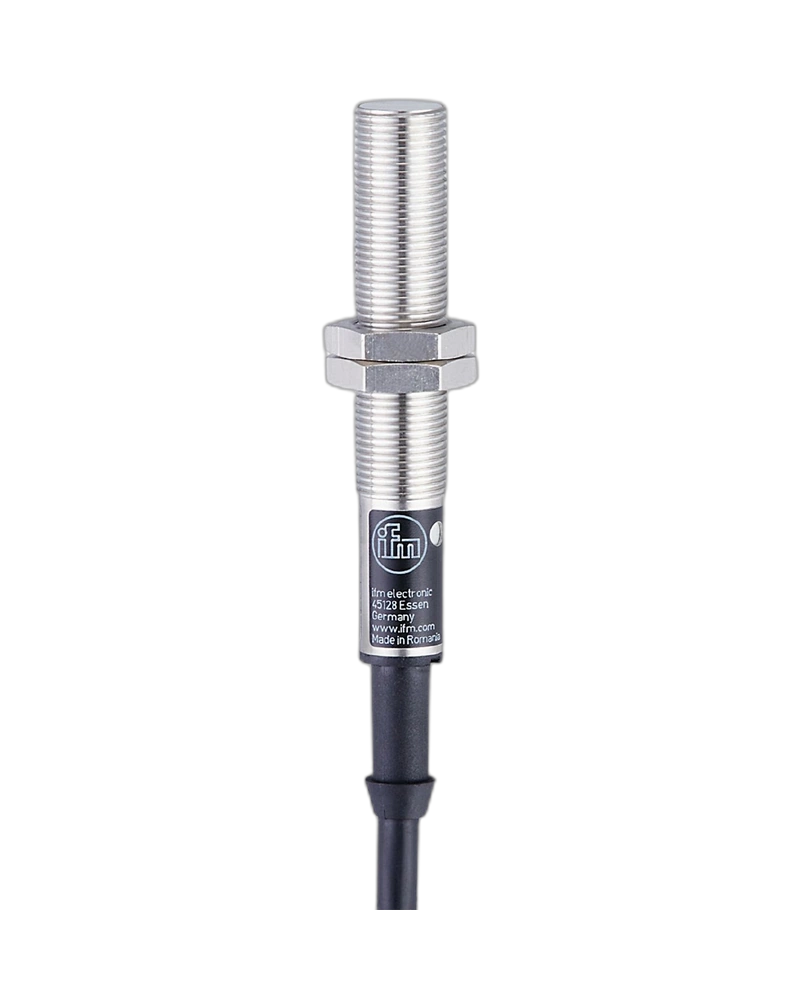

The IF0005 IFA2002-ABOW inductive sensor by IFM is engineered for reliable non-contact detection of metallic objects in industrial automation, machinery and factory production environments. Its compact M12 × 1 threaded metal housing, 2 mm sensing range and normally-open AC output make it suitable for detecting the presence, position and movement of metallic components without physical contact. It is an excellent choice for businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and dependable Sensor Supplier UAE for industrial automation applications.

Key Features

• IFM IF0005 inductive proximity sensor
• Model: IFA2002-ABOW
• 2 mm nominal sensing range
• Real sensing range: 2 ± 10% mm
• Operating distance: 0–1.6 mm
• Normally-open output function
• AC 2-wire electrical design
• 20–250 V AC operating voltage
• 47–63 Hz AC frequency
• 25 Hz switching frequency
• 200 mA permanent AC switching current
• 900 mA short-time switching current
• M12 × 1 threaded housing
• Flush-mountable installation
• 71.5 mm overall length
• Brass housing with white-bronze coating
• PBT natural sensing face
• 2 m PVC cable connection
• 2 × 0.5 mm² cable
• Yellow LED switching-status indication
• IP67 protection rating
• Protection class II
• Ambient temperature range: -25 °C to +80 °C
• Supplied with 2 lock nuts

Design & Functionality

The IF0005 operates using inductive proximity sensing technology to detect metallic targets without physical contact. When a suitable metal object enters the sensor's sensing zone, the sensor switches its normally-open AC output and provides a detection signal to the connected control circuit.

The sensor features a threaded M12 × 1 housing with a length of 71.5 mm and is designed for flush mounting. This allows the sensor to be integrated neatly into compatible machine structures, fixtures and automation equipment.

Its 2-wire AC electrical design supports an operating voltage of 20–250 V AC at 47–63 Hz. The 2 m PVC cable provides a practical connection for industrial machinery and control installations.

2 mm Sensing Performance

The IF0005 provides a 2 mm nominal sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of up to 1.6 mm.

The sensor's detection characteristics can vary according to the metallic target material. Typical correction factors are:

• Steel: 1
• Stainless steel: 0.7
• Brass: 0.4
• Aluminium: 0.3
• Copper: 0.2

These correction factors should be considered when selecting the sensor for applications involving different metallic target materials.

Normally-Open AC Output

The IF0005 uses a normally-open AC output and a 2-wire electrical configuration. When the sensor detects a suitable metallic target, the switching output changes state to provide detection feedback to the connected circuit.

This configuration is suitable for compatible applications requiring:

• Metal object detection
• Machine position detection
• Component presence sensing
• Conveyor monitoring
• Automated counting
• Machine sequence control
• Production equipment feedback

Industrial Automation Applications

The IF0005 can be incorporated into Industrial Automation UAE applications where reliable non-contact detection of metallic objects is required.

Machine Position Detection
The sensor can detect the position of metallic machine components, fixtures, slides and moving parts during automated machine cycles.

Metal Component Detection
It can detect the presence or absence of metallic workpieces and components during manufacturing and assembly processes.

Conveyor Monitoring
The sensor can detect metallic products or machine parts passing through defined points on automated conveyor systems.

Production Machinery
It can provide proximity feedback for machine sequencing, positioning and automated production operations.

Material Handling Equipment
The sensor can support object detection in automated transfer, handling and positioning equipment.

Industrial Automation Integration

The IF0005 can form part of Industrial Automation Components UAE and Factory Automation Components used in machine-control systems.

Its M12 × 1 threaded construction and flush-mountable design make it suitable for integration into compatible machinery and equipment. The AC switching output can provide proximity feedback to suitable control circuits.

For Industrial Automation Suppliers UAE and industrial automation companies in UAE, the IF0005 offers a practical sensing component for machinery, production lines, conveyors and factory automation equipment.

Protection & Reliability

The IF0005 has an IP67 protection rating, helping protect the sensor against dust and water ingress under specified conditions. Its operating temperature range of -25 °C to +80 °C supports use across a broad range of industrial environments.

The sensor uses a brass housing with a white-bronze coating and a PBT sensing face. This robust construction is suitable for industrial installations where reliable proximity detection is required.

A yellow LED provides visual indication of the switching status, helping technicians monitor sensor operation during installation, commissioning and maintenance.

Operational Advantages

• Reliable non-contact metal detection
• 2 mm nominal sensing range
• Normally-open AC switching output
• Wide 20–250 V AC operating range
• M12 × 1 threaded construction
• Flush-mountable design
• Robust brass housing
• 2 m PVC cable connection
• IP67 protection
• -25 °C to +80 °C operating temperature
• Yellow LED switching indication
• Suitable for machinery and factory automation
• Practical solution for position and presence detection

The IF0005 IFA2002-ABOW is a compact and dependable IFM inductive proximity sensor designed for metallic object detection in industrial machinery and automation systems. Its 2 mm sensing range, normally-open AC output, flush-mountable M12 × 1 housing, 20–250 V AC operation and IP67 protection make it suitable for machine control, conveyor monitoring, production equipment and factory automation applications.
