The IF0003 IF-2004-ABOW inductive sensor by IFM is designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. With a 4 mm sensing range, normally-open AC output, non-flush M12 × 1 housing, 20–250 V AC operation, 2 m PVC cable and IP67 protection, it provides dependable proximity detection for machinery, conveyors, material handling and factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF0003 IF-2004-ABOW inductive sensor by IFM is engineered for reliable non-contact detection of metallic objects in industrial automation, machinery and factory production environments. Its 4 mm sensing range, normally-open AC output and robust M12 × 1 threaded construction make it a practical solution for machine position detection, metal component sensing and automated control applications. It is an excellent choice for businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and reliable Sensor Supplier UAE for industrial automation requirements.
• IFM IF0003 inductive proximity sensor
• Model: IF-2004-ABOW
• 4 mm nominal sensing range
• Real sensing range: 4 ± 10% mm
• Operating distance: 0–3.25 mm
• Normally-open output function
• AC 2-wire electrical design
• 20–250 V AC operating voltage
• 25 Hz switching frequency
• Up to 200 mA permanent AC switching current
• M12 × 1 threaded housing
• Non-flush mountable installation
• 71.5 mm overall housing length
• PBT plastic housing
• 2 m PVC cable connection
• Yellow LED switching-status indication
• IP67 protection rating
• Ambient temperature range: -25 °C to +80 °C
• Protection class II
• Supplied with 2 lock nuts
The IF0003 uses inductive proximity sensing technology to detect metallic targets without physical contact. When a suitable metal object enters the sensor's sensing zone, the sensor switches its normally-open AC output, providing a detection signal for compatible electrical control systems.

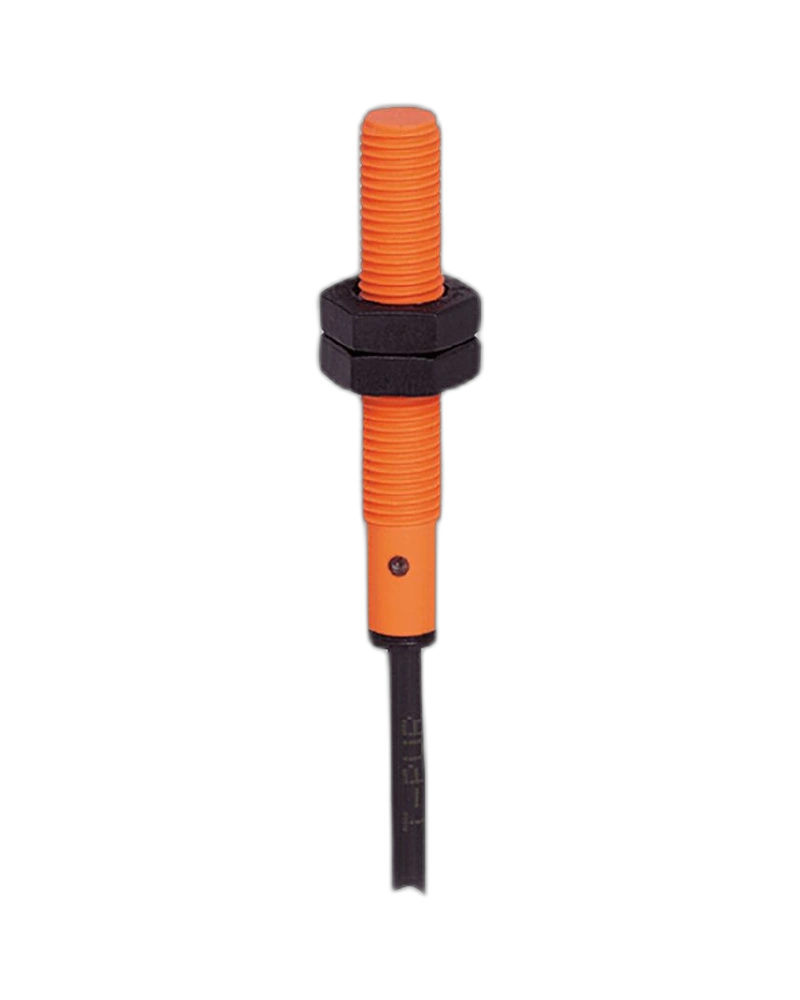

The sensor features an M12 × 1 threaded PBT housing with a 71.5 mm length and is designed for non-flush mounting. This construction makes it suitable for installation on machinery, fixtures, conveyor systems and automated equipment where reliable metal detection is required.
Its 2-wire AC electrical design and 20–250 V AC operating range allow the sensor to be integrated into compatible industrial control circuits. The 2 m PVC cable provides a practical connection for machine and automation installations.
The IF0003 provides a 4 mm nominal sensing range, with a real sensing range of 4 ± 10% mm and an operating distance of up to 3.25 mm.
The actual detection performance can vary depending on the target material. Typical correction factors are approximately:
• Steel: 1
• Stainless steel: 0.7
• Brass: 0.4
• Aluminium: 0.3
• Copper: 0.2
These correction factors should be considered when selecting the sensor for applications involving different metallic target materials.
The IF0003 features a normally-open AC output. When a suitable metallic target is detected, the output switches to provide a signal to the connected control circuit.
This configuration can be used for compatible industrial applications requiring:
• Metal object detection
• Machine position sensing
• Component presence detection
• Conveyor monitoring
• Automated counting
• Machine sequence control
• Production equipment feedback
The IF0003 can be integrated into Industrial Automation UAE applications where dependable non-contact metal detection is required.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving parts.
Metal Component Detection
It can identify the presence or absence of metallic workpieces during manufacturing, assembly and material-handling processes.
Conveyor Systems
The sensor can detect metallic products or machine components moving through defined points on automated conveyor systems.
Production Machinery
It can provide proximity feedback for machine sequencing, component positioning and automated production operations.
Material Handling
The sensor can be used for detecting metallic objects in automated transfer and handling equipment.
The IF0003 can form part of Industrial Automation Components UAE and Factory Automation Components used in machine-control systems.
Its compact threaded construction allows installation on suitable machine structures, while its AC output provides switching feedback to compatible industrial control circuits.
For Industrial Automation Suppliers UAE and Industrial Automation companies in UAE, the sensor can be used as a dependable proximity detection component in machinery, production lines and factory automation equipment.
The sensor is rated IP67, providing protection against dust ingress and water exposure under specified conditions. Its operating temperature range of -25 °C to +80 °C supports use across a broad range of industrial environments.
The PBT housing provides a lightweight and durable construction suitable for industrial sensor installations. A yellow LED provides visual switching-status indication, helping technicians identify sensor operation during installation and maintenance.
• Reliable non-contact metal detection
• 4 mm nominal sensing range
• Normally-open AC switching output
• Wide 20–250 V AC operating range
• M12 × 1 threaded construction
• Non-flush mounting design
• 2 m PVC cable connection
• IP67 protection
• -25 °C to +80 °C operating temperature
• Yellow LED switching indication
• Suitable for machinery and factory automation
• Practical solution for position and presence detection
The IF0003 IF-2004-ABOW is a dependable IFM inductive proximity sensor for detecting metallic objects in industrial machinery and automation systems. Its 4 mm sensing range, normally-open AC output, M12 × 1 threaded PBT housing, non-flush installation and IP67 protection make it suitable for machine control, conveyor monitoring, production equipment and factory automation applications.
| Specification | Details |
|---|---|
| Product Code | IF0003 |
| Manufacturer | IFM |
| Model / Part Number | IF-2004-ABOW |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | AC, 2-wire |
| Output Function | Normally Open (NO) |
| Operating Voltage | 20–250 V AC |
| AC Frequency | 47–63 Hz |
| Sensing Range | 4 mm |
| Real Sensing Range (Sr) | 4 ± 10% mm |
| Operating Distance | 0–3.25 mm |
| Switching Frequency | 25 Hz |
| Permanent Current Rating | 200 mA AC |
| Short-Time Current Rating | 900 mA (20 ms / 0.5 Hz) |
| Maximum Voltage Drop | 8.5 V |
| Minimum Load Current | 8 mA |
| Maximum Leakage Current | 2 mA |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Housing Type | Threaded |
| Thread | M12 × 1 |
| Housing Length | 71.5 mm |
| Mounting | Non-flush mountable |
| Housing Material | PBT |
| Connection | PVC cable |
| Cable Length | 2 m |
| Cable Specification | 2 × 0.5 mm² |
| Output Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Protection Class | II |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| Reverse Polarity Protection | No |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Required Protection | Fast-acting miniature fuse ≤ 2 A |
| Included Accessories | 2 lock nuts |
| Typical Applications | Machine control, metal detection, position sensing, conveyors, production machinery and factory automation |
