The IF0002 IF-2002-BBOW inductive sensor by IFM is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machinery. It provides a 2 mm sensing range, normally closed AC output, 20–250 V AC operation, 25 Hz switching frequency, flush mounting and IP67 protection, making it suitable for machine position detection, metal component sensing and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF0002 IF-2002-BBOW inductive sensor by IFM is engineered for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. Its compact M12 × 1 threaded construction and flush-mountable design make it suitable for installations where accurate metal detection and practical mounting are required. The sensor is an excellent choice for businesses looking for Industrial Sensors, Proximity Sensors, and dependable Industrial Sensors Supplier UAE solutions.
• IFM IF0002 inductive proximity sensor
• Model: IF-2002-BBOW
• 2 mm nominal sensing range
• Real sensing range: 2 ± 10% mm
• Operating distance: 0–1.6 mm
• AC electrical design
• Normally-closed (NC) output function
• 20–250 V AC operating voltage
• 47–63 Hz operating frequency
• 25 Hz switching frequency
• 2-wire connection
• M12 × 1 plastic threaded housing
• Flush-mountable installation
• 71.5 mm overall length
• 2 m PVC cable
• PBT housing material
• Yellow LED output-status indication
• IP67 protection rating
• -25 °C to +80 °C ambient temperature range
• Protection class II
• EN 60947-5-2 EMC compliance
• Suitable for industrial metal detection and machine automation
The IF0002 uses inductive proximity sensing technology to detect metallic objects without physical contact. When a suitable metal target enters the sensor's detection zone, the sensor changes its normally-closed AC output state. This non-contact operating principle makes it suitable for repeated detection of machine parts, metal components, workpieces and moving objects in automated equipment.

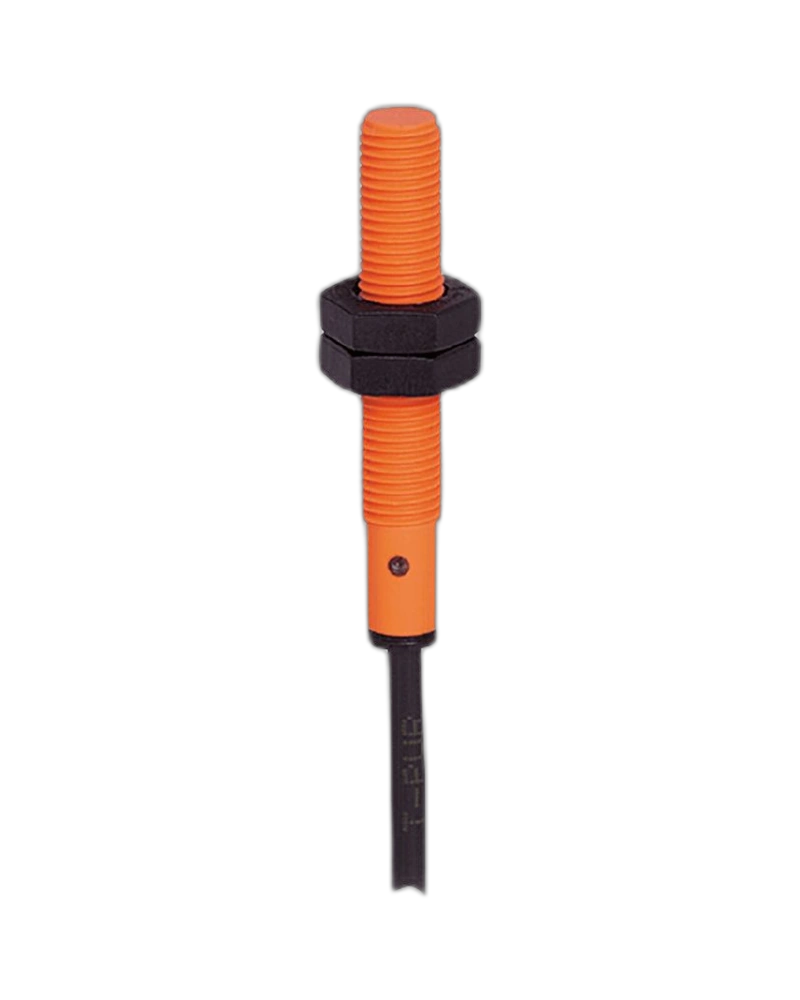

The sensor features an M12 × 1 plastic threaded housing with a length of approximately 71.5 mm. Its flush-mountable construction allows it to be integrated neatly into suitable machine structures while maintaining a compact installation footprint.
The IF0002 provides a 2 mm nominal sensing range, with a specified real sensing range of 2 ± 10% mm and an operating distance of 0–1.6 mm.
The correction factor varies according to the target material. Steel has a correction factor of 1, while stainless steel is approximately 0.7, brass approximately 0.4, aluminium approximately 0.3 and copper approximately 0.2. These values should be considered when selecting the sensor for applications involving different metallic materials.
The sensor uses an AC electrical design with a normally-closed output and operates from 20–250 V AC at 47–63 Hz. Its two-wire configuration provides a straightforward connection for compatible industrial control and switching circuits.
The IF0002 supports a switching frequency of up to 25 Hz, making it suitable for proximity detection tasks involving relatively repetitive machine movements and material-handling operations.
The IF0002 can be integrated into Industrial Automation UAE applications where dependable detection of metallic objects is required.
Machine Position Detection
The sensor can detect the position of metallic machine components, mechanical parts and moving assemblies.
Metal Object Detection
It can identify the presence or absence of metallic workpieces during automated manufacturing and assembly processes.
Conveyor Systems
The sensor can provide proximity feedback when metallic components pass a defined detection point on a conveyor.
Machine Control
Its normally-closed switching function can be used in compatible machine-control circuits for position and presence monitoring.
Material Handling
The sensor can support automated material-handling equipment by detecting metallic components and machine parts.
Factory Automation
It can be incorporated into suitable Factory Automation Components and Industrial Automation Components UAE for machine monitoring and automated process control.
The IF0002 has an IP67 protection rating, providing protection against dust ingress and water exposure under specified conditions. Its operating temperature range of -25 °C to +80 °C allows use across a broad range of industrial environments.
The sensor is manufactured with a PBT housing and includes a yellow LED for output-status indication. The robust construction and protected design make it suitable for general industrial proximity-sensing applications.
The IF0002 is supplied with a 2 m PVC cable with 2 × 0.5 mm² conductors, providing a practical connection arrangement for compatible installations.
A yellow LED provides visual indication of the switching status, helping technicians during installation, commissioning and maintenance.
• Reliable non-contact detection of metallic objects
• 2 mm sensing range for compact detection applications
• Flush-mountable M12 × 1 construction
• Normally-closed AC output
• Wide 20–250 V AC operating voltage range
• 2-wire connection for compatible circuits
• 2 m PVC cable supplied
• IP67 protection for demanding industrial environments
• -25 °C to +80 °C ambient temperature range
• Yellow LED output-status indication
• Suitable for machinery, conveyors and factory automation
The IF0002 IF-2002-BBOW is a practical IFM inductive proximity sensor for reliable metal detection in industrial machinery and automation systems. Its 2 mm sensing range, flush-mountable M12 × 1 housing, normally-closed AC output, 2 m cable and IP67 protection make it suitable for machine position detection, component presence monitoring, conveyor applications and factory automation.
For companies seeking Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Proximity Sensors Supplier UAE and Automation Products Supplier UAE, the IF0002 provides a dependable sensing solution for compatible industrial automation requirements.
| Specification | Details |
|---|---|
| Product Code | IF0002 |
| Manufacturer | IFM |
| Model / Part Number | IF-2002-BBOW |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | AC |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 20–250 V AC |
| Frequency | 47–63 Hz |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Switching Frequency | 25 Hz |
| Permanent Current Rating | 200 mA AC; 250 mA AC up to 50 °C |
| Short-Time Current Rating | 0.9 A for 20 ms / 0.5 Hz |
| Maximum Voltage Drop | < 8.5 V |
| Minimum Load Current | 8 mA |
| Maximum Leakage Current | < 2 mA |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Reverse-Polarity Protection | No |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | Approx. 0.7 |
| Correction Factor – Brass | Approx. 0.4 |
| Correction Factor – Aluminium | Approx. 0.3 |
| Correction Factor – Copper | Approx. 0.2 |
| Housing Type | Threaded |
| Thread | M12 × 1 |
| Housing Material | PBT |
| Mounting | Flush Mountable |
| Overall Length | Approx. 71.5 mm |
| Connection | 2 m PVC Cable |
| Cable Specification | 2 × 0.5 mm² |
| Connection Type | 2-wire |
| Output Status Indication | Yellow LED |
| Protection Rating | IP67 |
| Protection Class | II |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| MTTF | Approx. 932 years |
| Accessories Supplied | 2 Lock Nuts |
| Typical Applications | Metal detection, machine automation, position sensing, conveyor systems and factory automation |
