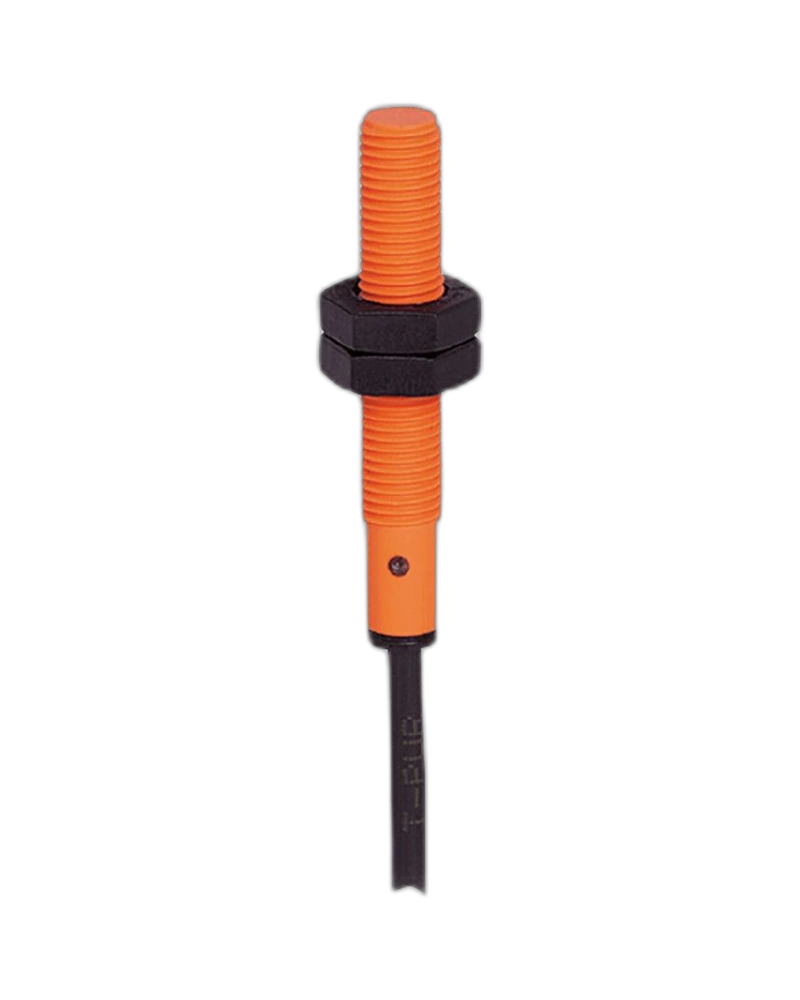

The IF0001 IF-2002-ABOW inductive sensor by IFM is engineered for precise and reliable non-contact detection of metallic objects in industrial machinery, production equipment and factory automation systems. Its compact M12 × 1 threaded construction and flush-mountable design make it suitable for applications where dependable metal detection and straightforward machine integration are required.

The sensor operates using an inductive proximity sensing principle, detecting suitable metallic targets without requiring physical contact. This makes it useful for monitoring the presence, position or movement of metal machine components, workpieces and other conductive targets during automated processes.

The IF0001 provides a 2 mm nominal sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.6 mm. The flush-mountable configuration allows the sensor to be installed neatly within compatible metal machine structures.

Key Features

IFM IF0001 inductive proximity sensor

Model: IF-2002-ABOW

2 mm nominal sensing range

Real sensing range: 2 ± 10% mm

Operating distance: 0–1.6 mm

AC two-wire electrical design

Normally-open switching function

20–250 V AC operating voltage

47–63 Hz operating frequency

25 Hz switching frequency

M12 × 1 threaded housing

71.5 mm overall housing length

Flush-mountable installation

2 m PVC cable connection

IP67 protection rating

PBT housing material

Yellow LED output-status indication

200 mA permanent switching current

Up to 0.9 A short-time switching current

Reverse-polarity protection not provided

Short-circuit protection not provided

Overload protection not provided

Ambient temperature range: -25 °C to +80 °C

Design & Functionality

The IF0001 uses an M12 × 1 threaded PBT housing with a compact cylindrical construction suitable for industrial machine installation. Its flush-mountable design allows the sensor to be integrated into suitable metal structures while maintaining a practical sensing position.

The sensor uses two-wire AC technology and provides a normally-open switching output. It operates across a wide 20–250 V AC supply range at 47–63 Hz, making it suitable for compatible AC-powered industrial control applications.

A 2 m PVC cable provides the electrical connection, while the sensor's IP67 protection rating helps protect against dust and water ingress under specified conditions. The yellow LED provides output-status indication for easier installation, commissioning and maintenance.

Inductive Metal Detection

The IF0001 detects metallic targets without direct physical contact. When a suitable metal object enters the sensing area, the sensor changes its normally-open switching state.

This non-contact detection method helps reduce mechanical wear associated with conventional contact switches and is suitable for repetitive machine-monitoring tasks.

The sensor can detect different metal materials with varying correction factors. The typical correction factors are 1 for steel, approximately 0.7 for stainless steel, 0.4 for brass, 0.3 for aluminium and 0.2 for copper. These values should be considered when determining the actual detection distance for specific target materials.

Flush-Mountable M12 Design

The IF0001 features an M12 × 1 threaded housing with an overall length of approximately 71.5 mm. Its flush-mountable construction allows it to be installed in suitable machine structures without requiring a protruding sensing face.

This design is useful for machine builders and maintenance teams working with limited installation space or applications where a compact cylindrical proximity sensor is preferred.

AC Two-Wire Normally-Open Output

The sensor uses a two-wire AC electrical design with a normally-open output function. Its wide operating voltage range of 20–250 V AC makes it suitable for compatible AC control and detection circuits.

The 25 Hz switching frequency supports repetitive detection tasks where moderate switching speed is sufficient. The sensor provides a permanent switching current rating of 200 mA, with a short-time switching capability of up to 0.9 A for 20 ms at 0.5 Hz, according to the available technical documentation.

Industrial Automation Applications

The IF0001 can be integrated into a wide range of Industrial Automation UAE applications where non-contact detection of metallic objects is required.

Machine Position Detection

The sensor can detect the position of metallic machine components, slides, stops, fixtures and moving mechanical parts.

Metal Object Detection

It can detect the presence or absence of metallic workpieces and components during automated manufacturing and assembly operations.

Conveyor Monitoring

The sensor can provide detection signals when metallic components pass a defined sensing point on conveyor equipment.

Machine Status Feedback

The IF0001 can be used to monitor the position of mechanical components and provide feedback to compatible control circuits.

Counting Applications

It can detect individual metallic objects passing through a sensing point for basic counting and production-monitoring functions.

Assembly Machinery

The sensor can confirm the presence or position of metallic components during automated assembly processes.

Industrial Automation Integration

The IF0001 can form part of Industrial Automation Systems in UAE, providing reliable proximity feedback for compatible AC control circuits.

It can be incorporated alongside other Industrial Automation Components UAE, including sensors, switches, controllers, actuators and machine-control equipment.

For Industrial Automation Suppliers UAE and machine builders, the sensor provides a straightforward solution for non-contact metallic object detection in suitable industrial equipment.

Protection & Operating Conditions

The IF0001 has an IP67 protection rating, helping protect the sensor against dust and temporary water exposure under the specified test conditions.

Its specified ambient operating temperature range is -25 °C to +80 °C, allowing use across a broad range of industrial machinery and factory environments.

The sensor has Protection Class II and complies with the relevant EMC requirements specified in its technical documentation.

Operational Advantages

• Reliable non-contact detection of metallic objects
• 2 mm nominal sensing range
• Flush-mountable installation
• M12 × 1 threaded construction
• Wide 20–250 V AC operating voltage
• Two-wire AC technology
• Normally-open switching function
• 25 Hz switching frequency
• 2 m PVC cable connection
• IP67 protection
• -25 °C to +80 °C ambient temperature range
• Yellow LED output-status indication
• Suitable for machine position and presence detection
• Suitable for industrial automation and factory machinery

The IF0001 IF-2002-ABOW is a dependable IFM inductive sensor for non-contact metallic object detection. Its 2 mm sensing range, flush-mountable M12 × 1 design, two-wire AC normally-open output, wide AC operating voltage range and IP67 protection make it suitable for machine position detection, component sensing, conveyor monitoring and compatible industrial automation applications.
