The IES247 IEB2006-ARKG/V4A/2M/PUR inductive sensor by IFM is a robust M8 × 1 proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and harsh operating environments. With a 6 mm sensing range, stainless-steel housing, 2 m PUR cable, 800 Hz switching frequency and IP69K protection, it provides dependable performance for industrial, mobile, cooling and lubrication applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES247 inductive sensor is engineered for reliable non-contact detection of metallic objects in demanding industrial applications. Its M8 × 1 threaded housing provides a compact solution for machine automation, factory equipment and mobile machinery where dependable object and position detection is required.
The sensor features a 6 mm sensing range, normally-open DC output and a 2 m PUR connection cable. Its stainless-steel 316L / 1.4404 housing and high protection rating make it suitable for harsh industrial environments, including applications involving cooling and lubricating fluids.
For businesses looking for an Industrial Sensors Supplier UAE, the IES247 offers a durable sensing solution for machine position monitoring, metallic object detection, factory automation and mobile equipment.
Compact M8 × 1 threaded inductive sensor design
6 mm sensing range for reliable metallic object detection
Non-flush mounting design for flexible machine installation
Normally-open DC switching output
Two-wire electrical configuration
2 m PUR connection cable
Robust stainless-steel 316L / 1.4404 housing
Yellow LED for clear switching-status indication
IP65, IP66, IP67, IP68 and IP69K protection
Wide -40°C to +85°C ambient operating temperature range
800 Hz switching frequency for fast detection
Short 27.5 mm housing for compact installation
Suitable for industrial, mobile, cooling and lubricating applications
Designed for harsh industrial and mobile operating conditions

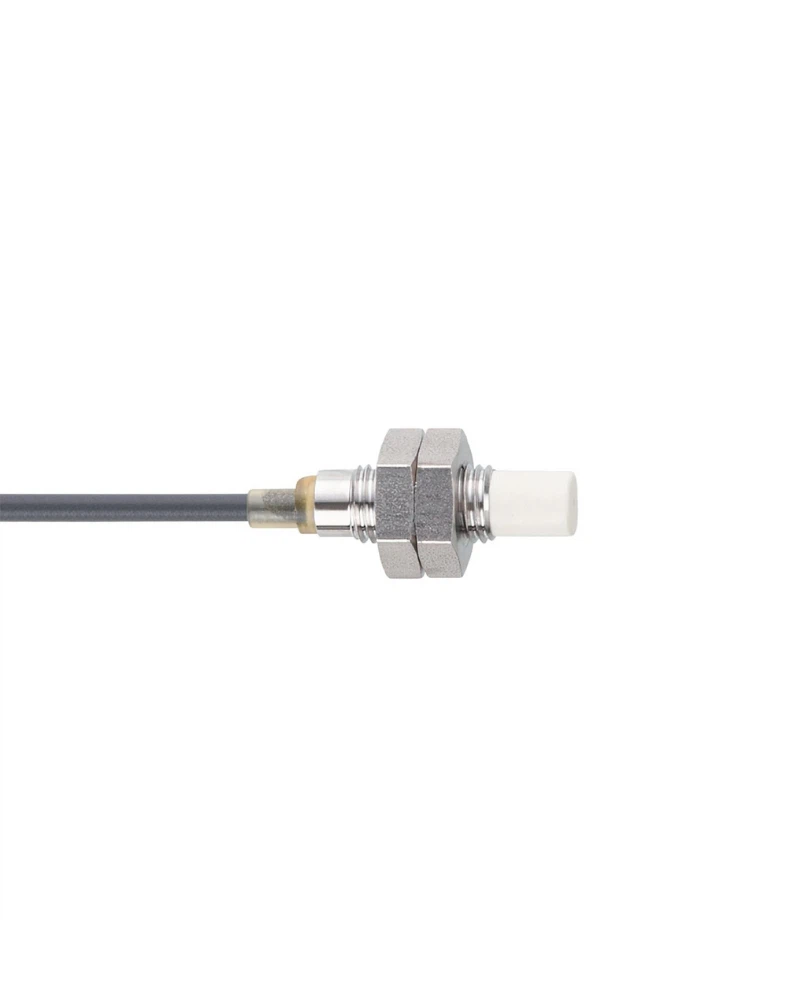

The IES247 uses an M8 × 1 threaded cylindrical housing with a length of 27.5 mm. Unlike flush-mountable sensors, this model is designed for non-flush mounting, allowing the sensing face to extend beyond the mounting surface when installed. The housing is manufactured from stainless steel 316L / 1.4404, providing strong resistance to demanding industrial operating conditions.
The sensor uses an LCP sensing face and PEI LED window, while the supplied lock nuts are also manufactured from stainless steel 316L / 1.4404. This construction provides a robust package for industrial machinery and harsh environments.
The IES247 provides a nominal sensing range of 6 mm, with a real sensing range of 6 mm ±10%. Its specified operating distance is 0 to 4.86 mm.
The larger sensing range allows reliable detection of metallic targets while maintaining practical installation flexibility. The sensor's correction factor varies according to target material, with steel used as the reference material.
The IES247 operates from 10 to 30 V DC and uses a normally-open switching output. The permanent current rating of the switching output is 100 mA, while the minimum load current is 2 mA.
The sensor provides a switching frequency of up to 800 Hz, making it suitable for automated machinery requiring frequent and repeatable metallic object detection. Reverse-polarity, short-circuit and overload protection help support reliable integration into industrial control systems.
The IES247 is supplied with a 2 m PUR cable with a diameter of approximately 2.9 mm. The cable contains two 0.14 mm² conductors and provides a direct connection solution for industrial control and automation equipment.
The PUR cable construction is well suited to industrial machinery where durability and flexibility are important considerations.
The IES247 is designed for harsh operating conditions and carries IP65, IP66, IP67, IP68 and IP69K protection ratings. It operates across a wide ambient temperature range of -40°C to +85°C.
Its high protection rating and stainless-steel construction make it suitable for applications exposed to dust, moisture, cleaning processes and other demanding industrial conditions.
IFM specifically identifies the IES247 for industrial, mobile, cooling and lubricating applications, as well as factory automation and harsh mobile applications.
The IES247 is suitable for metallic object detection, machine position monitoring, automated production equipment, factory automation systems and mobile machinery.
Its 6 mm sensing range provides additional installation tolerance compared with shorter-range compact sensors. The 800 Hz switching frequency supports rapid detection during automated machine cycles.
Typical applications include monitoring the presence of metallic components, detecting machine positions, counting metal parts, monitoring moving machine elements and detecting components in automated production processes.
Reliable non-contact detection of metallic objects
6 mm sensing range for flexible target positioning
Compact M8 × 1 construction
Stainless-steel 316L housing for demanding environments
High IP65 to IP69K protection
Wide -40°C to +85°C operating temperature range
Fast 800 Hz switching frequency
2 m PUR cable supplied for convenient installation
Suitable for mobile machinery
Suitable for cooling and lubrication applications
Reliable operation in harsh industrial environments
The IES247 IEB2006-ARKG/V4A/2M/PUR is a durable Proximity Sensor designed for industrial automation and demanding machine applications. Its 6 mm sensing range, stainless-steel construction, high environmental protection and fast switching performance make it a suitable choice for businesses seeking reliable Industrial Automation Components UAE and factory automation sensing solutions.
| Specification | Details |
|---|---|
| Product Type | Inductive sensor |
| Manufacturer | IFM |
| Product Code | IES247 |
| Model | IEB2006-ARKG/V4A/2M/PUR |
| Sensor Type | Inductive proximity sensor |
| Sensing Range | 6 mm |
| Real Sensing Range | 6 mm ±10% |
| Operating Distance | 0 to 4.86 mm |
| Mounting | Non-flush mountable |
| Housing Thread | M8 × 1 |
| Housing Length | 27.5 mm |
| Electrical Design | DC |
| Output Function | Normally open |
| Electrical Configuration | 2-wire |
| Operating Voltage | 10 to 30 V DC |
| Switching Frequency | 800 Hz |
| Permanent Current Rating | 100 mA |
| Minimum Load Current | 2 mA |
| Maximum Leakage Current | 0.5 mA |
| Maximum Voltage Drop | 2.5 V |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Status Indicator | Yellow LED |
| Cable Length | 2 m |
| Cable Type | PUR |
| Cable Diameter | Approx. 2.9 mm |
| Cable Conductors | 2 × 0.14 mm² |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP |
| LED Window Material | PEI |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Ambient Temperature | -40°C to +85°C |
| Switching Principle | Non-contact inductive detection |
| Target Material | Metallic objects |
| Application | Industrial applications / factory automation |
| Additional Applications | Mobile machinery, cooling and lubrication |
| Supplied Accessories | 2 stainless-steel lock nuts |
| Weight | Approx. 35 g |
