The IES246 IEB2003BARKG/V4A/2M/PUR inductive sensor by IFM is a compact M8 × 1 proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, mobile machinery, cooling and lubrication applications. With a 3 mm sensing range, normally-open DC output, 2 m PUR cable and robust stainless-steel construction, it provides dependable detection in demanding industrial environments
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES246 inductive sensor is engineered for reliable non-contact detection of metallic objects in industrial automation and machine applications. Its compact M8 × 1 threaded construction and flush-mountable design make it suitable for installations where space is limited while maintaining reliable sensing performance.
The sensor provides a 3 mm sensing range and normally-open DC switching output. Its stainless-steel housing and extensive IP protection make it particularly suitable for harsh industrial, mobile, cooling and lubrication environments. IFM specifically identifies the IES246 for industrial, mobile, cooling and lubricating applications.
For businesses seeking an Industrial Sensors Supplier UAE, the IES246 offers a durable and versatile sensing solution for machine position monitoring, object detection and factory automation equipment.
Compact M8 × 1 threaded inductive sensor design
3 mm sensing range for reliable metallic object detection
Flush-mountable construction for compact machine installation
Normally-open DC switching output
Two-wire electrical design
2 m PUR connection cable
Robust stainless-steel 1.4404 / 316L housing
Yellow LED output-status indication
IP65, IP66, IP67, IP68 and IP69K protection
Wide -40°C to +85°C ambient operating temperature range
800 Hz switching frequency for fast detection
Suitable for industrial, mobile, cooling and lubrication applications
Designed for demanding industrial and harsh operating environments

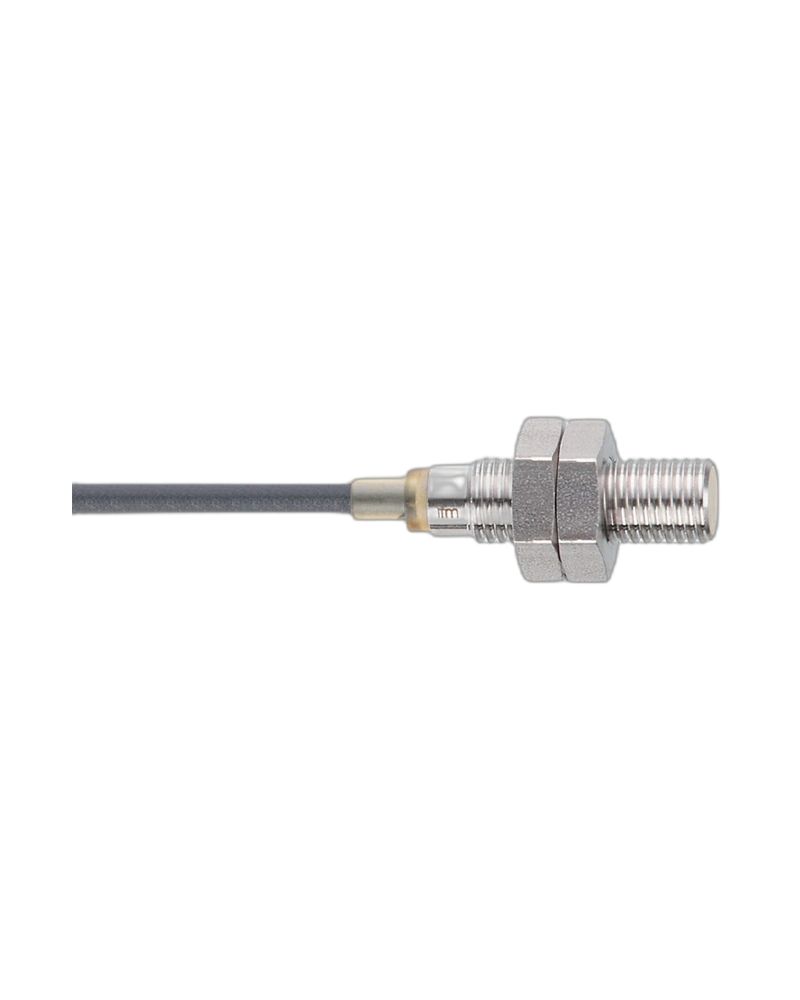

The IES246 features an M8 × 1 threaded housing with a compact 27.5 mm overall length and is designed for flush mounting. The housing is manufactured from stainless steel 1.4404 / 316L, providing excellent mechanical durability for demanding industrial applications. The active face is made from LCP, while the LED window uses PEI material.
Its flush-mounting capability allows the sensor to be installed neatly into metal machine structures while reducing the risk of mechanical damage. The 3 mm sensing range provides dependable detection of metallic targets without requiring physical contact.
The IES246 has a nominal sensing range of 3 mm and a real sensing range of 3 mm ±10%. Its operating distance is specified up to 2.43 mm. The sensor is designed to provide reliable detection with low sensor tolerances, supporting stable operation in industrial automation applications.
The correction factor depends on the target material. Steel is used as the reference material, while stainless steel, brass, aluminium and copper have lower correction factors. This allows the sensor to be applied to a range of metallic detection tasks with appropriate consideration of the target material.
The IES246 operates on 10 to 30 V DC and uses a normally-open switching output. The sensor has a permanent switching output current rating of 100 mA and a switching frequency of up to 800 Hz.
Reverse-polarity protection, short-circuit protection and overload protection help provide reliable operation when the sensor is integrated into industrial control systems.
The IES246 is supplied with a 2 m PUR cable. The cable has a diameter of approximately 2.9 mm and uses two 0.14 mm² conductors. PUR cable construction provides a practical connection solution for industrial machinery and applications where flexibility and resistance to industrial operating conditions are important.
The IES246 is designed for demanding environments and provides IP65, IP66, IP67, IP68 and IP69K protection. Its specified ambient operating temperature range of -40°C to +85°C enables flexible use across a wide range of industrial conditions.
The high protection rating makes the sensor suitable for applications involving moisture, dust, regular cleaning and harsh operating conditions. IFM also highlights its suitability for industrial, mobile, cooling and lubricating applications.
The IES246 is suitable for metallic object detection, machine position monitoring, automated equipment, factory automation, mobile machinery and cooling or lubrication systems.
Its compact M8 construction makes it suitable for confined installation areas, while the 3 mm sensing range and 800 Hz switching frequency support fast and repeatable detection during automated machine cycles.
The sensor can be used for monitoring the presence or position of metal components, detecting machine end positions, counting metallic parts and monitoring moving components in industrial automation equipment.
Reliable non-contact detection of metallic objects
Compact M8 × 1 construction for space-saving installation
Flush mounting for integrated machine installation
Stainless-steel housing for demanding industrial environments
Wide operating temperature range from -40°C to +85°C
High IP protection for harsh and wet environments
Fast 800 Hz switching frequency
2 m PUR cable supplied for convenient installation
Suitable for industrial and mobile machinery
Suitable for cooling and lubrication applications
The IES246 IEB2003BARKG/V4A/2M/PUR is a robust Proximity Sensor for industrial automation applications, combining compact installation, reliable metallic object detection, stainless-steel construction and high environmental protection. It is a strong choice for businesses looking for Industrial Automation Components UAE and dependable sensing technology for factory automation systems.
| Specification | Details |
|---|---|
| Product Type | Inductive sensor |
| Manufacturer | IFM |
| Product Code | IES246 |
| Model | IEB2003BARKG/V4A/2M/PUR |
| Sensor Type | Inductive proximity sensor |
| Sensing Range | 3 mm |
| Real Sensing Range | 3 mm ±10% |
| Operating Distance | 0 to 2.43 mm |
| Mounting | Flush mountable |
| Housing Thread | M8 × 1 |
| Housing Length | 27.5 mm |
| Electrical Design | DC |
| Output Function | Normally open |
| Electrical Configuration | 2-wire |
| Operating Voltage | 10 to 30 V DC |
| Switching Frequency | 800 Hz |
| Permanent Current Rating | 100 mA |
| Minimum Load Current | 2 mA |
| Maximum Leakage Current | 0.5 mA |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Status Indicator | Yellow LED |
| Cable Length | 2 m |
| Cable Type | PUR |
| Cable Diameter | Approx. 2.9 mm |
| Cable Conductors | 2 × 0.14 mm² |
| Housing Material | Stainless steel 1.4404 / 316L |
| Active Face Material | LCP |
| LED Window Material | PEI |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Ambient Temperature | -40°C to +85°C |
| Switching Principle | Non-contact inductive detection |
| Target Material | Metallic objects |
| Application | Industrial applications / factory automation |
| Additional Applications | Mobile machinery, cooling and lubrication |
| Supplied Accessories | 2 stainless-steel lock nuts |
| Approx. Weight | 35.8 g |
