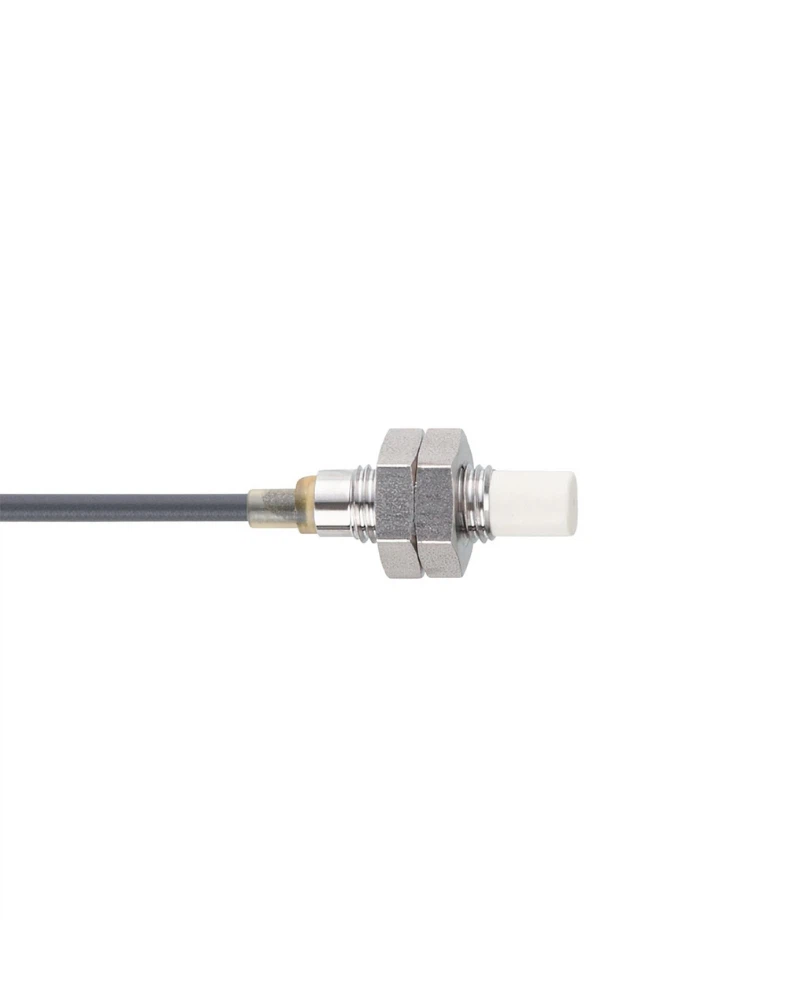

The IES245 inductive sensor provides reliable 6 mm non-contact metal detection for industrial automation, mobile machinery, and factory applications. Its NPN normally closed output, compact M8 construction, and high protection rating support reliable performance in harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IES245 Inductive Sensor is designed for reliable metal detection in Industrial Automation UAE applications. Its 6 mm sensing range supports accurate object detection in automated machines and production equipment.
The stainless-steel M8 housing and high protection rating make this sensor suitable for Industrial Automation Suppliers UAE, mobile machinery, cooling and lubrication applications, and demanding factory environments.
Suitable for factory automation, industrial machinery, mobile equipment, conveyor systems, machine tools, assembly equipment, cooling and lubrication systems, position detection, object counting, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IES245 |
| Manufacturer Part No. | IEB3006-BNKG/V4A/2M/PUR |
| Sensor Technology | Inductive Proximity Sensor |
| Sensing Range | 6 mm |
| Mounting Type | Non-Flush Mountable |
| Housing | Threaded |
| Thread Size | M8 x 1 |
| Length | 27.5 mm |
| Electrical Design | NPN |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 800 Hz |
| Switching Current | 100 mA |
| Connection | 2 m PUR Cable |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Housing Material | Stainless Steel |
| Ambient Temperature | -40 to +85 °C |
| Application | Industrial Automation / Factory Automation |
