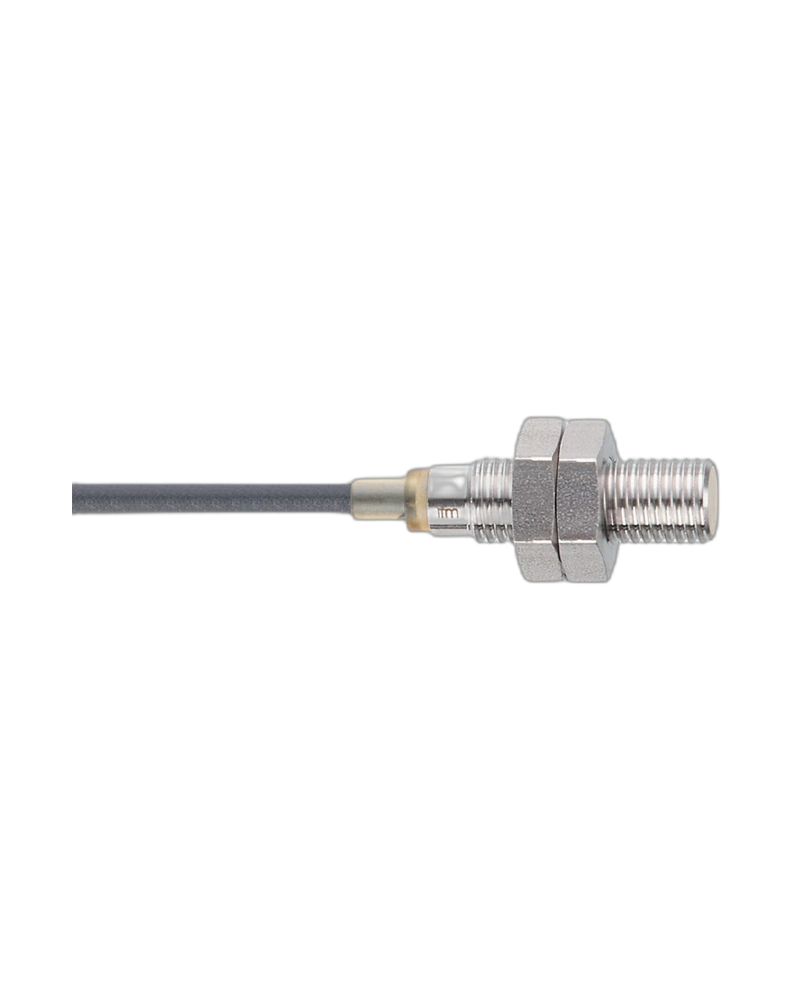

The IES244 inductive sensor provides accurate 3 mm non-contact metal detection for industrial automation and factory equipment. Its NPN normally closed output, compact M8 design, and high protection rating make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IES244 Inductive Sensor is designed for dependable metal object detection in Industrial Automation UAE applications. It helps automated machinery detect the presence and position of metal components without physical contact.
With its stainless-steel M8 threaded housing and flush-mount design, the sensor can be integrated into Industrial Automation Solutions in UAE, machine tools, conveyors, assembly equipment, and factory automation systems.
Ideal for factory automation, machine tools, conveyor systems, assembly machinery, packaging equipment, material handling, position sensing, object detection, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IES244 |
| Manufacturer Part No. | IEB3003BBNKG/V4A/2M/PUR |
| Sensor Technology | Inductive Proximity Sensor |
| Sensing Range | 3 mm |
| Mounting Type | Flush Mountable |
| Housing | Threaded |
| Thread Size | M8 x 1 |
| Length | 27.5 mm |
| Electrical Design | NPN |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1500 Hz |
| Switching Current | 100 mA |
| Connection | 2 m PUR Cable |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Housing Material | Stainless Steel |
| Ambient Temperature | -40 to +85 °C |
| Application | Industrial Automation / Factory Automation |
