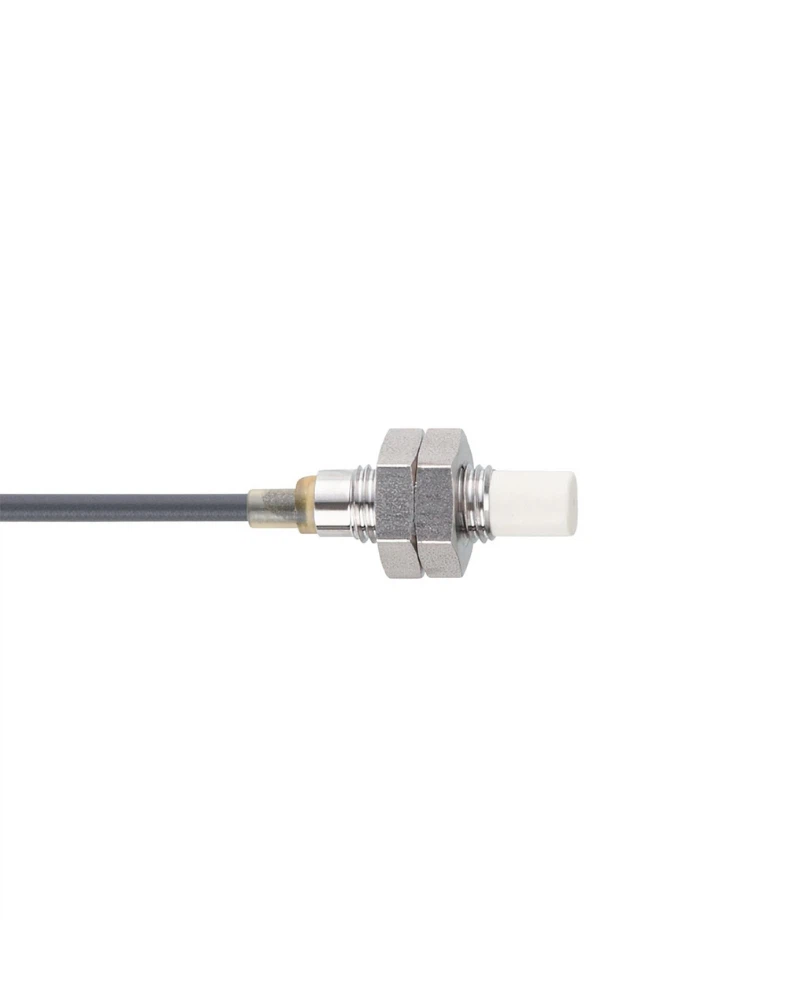

The IES243 inductive sensor provides reliable 6 mm non-contact metal detection for industrial automation, mobile machinery, and factory applications. Its NPN normally open output, compact M8 design, and high protection rating support dependable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IES243 Inductive Sensor is designed for dependable object detection in Industrial Automation UAE applications. Its extended 6 mm sensing range helps detect metal components accurately in automated machinery and production systems.
The sensor is suitable for Industrial Automation Components UAE, mobile machinery, cooling and lubrication systems, factory automation, and harsh industrial applications. Its stainless-steel housing provides robust mechanical performance.
Suitable for industrial automation, factory automation, conveyor systems, mobile machines, machine tools, assembly equipment, cooling systems, lubrication systems, position detection, and object counting.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IES243 |
| Manufacturer Part No. | IEB3006-ANKG/V4A/2M/PUR |
| Sensor Technology | Inductive Proximity Sensor |
| Sensing Range | 6 mm |
| Mounting Type | Non-Flush Mountable |
| Housing | Threaded |
| Thread Size | M8 x 1 |
| Length | 27.5 mm |
| Electrical Design | NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 800 Hz |
| Switching Current | 100 mA |
| Connection | 2 m PUR Cable |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Housing Material | Stainless Steel |
| Ambient Temperature | -40 to +85 °C |
| Application | Industrial Automation / Mobile Applications |
