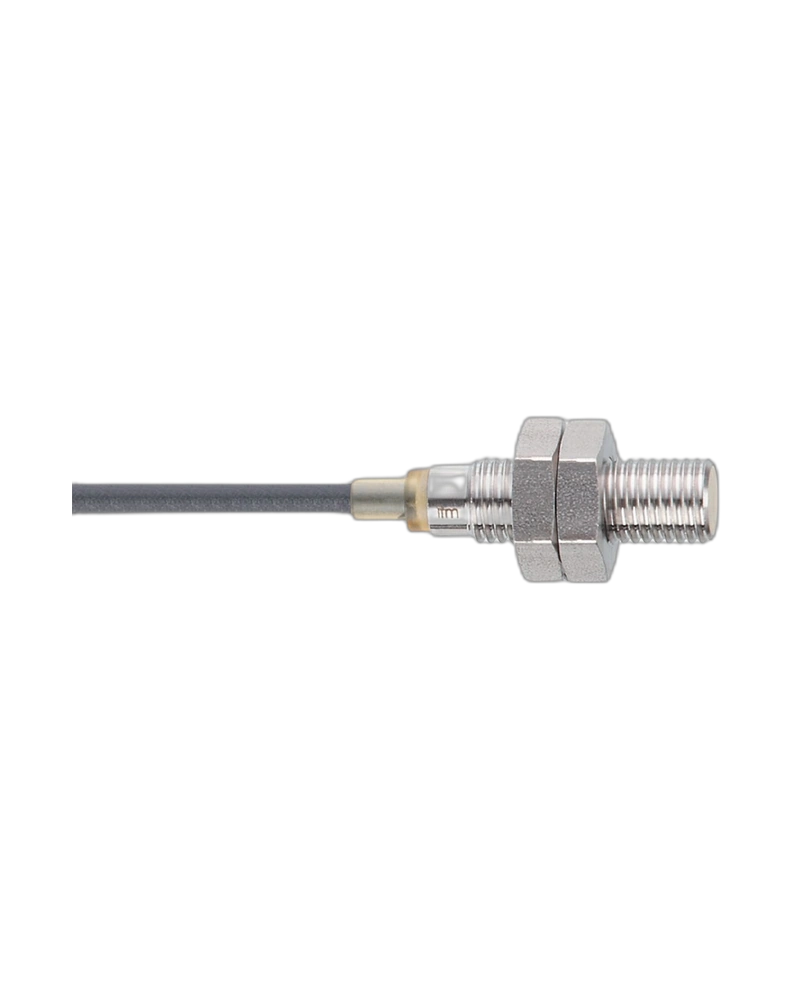

The IES242 inductive sensor is designed for accurate non-contact metal detection in industrial automation and factory applications. Its compact M8 construction, 3 mm sensing range, and NPN normally open output provide reliable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IES242 Inductive Sensor supports accurate metal detection in Industrial Automation UAE applications. It helps detect the presence and position of metal components in automated machinery without physical contact.
Its compact M8 threaded design and stainless-steel housing make it suitable for Industrial Equipment & Supplies in UAE, factory automation, mobile machinery, cooling and lubrication systems, and harsh industrial environments.
Ideal for factory automation, industrial machinery, mobile equipment, conveyor systems, assembly machines, position detection, object counting, cooling systems, lubrication applications, and production equipment.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IES242 |
| Manufacturer Part No. | IEB3003BANKG/V4A/2M/PUR |
| Sensor Technology | Inductive Proximity Sensor |
| Sensing Range | 3 mm |
| Mounting Type | Flush Mountable |
| Housing | Threaded |
| Thread Size | M8 x 1 |
| Length | 27.5 mm |
| Electrical Design | NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1500 Hz |
| Switching Current | 100 mA |
| Connection | 2 m PUR Cable |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Housing Material | Stainless Steel |
| Ambient Temperature | -40 to +85 °C |
| Application | Industrial Automation / Factory Automation |
