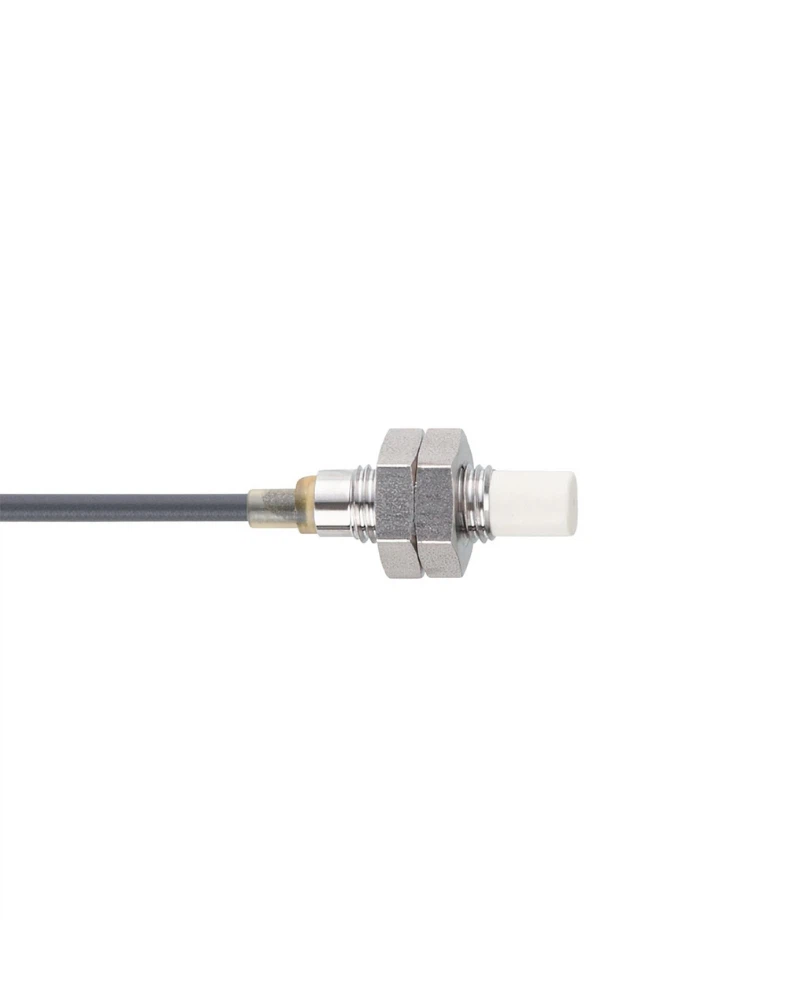

The IES241 inductive sensor provides reliable 6 mm metal detection for industrial automation, mobile machinery, and factory applications. Its compact M8 design, PNP normally closed output, and high protection rating make it suitable for demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IES241 Inductive Sensor is designed for dependable metal detection in Industrial Automation UAE applications. Its 6 mm sensing range provides reliable object detection for automated machinery and production equipment.
The stainless-steel housing and high protection rating make the sensor suitable for Industrial Automation Equipment UAE, mobile machinery, cooling and lubrication applications, and demanding factory environments.
Suitable for industrial automation, mobile machinery, factory automation, conveyor systems, machine tools, cooling and lubrication systems, position sensing, object detection, and production equipment.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IES241 |
| Manufacturer Part No. | IEB3006-APKG/V4A/2M/PUR |
| Sensor Technology | Inductive Proximity Sensor |
| Sensing Range | 6 mm |
| Mounting Type | Non-Flush Mountable |
| Housing | Threaded |
| Thread Size | M8 x 1 |
| Length | 27.5 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 800 Hz |
| Switching Current | 100 mA |
| Connection | 2 m PUR Cable |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Housing Material | Stainless Steel |
| Ambient Temperature | -40 to +85 °C |
| Application | Industrial Automation / Factory Automation |
