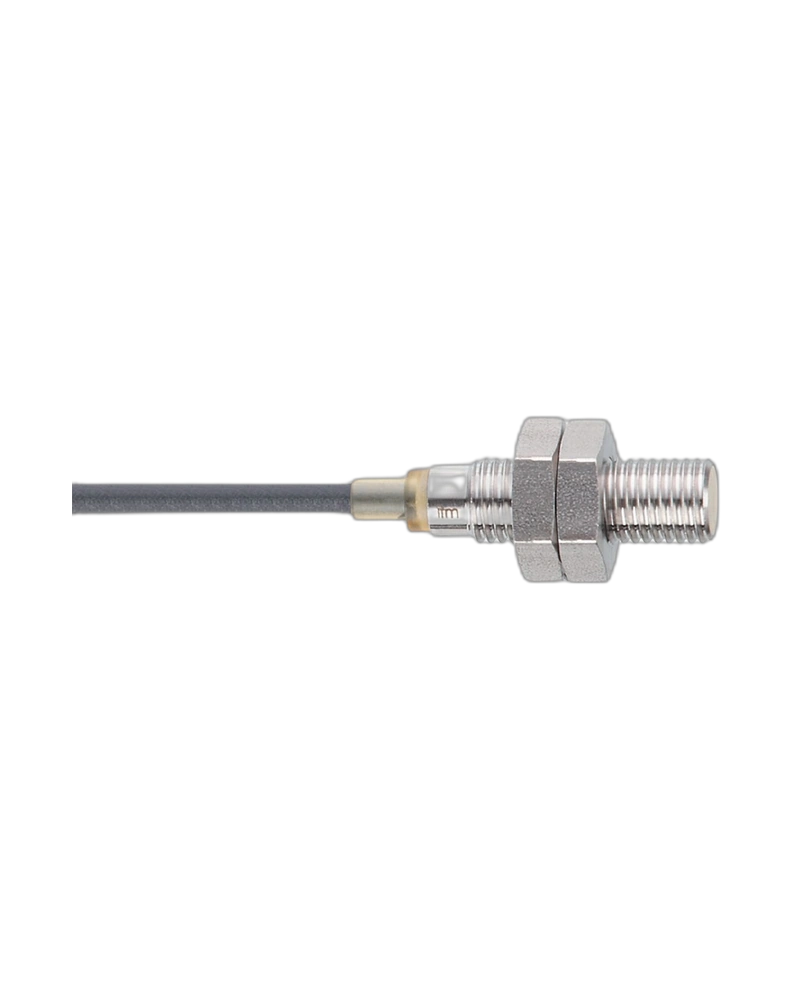

The IES240 inductive sensor is a compact M8 proximity sensor designed for accurate metal detection in industrial automation, factory equipment, and mobile applications. Its 3 mm sensing range and high switching frequency support fast and reliable object detection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IES240 Inductive Sensor provides reliable metal detection for Industrial Automation UAE applications where compact installation and accurate sensing are important. It is designed for factory automation and industrial machinery.
Its stainless-steel housing, M8 threaded design, and high protection rating make the sensor suitable for Industrial Equipment in UAE, mobile machinery, cooling systems, lubrication applications, and harsh industrial environments.
Ideal for factory automation, machine tools, mobile machinery, conveyor systems, position detection, object counting, cooling and lubrication systems, assembly equipment, and industrial machinery.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IES240 |
| Manufacturer Part No. | IEB3003BAPKG/V4A/2M/PUR |
| Sensor Technology | Inductive Proximity Sensor |
| Sensing Range | 3 mm |
| Mounting Type | Flush Mountable |
| Housing | Threaded |
| Thread Size | M8 x 1 |
| Length | 27.5 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1500 Hz |
| Switching Current | 100 mA |
| Connection | 2 m PUR Cable |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Housing Material | Stainless Steel |
| Ambient Temperature | -40 to +85 °C |
| Application | Factory Automation / Industrial Equipment |
