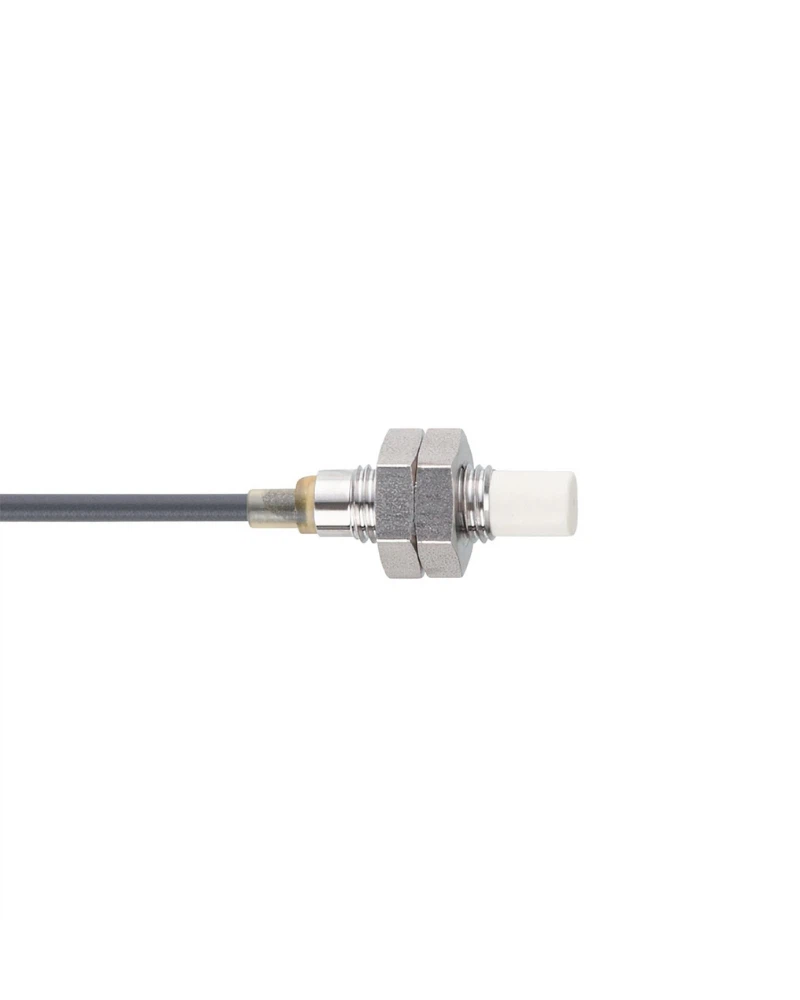

The IFM IES239 IEB3006-BPKG/V4A/2M/PUR is a robust inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. It features a 6 mm sensing range, PNP normally-open output, 10–30 V DC operation, 800 Hz switching frequency, M8 × 1 stainless-steel housing, non-flush mounting and a 2 m PUR cable. Its high protection rating and wide operating temperature range make it suitable for demanding industrial environme
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES239 IEB3006-BPKG/V4A/2M/PUR is an inductive proximity sensor designed for dependable and repeatable detection of metallic objects without physical contact. IFM specifies the sensor for industrial, mobile, cooling and lubricating applications, as well as factory automation. Its robust construction and high protection rating make it suitable for demanding operating environments.
The sensor provides a 6 mm sensing range, with a real sensing range of 6 ± 10% mm and an operating distance of 0–4.86 mm. This increased sensing range supports reliable detection of metallic components, machine parts, workpieces and moving machine elements.
The IES239 uses a PNP normally-open output and operates from a 10–30 V DC supply. Its 800 Hz switching frequency supports repetitive detection tasks in automated machinery and production equipment.
6 mm sensing range
Real sensing range: 6 ± 10% mm
Operating distance: 0–4.86 mm
Increased sensing range
PNP electrical design
Normally-open output
10–30 V DC operating voltage
800 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
27.5 mm overall length
Non-flush mountable
Stainless steel 1.4404 / 316L housing
2 m PUR cable
3 × 0.14 mm² cable construction
Approx. 2.9 mm cable diameter
1 yellow switching-status LED
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Vibration resistant
Shock resistant
Continuous-shock resistant
Rapid-temperature-change resistant
Salt-spray tested
Suitable for industrial applications
Suitable for mobile applications
Suitable for cooling and lubricating applications
Suitable for factory automation
The IES239 provides reliable non-contact metal detection for industrial machinery and automated production equipment. Its 6 mm sensing range allows metallic objects to be detected without mechanical contact, supporting machine-position monitoring, component presence detection, metal detection and production-line control.
The 800 Hz switching frequency supports repetitive detection operations in automated equipment. Its PNP normally-open output can provide a switching signal to compatible PLCs, industrial controllers and automation systems.
The sensor features an M8 × 1 threaded stainless-steel housing with a compact 27.5 mm overall length. Its non-flush mounting design provides flexibility when installing the sensor in suitable machine structures, fixtures and equipment.
The IES239 is supplied with a 2 m PUR cable with 3 × 0.14 mm² conductors. The pre-wired cable provides a practical connection solution for industrial installations where a fixed cable connection is preferred.
A yellow switching-status LED provides visual indication of the sensor output state, assisting technicians during installation, commissioning and maintenance.
The sensor is designed for demanding industrial conditions, with IP65, IP66, IP67, IP68 and IP69K protection and an ambient temperature range of -40 °C to +85 °C. These characteristics support operation in environments exposed to dust, moisture, vibration and demanding industrial conditions.
For Industrial Automation UAE, the IES239 can be integrated with PLCs, industrial controllers, control panels and other automation equipment for machine monitoring and process control.
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses developing Industrial automation systems in UAE, the sensor provides a dependable solution for proximity detection, metal-component detection and machine-position feedback.
The IES239 can form part of an Industrial Equipment & Supplies portfolio for companies supplying Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE and Industrial Automation Equipment UAE, the IES239 provides a practical sensing component for machine builders, manufacturers and automation integrators.
The sensor is also relevant to businesses supplying Industrial Sensors, Industrial Sensors Supplier UAE, Proximity Sensors, Proximity Sensors Supplier UAE, Photoelectric Sensors and other industrial sensing products through a Sensor Supplier UAE.
It can also be integrated alongside Factory Automation Components and other Industrial Automation Components UAE for manufacturing, assembly, material-handling and automated production systems.
| Specification | Details |
|---|---|
| Product Code | IES239 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3006-BPKG/V4A/2M/PUR |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 800 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 6 mm |
| Real Sensing Range (Sr) | 6 ± 10% mm |
| Operating Distance | 0–4.86 mm |
| Increased Sensing Range | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.5 |
| Correction Factor – Copper | 0.4 |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 27.5 mm |
| Mounting | Non-flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Connection | 2 m PUR cable |
| Cable Construction | 3 × 0.14 mm² |
| Cable Diameter | Approx. 2.9 mm |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc, 20 g |
| Shock Resistance | EN 60068-2-27 Ea, 100 g |
| Continuous Shock Resistance | EN 60068-2-27, 40 g |
| Fast Temperature Change | EN 60068-2-14 Na |
| Salt Spray Test | EN 60068-2-52 Kb, Severity Level 5 |
| EMC | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B |
| MTTF | Approx. 1465 years |
| UL Approval | Yes |
| UL Ambient Temperature | -25 °C to +70 °C |
| UL Enclosure Type | Type 1 |
| UL Approval Number | A032 |
| UL File Number | E174191 |
| Weight | Approx. 38 g |
| Tightening Torque | A = 5 mm: 2 Nm; B: 5 Nm |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine position detection, metal detection, mobile machinery, cooling and lubricating applications |
