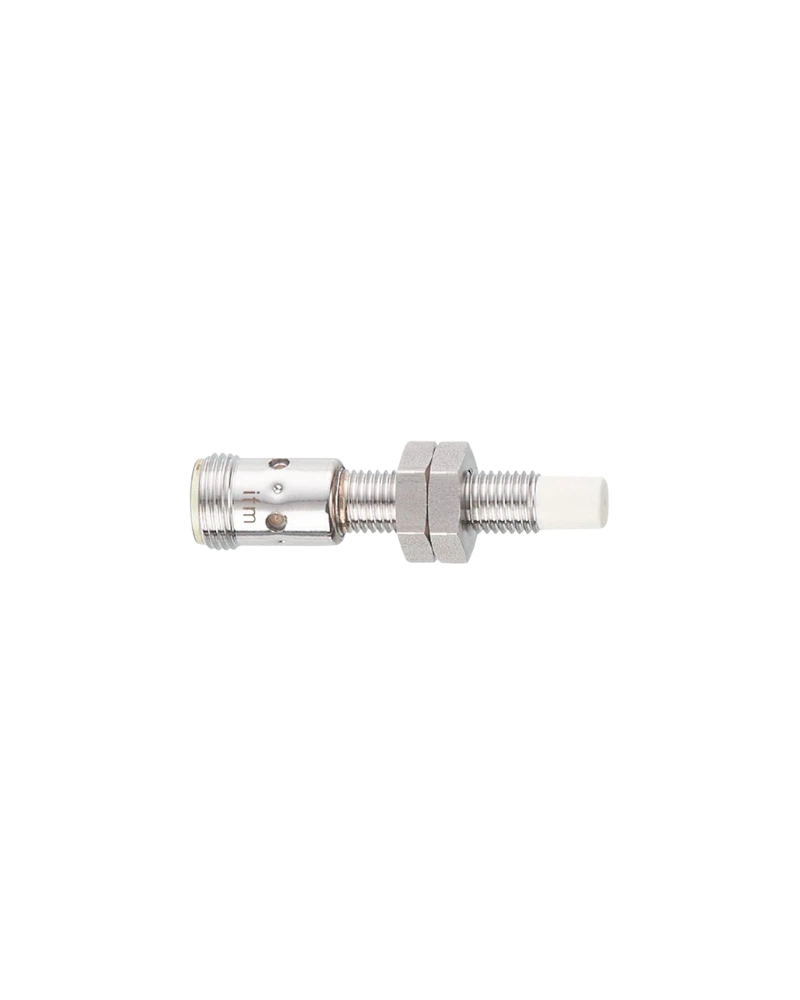

The IFM IES232 IEB3006-BPKG/V4A/US-104 is a robust inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machinery, mobile equipment, cooling and lubricating applications. It features a 6 mm sensing range, PNP normally-open output, 10–30 V DC operation, 800 Hz switching frequency, M8 × 1 stainless-steel housing, non-flush mounting and M12 A-coded connector. Its high protection rating and wide operating temperature range make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES232 IEB3006-BPKG/V4A/US-104 is an inductive proximity sensor designed for dependable and repeatable detection of metallic objects without physical contact. It is intended for industrial applications as well as suitable mobile, cooling and lubricating applications.
The sensor provides a 6 mm sensing range, a real sensing range of 6 ± 10% mm and an operating distance of 0–4.86 mm. Its increased sensing range helps provide reliable detection of metallic machine components, workpieces and moving parts.
The IES232 uses a PNP normally-open output and operates from a 10–30 V DC supply. Its 800 Hz switching frequency supports repetitive detection tasks in automated machinery and production equipment.
6 mm sensing range
Real sensing range: 6 ± 10% mm
Operating distance: 0–4.86 mm
Increased sensing range
PNP electrical design
Normally-open output
10–30 V DC operating voltage
800 Hz switching frequency
100 mA permanent switching current
100 mA short-time switching current
M8 × 1 threaded housing
50 mm overall length
Non-flush mountable
Stainless steel 1.4404 / 316L housing
M12 A-coded connector
4 yellow switching-status LEDs
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Vibration resistant
Shock resistant
Continuous-shock resistant
Rapid-temperature-change resistant
Salt-spray tested
Suitable for industrial applications
Suitable for mobile applications
Suitable for cooling and lubricating applications
Suitable for factory automation
The IES232 provides reliable non-contact metal detection for industrial machinery and automated production equipment. Its 6 mm sensing range allows detection of metallic objects without mechanical contact, supporting applications such as machine-position monitoring, component presence detection, metal detection and production-line control.
The sensor has an 800 Hz switching frequency, allowing it to handle repetitive detection operations in automated equipment. The PNP normally-open output can provide a suitable switching signal to compatible PLCs, controllers and industrial automation systems.
The IES232 has an M8 × 1 threaded stainless-steel 1.4404 / 316L housing with a 50 mm overall length. Its non-flush mounting design provides flexibility when installing the sensor in suitable machine structures and fixtures.
The sensor uses an M12 A-coded connector and has four yellow switching-status LEDs, providing clear visual indication during installation, commissioning and maintenance.
The IES232 provides IP65, IP66, IP67, IP68 and IP69K protection and is designed for an ambient temperature range of -40 °C to +85 °C. Its environmental testing includes vibration, shock, continuous shock, rapid temperature changes and salt spray, supporting use in demanding industrial conditions.
For Industrial Automation UAE, the IES232 can be integrated with PLCs, industrial controllers, control panels and other automation equipment for machine monitoring and process control.
For Industrial automation companies in UAE, Industrial automation companies UAE, and businesses developing Industrial automation systems in UAE, the sensor provides a dependable solution for proximity detection, metal-component detection and machine-position feedback.
The IES232 can form part of an Industrial Equipment & Supplies portfolio for companies supplying Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE and Industrial Automation Equipment UAE, the IES232 provides a practical sensing component for machine builders, manufacturers and automation integrators.
The sensor is also relevant to businesses supplying Industrial Sensors, Industrial Sensors Supplier UAE, Proximity Sensors, Proximity Sensors Supplier UAE, Photoelectric Sensors and other sensing products through a Sensor Supplier UAE.
It can be integrated alongside Factory Automation Components and other Industrial Automation Components UAE for manufacturing, assembly, material-handling and automated production applications.
| Specification | Details |
|---|---|
| Product Code | IES232 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3006-BPKG/V4A/US-104 |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Short-Time Switching Current | 100 mA |
| Switching Frequency | 800 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 6 mm |
| Real Sensing Range (Sr) | 6 ± 10% mm |
| Operating Distance | 0–4.86 mm |
| Increased Sensing Range | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.5 |
| Correction Factor – Copper | 0.4 |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Mounting | Non-flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Switching Status Indication | 4 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc, 20 g |
| Shock Resistance | EN 60068-2-27 Ea, 100 g |
| Continuous Shock Resistance | EN 60068-2-27, 40 g |
| Fast Temperature Change | EN 60068-2-14 Na |
| Salt Spray Test | EN 60068-2-52 Kb, Severity Level 5 |
| EMC | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B |
| MTTF | Approx. 1376 years |
| Embedded Software Included | Yes |
| UL Approval | Yes |
| UL Ambient Temperature | -25 °C to +70 °C |
| UL Enclosure Type | Type 1 |
| UL Approval Number | A028 |
| UL File Number | E174191 |
| Weight | Approx. 16.8 g |
| Tightening Torque | A = 5 mm: 2 Nm; B: 5 Nm |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine position detection, metal detection, mobile machinery, cooling and lubricating applications |
