The IFM IES230 IEB3003BBPKG/V4A/US-104 is a robust inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machinery and factory applications. It features a 3 mm sensing range, PNP normally-open output, 10–30 V DC operation, 1500 Hz switching frequency, M8 × 1 stainless-steel housing, flush mounting and M12 A-coded connector. Its high protection rating and wide operating temperature range make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES230 IEB3003BBPKG/V4A/US-104 is an inductive proximity sensor designed for dependable and repeatable detection of metallic objects without physical contact. It is suitable for industrial, mobile, cooling and lubricating applications and can be integrated into factory automation systems where reliable metal detection and machine-position feedback are required.
The sensor provides a 3 mm sensing range, with a real sensing range of 3 ± 10% mm and an operating distance of 0–2.43 mm. Its increased sensing range provides reliable detection while maintaining a compact M8 × 1 threaded design.
The IES230 uses a PNP normally-open output and operates from a 10–30 V DC supply. Its switching frequency of up to 1500 Hz supports repetitive detection tasks in automated machinery and production equipment.
3 mm sensing range
Real sensing range: 3 ± 10% mm
Operating distance: 0–2.43 mm
Increased sensing range
PNP electrical design
Normally-open output
10–30 V DC operating voltage
1500 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
50 mm overall length
Flush mountable
Stainless steel 1.4404 / 316L housing
M12 A-coded connector
Gold-plated connector contacts
4 yellow switching-status LEDs
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Vibration resistant
Shock resistant
Continuous-shock resistant
Salt-spray tested
Suitable for industrial applications
Suitable for mobile applications
Suitable for cooling and lubricating applications
Suitable for factory automation
The IES230 provides reliable non-contact metal detection for industrial machinery and automated production equipment. Its 3 mm sensing range and low sensor tolerances support dependable detection of metallic components, machine parts and workpieces. IFM specifically describes the sensor as suitable for industrial, mobile, cooling and lubricating applications.
The sensor supports a 1500 Hz switching frequency, making it suitable for repetitive detection tasks such as machine position monitoring, component presence detection, automated counting and production-line control.

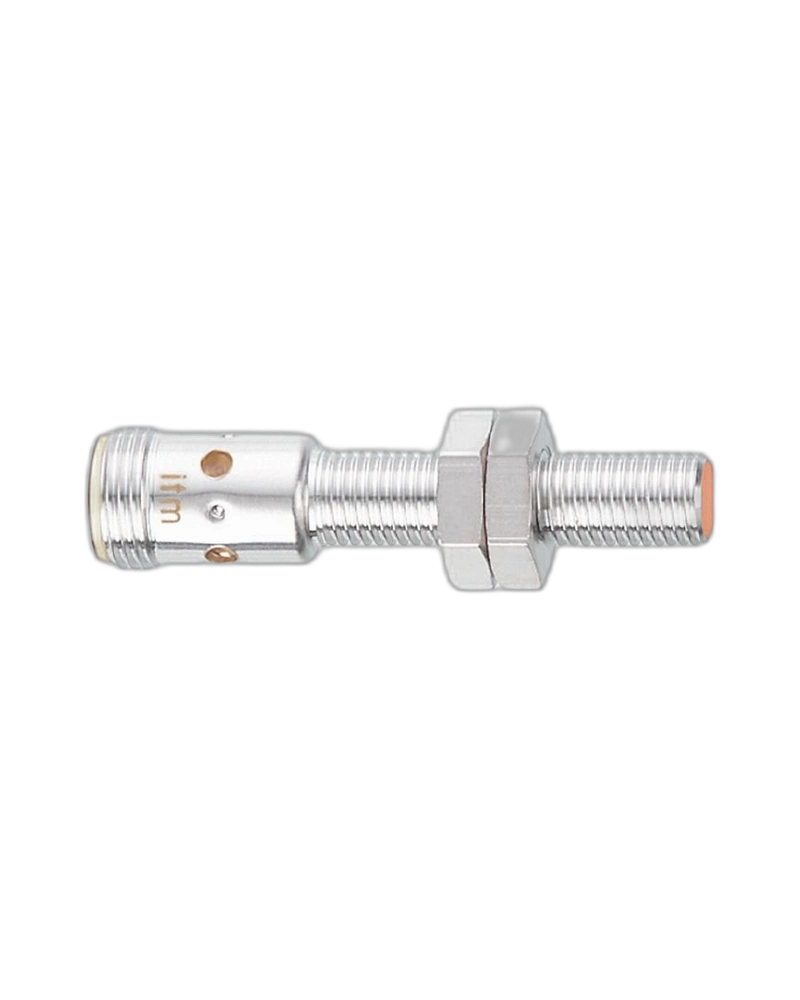

The IES230 uses an M8 × 1 stainless-steel 1.4404 / 316L housing with an overall length of 50 mm. Its flush-mountable construction allows it to be integrated into suitable machine structures while maintaining a compact sensing arrangement.
The sensor uses an M12 A-coded connector and provides four yellow LEDs for switching-status indication. The visual indication helps technicians during installation, commissioning and maintenance.
The IES230 provides IP65, IP66, IP67, IP68 and IP69K protection and operates across an ambient temperature range of -40 °C to +85 °C. Its documented environmental testing includes vibration, shock, continuous shock, rapid temperature changes and salt spray.
For Industrial Automation UAE, the IES230 can be integrated with PLCs, controllers, control panels and other automation equipment for machine monitoring and process control.
For Industrial automation companies in UAE, Industrial automation companies UAE, and companies developing Industrial automation systems in UAE, the sensor provides a practical solution for proximity detection and machine-position feedback.
It can also be included in an Industrial Equipment & Supplies portfolio for businesses supplying Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE and Industrial Automation Equipment UAE, the IES230 can be supplied as part of a wider range of industrial sensing and control components.
The sensor is particularly relevant to Industrial Sensors, Industrial Sensors Supplier UAE, Proximity Sensors, Proximity Sensors Supplier UAE, Photoelectric Sensors and Sensor Supplier UAE portfolios.
It can also complement Factory Automation Components and other Industrial Automation Components UAE used in machine-building, manufacturing and automated production systems.
| Specification | Details |
|---|---|
| Product Code | IES230 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3003BBPKG/V4A/US-104 |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Short-Time Switching Current | 100 mA |
| Switching Frequency | 1500 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Connector Contacts | Gold-plated |
| Switching Status Indication | 4 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc, 20 g |
| Shock Resistance | EN 60068-2-27 Ea, 100 g |
| Continuous Shock Resistance | EN 60068-2-27, 40 g |
| Fast Temperature Change | EN 60068-2-14 Na |
| Salt Spray Test | EN 60068-2-52 Kb, Severity Level 5 |
| EMC | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B |
| MTTF | Approx. 1396 years |
| UL Approval | Yes |
| UL Ambient Temperature | -25 °C to +70 °C |
| UL Enclosure Type | Type 1 |
| UL Approval Number | A028 |
| UL File Number | E174191 |
| Weight | Approx. 17.5 g |
| Tightening Torque | A = 5 mm: 2 Nm; B: 5 Nm |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, factory automation, machine position detection, metal detection, mobile machinery, cooling and lubricating applications |
