The IFM IES228 IEB3006-APKG/V4A/K1/10M/PUR is a robust inductive proximity sensor for reliable non-contact detection of metallic objects in industrial automation and machinery. It features a 6 mm sensing range, PNP normally-closed output, 10–30 V DC operation, 2000 Hz switching frequency, K=1 correction factor, magnetic-field immunity and a stainless-steel M8 × 1 housing with 10 m PUR cable.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

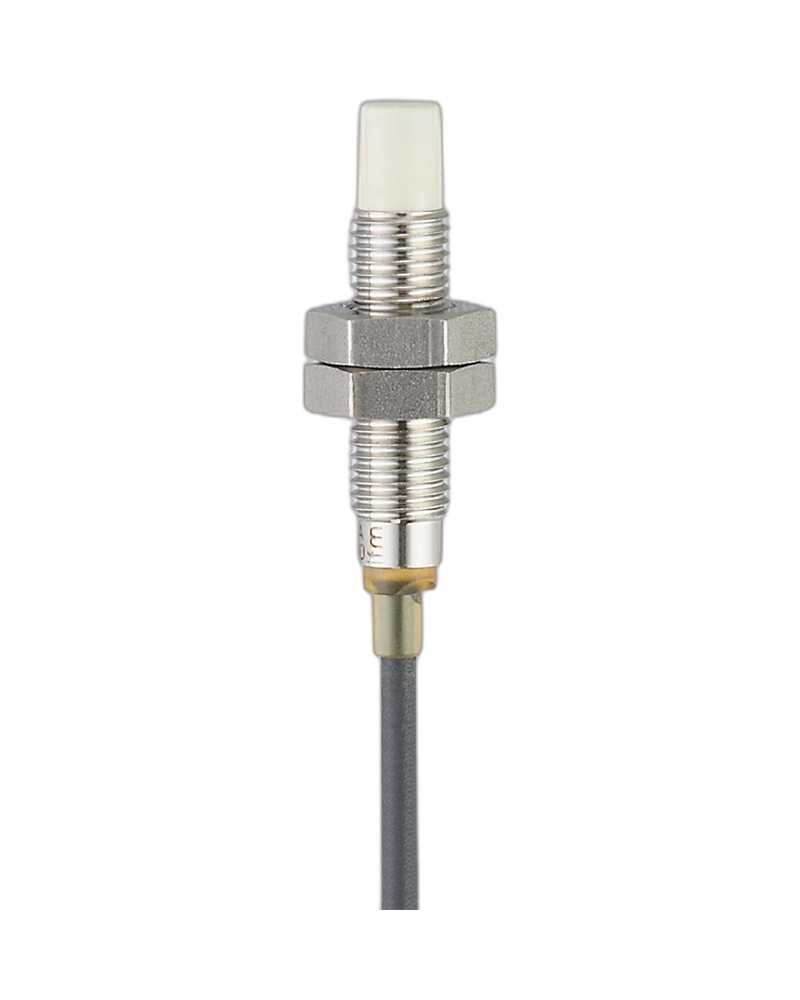

The IFM IES228 IEB3006-APKG/V4A/K1/10M/PUR is an industrial inductive proximity sensor designed for dependable non-contact detection of metallic objects. Its compact M8 × 1 threaded construction, stainless-steel housing and long 10 m PUR cable make it suitable for industrial machinery, factory automation and demanding installation environments.
The sensor provides a 6 mm sensing range, with a real sensing range of 6 ± 10% mm and an operating distance of 0–4.86 mm. It uses an increased sensing range and a K=1 correction factor, providing the same nominal sensing range for steel, stainless steel, brass, aluminium and copper.
The IES228 uses a PNP normally-closed output and operates from a 10–30 V DC supply. With a switching frequency of up to 2000 Hz, it is suitable for fast and repetitive detection tasks in automated machinery.
6 mm sensing range
Real sensing range: 6 ± 10% mm
Operating distance: 0–4.86 mm
Increased sensing range
K=1 correction factor
Same sensing range for different metals
Magnetic-field immune up to 300 mT
PNP electrical design
Normally-closed output
10–30 V DC operating voltage
2000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
37.5 mm overall length
Non-flush mountable
Stainless steel 1.4404 / 316L housing
10 m PUR cable
3 × 0.14 mm² cable construction
1 yellow switching-status LED
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Vibration resistant
Shock resistant
Salt-spray resistant
The IES228 is designed for reliable operation in demanding industrial environments. Its 2000 Hz switching frequency supports high-speed and repetitive detection of metallic components, making it suitable for automated production equipment, machine monitoring and high-speed counting applications.
The K=1 correction factor is an important performance characteristic. The technical documentation specifies a correction factor of 1 for steel, stainless steel, brass, aluminium and copper, allowing the sensor to maintain the same nominal sensing range across these metals.
The sensor is also magnetic-field immune up to 300 mT, making it suitable for applications where exposure to strong electromagnetic fields could otherwise affect conventional inductive sensors.
The stainless-steel 1.4404 / 316L housing provides robust mechanical construction. The sensor has an M8 × 1 threaded body with a length of 37.5 mm and is designed for non-flush mounting.
The 10 m PUR cable provides extended connection length for installations where the sensor is positioned some distance from a junction box, control cabinet or automation controller. The cable consists of 3 × 0.14 mm² conductors.
The IES228 is specified for -40 °C to +85 °C ambient temperature and provides IP65, IP66, IP67, IP68 and IP69K protection when installed according to the manufacturer's requirements. Its technical testing also includes resistance to vibration, shock, continuous shock, rapid temperature changes and salt spray.
The sensor is suitable for Industrial Automation UAE requirements and can be integrated with PLCs, controllers, control panels and other Industrial Automation Components UAE. It is particularly relevant for industrial machinery, factory automation and metal detection applications.
For Industrial automation companies in UAE, Industrial automation companies UAE and businesses providing Industrial automation solutions in UAE, the IES228 offers a compact and rugged inductive sensing solution.
It can also form part of an Industrial Equipment & Supplies portfolio for companies supplying Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers, Industrial Equipment in UAE and Industrial Electrical Equipment.
For an Industrial Automation Supplier in UAE, Industrial Automation Suppliers UAE, Automation Products Supplier UAE or Industrial Automation Equipment UAE, the IES228 can be used as a reliable proximity-sensing component alongside PLCs, drives, control equipment and other automation products.
The sensor is also relevant to applications involving Industrial Sensors, Industrial Sensors Supplier UAE, Proximity Sensors, Proximity Sensors Supplier UAE and Sensor Supplier UAE.
For broader industrial automation projects, it can complement Photoelectric Sensors, pneumatic components, valves and drive products supplied by companies serving industrial customers in the UAE.
| Specification | Details |
|---|---|
| Product Code | IES228 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3006-APKG/V4A/K1/10M/PUR |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 2000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 6 mm |
| Increased Sensing Range | Yes |
| Correction Factor | K=1 |
| Magnetic-Field Immune | Yes |
| Maximum Magnetic Field Strength | 300 mT |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 37.5 mm |
| Mounting | Non-flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Construction | 3 × 0.14 mm² |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc, 20 g |
| Shock Resistance | EN 60068-2-27 Ea, 100 g |
| Continuous Shock Resistance | EN 60068-2-27, 40 g |
| Fast Temperature Change | EN 60068-2-14 Na |
| Salt Spray Test | EN 60068-2-52 Kb, Severity Level 5 |
| EMC | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B |
| MTTF | Approx. 747 years |
| Embedded Software | Yes |
| UL Approval | Yes |
| UL Ambient Temperature | -25 °C to +70 °C |
| UL Enclosure Type | Type 1 |
| UL Approval Number | A013 |
| UL File Number | E174191 |
| Tightening Torque | A = 6 mm: 2 Nm; B: 5 Nm |
| Weight | Approx. 125.5 g |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, mobile machinery, cooling and lubricating applications, high-speed metal detection, machine position detection and factory automation |
