The IFM IES227 IEB3003BBPKG/V4A/K1/10M/PUR is a robust inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, mobile machinery, cooling and lubricating applications. It features a 3 mm sensing range, PNP normally-open output, 10–30 V DC operation, 2000 Hz switching frequency, K=1 correction factor for all metals, flush-mountable M8 × 1 stainless-steel housing and a 10 m PUR cable. Its high switching frequency, strong environmental protection and resistance to vibration and shock make it suitable for demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES227 IEB3003BBPKG/V4A/K1/10M/PUR is an inductive proximity sensor engineered for reliable and repeatable non-contact detection of metallic objects. It is suitable for industrial applications, mobile applications, cooling and lubricating applications and industrial automation systems.
The sensor provides a 3 mm sensing range, with a real sensing range of 3 ± 10% mm and a guaranteed operating distance of 0–2.43 mm. Its increased sensing range and K=1 correction factor provide a consistent sensing range for different metallic target materials.

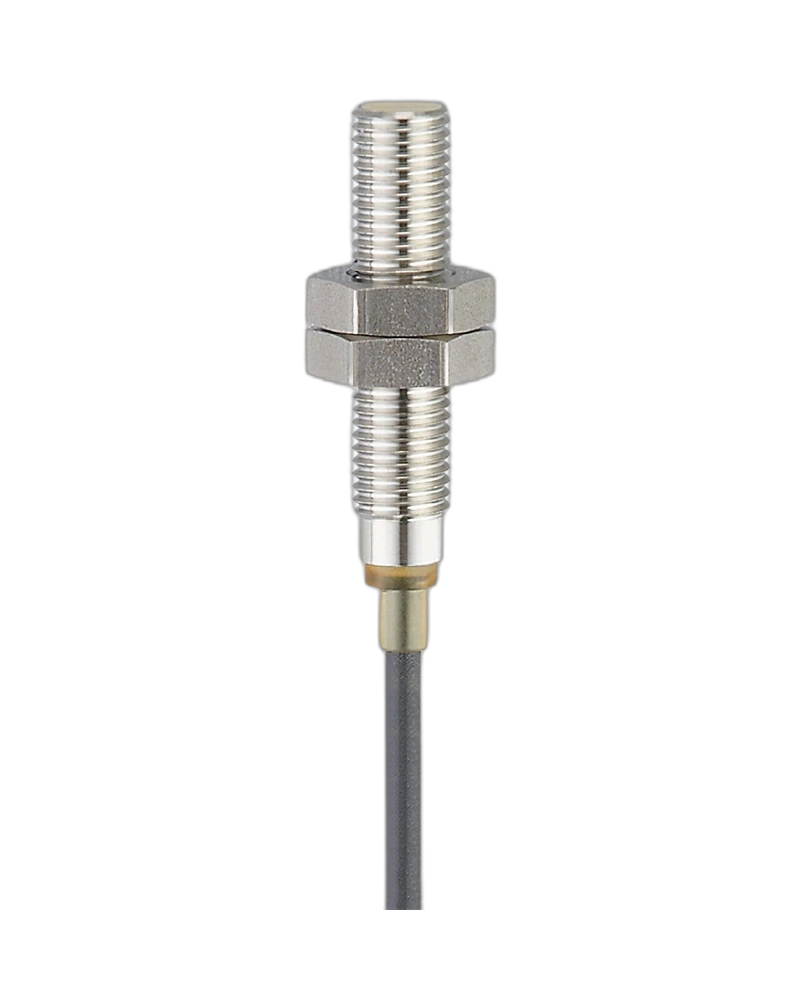

IFM IES227 inductive sensor
Model: IEB3003BBPKG/V4A/K1/10M/PUR
3 mm sensing range
Real sensing range: 3 ± 10% mm
Guaranteed operating distance: 0–2.43 mm
Increased sensing range
K=1 correction factor
Constant sensing range for all metals
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
2000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded construction
37.5 mm overall length
Flush-mountable design
Stainless-steel 1.4404 / 316L housing
10 m PUR cable
3 × 0.14 mm² cable construction
One yellow switching-status LED
IP65, IP66, IP67, IP68 and IP69K protection
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Vibration-resistant construction
Shock-resistant construction
Suitable for industrial automation
The IES227 uses inductive proximity sensing technology to detect metallic targets without physical contact. When a suitable metal target enters the sensing zone, the sensor switches its PNP normally-open output.
The sensor can provide a switching signal to compatible PLCs, industrial controllers and automation systems for machine position detection, metal component detection, counting and process monitoring.
Its K=1 correction factor is a particularly useful feature for applications involving different metallic target materials. According to the technical data, the correction factor is specified as 1 for steel, stainless steel, brass, aluminium and copper, providing a consistent sensing range across these metals.
The IES227 provides a 3 mm sensing range and a very high 2000 Hz switching frequency, making it suitable for fast and repetitive metal detection tasks.
The sensor has a real sensing range of 3 ± 10% mm and a guaranteed operating distance of 0–2.43 mm. Its K=1 characteristic helps maintain the same nominal sensing range across the specified metallic materials.
The IES227 uses a robust stainless-steel 1.4404 / 316L housing with an M8 × 1 threaded body and 37.5 mm overall length. It is designed for flush mounting, allowing the sensor to be installed neatly in compatible machine structures.
The sensor is supplied with a 10 m PUR cable, providing extended connection distance for machinery and automation installations where the sensor is positioned away from the control cabinet or junction point. The cable consists of 3 × 0.14 mm² conductors.
Machine Position Detection
The IES227 can detect metallic machine components, moving parts and fixtures to provide reliable position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces during automated manufacturing and assembly processes.
High-Speed Detection
With a 2000 Hz switching frequency, the sensor is suitable for fast repetitive detection and counting applications.
Mobile Machinery
The sensor is designed for suitable mobile applications requiring reliable inductive detection.
Cooling and Lubricating Applications
The IES227 can be used in appropriate cooling and lubricating environments where dependable non-contact metal detection is required.
Factory Automation
The sensor can be integrated with PLCs, industrial controllers, drives and other Factory Automation Components.
The IES227 combines a 3 mm sensing range, K=1 correction factor and 2000 Hz switching frequency for reliable high-speed metal detection.
Its -40 °C to +85 °C ambient temperature range and IP65/IP66/IP67/IP68/IP69K protection ratings support operation in demanding industrial environments. The technical specifications also include resistance to vibration, shock, continuous shock, rapid temperature changes and salt spray.
The IES227 can be incorporated into Industrial Automation UAE systems requiring high-speed and reliable inductive proximity detection.
It can operate alongside Industrial Automation Components UAE, PLCs, control panels, actuators, drives and other Industrial Sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE or Automation Products Supplier UAE, the IES227 provides a dependable sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES227 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3003BBPKG/V4A/K1/10M/PUR |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 2000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Guaranteed Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Correction Factor | K=1 |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 1 |
| Correction Factor – Brass | 1 |
| Correction Factor – Aluminium | 1 |
| Correction Factor – Copper | 1 |
| Hysteresis | 3–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 37.5 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Construction | 3 × 0.14 mm² |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc, 20 g |
| Shock Resistance | EN 60068-2-27 Ea, 100 g |
| Continuous Shock Resistance | EN 60068-2-27, 40 g |
| Fast Temperature Change | EN 60068-2-14 Na |
| Salt Spray Test | EN 60068-2-52 Kb, Severity Level 5 |
| EMC | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B |
| Maximum Magnetic Field Strength | 300 mT |
| MTTF | Approx. 747 years |
| Embedded Software | Yes |
| UL Approval | Yes |
| UL Ambient Temperature | -25 °C to +70 °C |
| UL Enclosure Type | Type 1 |
| UL Approval Number | A013 |
| UL File Number | E174191 |
| Tightening Torque | A = 6 mm: 2 Nm; B: 5 Nm |
| Weight | Approx. 127 g |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, mobile machinery, cooling and lubricating applications, high-speed metal detection, machine position detection and factory automation |
