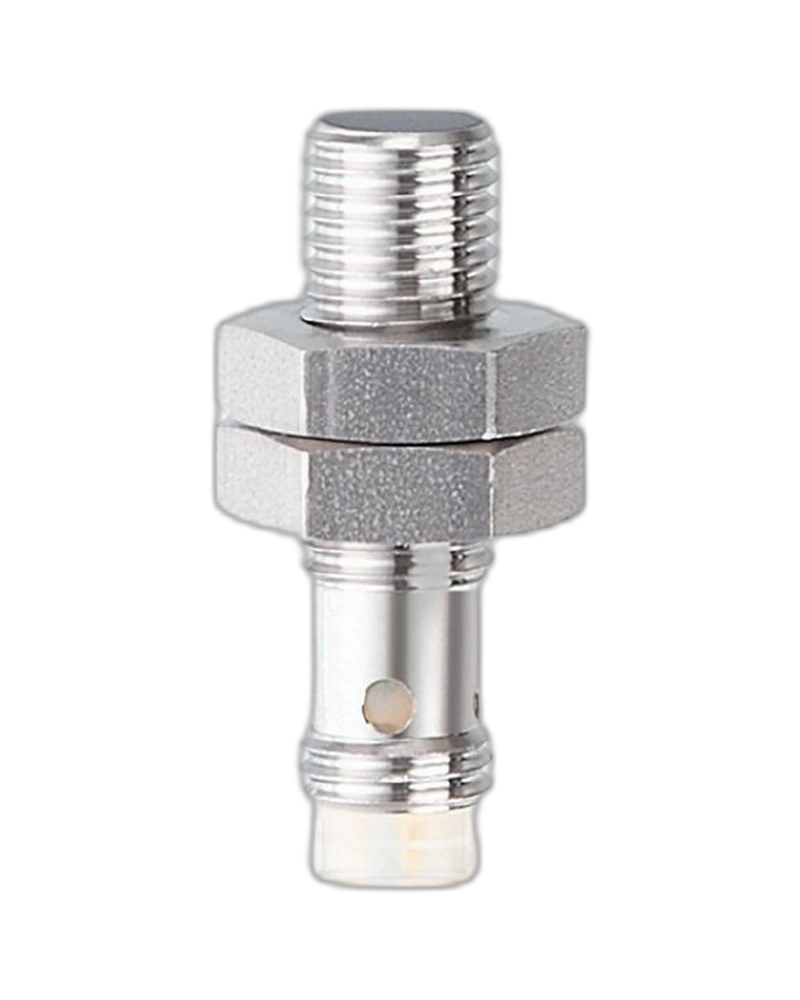

The IFM IES219 IEB3003BANKG/V4A/AS is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, mobile equipment, cooling and lubrication applications. It features a 3 mm sensing range, NPN normally-open output, 10–30 V DC operation, 1500 Hz switching frequency, flush-mountable M8 × 1 stainless-steel housing and gold-plated M8 connector contacts. Its increased sensing range and wide operating temperature range make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES219 IEB3003BANKG/V4A/AS is an inductive proximity sensor engineered for reliable and repeatable non-contact detection of metallic objects. IFM specifies the sensor for industrial, mobile, cooling and lubricating applications, as well as industrial applications and factory automation.
The sensor uses inductive sensing technology to detect metallic targets without physical contact. This makes it suitable for monitoring machine components, fixtures, workpieces and moving metallic parts during automated processes.
The IES219 provides a 3 mm sensing range, with a real sensing range of 3 ± 10% mm and an operating distance of 0–2.43 mm. It also features an increased sensing range for dependable object detection.
IFM IES219 inductive sensor
Model: IEB3003BANKG/V4A/AS
3 mm sensing range
Real sensing range: 3 ± 10% mm
Operating distance: 0–2.43 mm
Increased sensing range
DC NPN electrical design
Normally-open output
10–30 V DC operating voltage
1500 Hz switching frequency
100 mA permanent current rating
M8 × 1 threaded construction
30 mm overall length
Flush-mountable design
Stainless-steel 316L / 1.4404 housing
M8 A-coded connector
3 gold-plated contacts
Four yellow switching-status LEDs
IP65, IP66, IP67, IP68 and IP69K protection with suitable IFM socket
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for industrial applications
Suitable for mobile applications
Suitable for cooling and lubricating applications
Suitable for factory automation
The IES219 operates using an inductive proximity sensing principle. When a suitable metallic target enters the sensing zone, the sensor detects the target and switches its NPN normally-open output.
The switching signal can be connected to compatible PLCs, industrial controllers and automation equipment for machine position detection, component monitoring, object presence detection and automated process control.
The IES219 provides a 3 mm sensing range and 1500 Hz switching frequency, supporting repetitive metal detection in automated machinery. Its operating distance is specified as 0–2.43 mm.
The documented correction factors are 1 for steel, 0.7 for stainless steel, 0.4 for brass, 0.4 for aluminium and 0.3 for copper. These values should be considered when selecting the sensor for applications involving different metallic target materials.
The IES219 uses a stainless-steel 316L / 1.4404 housing with an M8 × 1 threaded body and 30 mm overall length. It is designed for flush mounting, making it suitable for machine structures and fixtures where compact installation is required.
The sensor uses an M8 A-coded connector with three gold-plated contacts. Four yellow LEDs arranged at 90° provide switching-status indication for convenient installation and maintenance.
Machine Position Detection
The IES219 can detect metallic machine components, fixtures and moving parts to provide position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces during automated production processes.
Mobile Equipment
The sensor is suitable for specified mobile applications requiring reliable inductive detection.
Cooling and Lubricating Applications
The IES219 can be used in suitable cooling and lubrication environments where dependable non-contact metal detection is required.
Factory Automation
The sensor can be integrated into automated machinery alongside PLCs, controllers, drives and other industrial sensors.
The IES219 combines a 3 mm sensing range, increased sensing range and 1500 Hz switching frequency for reliable repetitive metal detection.
Its -40 °C to +85 °C ambient temperature range and IP65/IP66/IP67/IP68/IP69K protection ratings support operation in demanding industrial environments. The technical documentation also specifies resistance to vibration, shock, continuous shock, rapid temperature changes and salt spray.
The IES219 can be incorporated into Industrial Automation UAE systems requiring reliable inductive proximity detection.
It can operate alongside Industrial Automation Components UAE, PLCs, control panels, actuators, drives and other Industrial Sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IES219 provides a compact and dependable sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES219 |
| Manufacturer | IFM electronic GmbH |
| Model / Part Number | IEB3003BANKG/V4A/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Current Rating | 100 mA |
| Switching Frequency | 1500 Hz |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 30 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 316L / 1.4404 |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 316L / 1.4404 |
| Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Connector Contacts | 3, gold-plated |
| Switching Status Indication | 4 × 90° yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K* |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc, 20 g |
| Shock Resistance | EN 60068-2-27 Ea, 100 g |
| Continuous Shock Resistance | EN 60068-2-27, 40 g |
| Fast Temperature Change Resistance | EN 60068-2-14 Na |
| Salt Spray Resistance | EN 60068-2-52 Kb, Severity Level 5 |
| EMC | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B |
| MTTF | 1440 years |
| Embedded Software | Yes |
| UL Approval | Yes |
| UL Ambient Temperature | -25 °C to +80 °C |
| UL Enclosure Type | Type 1 |
| UL Approval Number | A017 |
| UL File Number | E174191 |
| Tightening Torque | A = 5 mm: 2 Nm; B: 5 Nm |
| Weight | Approx. 13.05 g |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial applications, mobile applications, cooling and lubricating applications, machine position detection, metal detection and factory automation |
