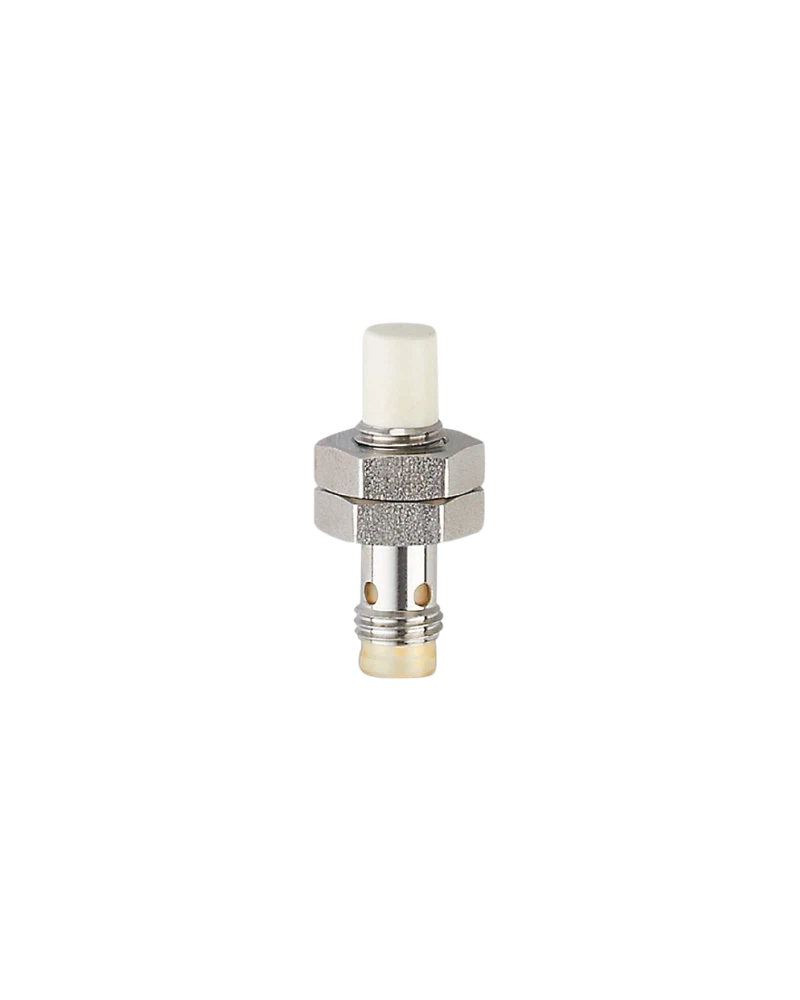

The IFM IES218 IEB3006-APKG/V4A/AS is a robust inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial, mobile, cooling and lubrication applications. It features a 6 mm sensing range, DC PNP normally-closed output, 10–30 V DC operation, 800 Hz switching frequency, stainless-steel M8 × 1 housing and M8 connector. Its high protection rating and wide temperature range make it suitable for demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES218 IEB3006-APKG/V4A/AS is an inductive proximity sensor designed for reliable and repeatable detection of metallic objects without physical contact. IFM specifies this model for industrial, mobile, cooling and lubricating applications, making it suitable for a broad range of automation and machinery requirements.
The sensor provides a 6 mm sensing range, with a real sensing range of 6 ± 10% mm and an operating distance of 0–4.86 mm. Its increased sensing range supports dependable detection of metallic targets, while the compact M8 × 1, 30 mm housing is suitable for installations where space is restricted.
IFM IES218 inductive sensor
Model: IEB3006-APKG/V4A/AS
6 mm sensing range
Real sensing range: 6 ± 10% mm
Operating distance: 0–4.86 mm
Increased sensing range
DC PNP electrical design
Normally-closed output
10–30 V DC operating voltage
800 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded construction
30 mm overall length
Non-flush mountable design
Stainless-steel housing
M8 connector
Gold-plated connector contacts
Four yellow switching-status LEDs
IP65, IP66, IP67, IP68 and IP69K protection with suitable IFM socket
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for industrial applications
Suitable for mobile applications
Suitable for cooling and lubrication applications
The IES218 operates using an inductive proximity sensing principle. When a suitable metallic target enters the sensing zone, the sensor detects the target and switches its PNP normally-closed output.
The switching signal can be connected to compatible PLCs, industrial controllers and automation equipment for machine position detection, component monitoring, object presence detection and automated process control.
The IES218 provides a 6 mm sensing range and an 800 Hz switching frequency, supporting reliable repetitive metal detection in industrial automation applications.
The documented correction factors are 1 for steel, 0.7 for stainless steel, 0.5 for brass, 0.5 for aluminium and 0.4 for copper. These values should be considered when selecting the sensor for applications involving different metallic target materials.
The IES218 uses a stainless-steel 1.4404 / 316L housing with an M8 × 1 threaded construction and 30 mm overall length. It is designed for non-flush mounting.
The sensor uses an M8 connector with gold-plated contacts, providing a practical connection solution for industrial sensor cabling. Four yellow LEDs provide switching-status indication for convenient installation and maintenance.
Machine Position Detection
The IES218 can detect metallic machine components, fixtures and moving parts to provide reliable position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces during automated production processes.
Mobile Machinery
The sensor is suitable for specified mobile applications requiring dependable inductive detection.
Cooling and Lubrication Applications
The IES218 can be used in suitable cooling and lubrication environments where reliable non-contact metal detection is required.
Factory Automation
The sensor can be integrated into automated machinery alongside PLCs, controllers, drives and other industrial sensors.
The IES218 combines a 6 mm sensing range, increased sensing range and 800 Hz switching frequency for dependable repetitive metal detection.
Its -40 °C to +85 °C operating temperature range and IP65/IP66/IP67/IP68/IP69K protection ratings support operation in demanding industrial environments. IFM documentation also specifies resistance to vibration, shock, continuous shock, rapid temperature changes and salt spray.
The IES218 can be incorporated into Industrial Automation UAE systems requiring reliable inductive proximity detection.
It can operate alongside Industrial Automation Components UAE, PLCs, control panels, actuators, drives and other Industrial Sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IES218 provides a compact and dependable sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES218 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3006-APKG/V4A/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 800 Hz |
| Sensing Range | 6 mm |
| Real Sensing Range (Sr) | 6 ± 10% mm |
| Operating Distance | 0–4.86 mm |
| Increased Sensing Range | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.5 |
| Correction Factor – Copper | 0.4 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 30 mm |
| Mounting | Non-flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Connection | 1 × M8 connector |
| Connector Contacts | Gold-plated |
| Switching Status Indication | 4 × yellow LED, 90° arrangement |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K* |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc |
| Shock Resistance | EN 60068-2-27 Ea |
| Continuous Shock Resistance | EN 60068-2-27 |
| Fast Temperature Change Resistance | EN 60068-2-14 Na |
| Salt Spray Resistance | EN 60068-2-52 Kb, Severity Level 5 |
| MTTF | Approx. 1443 years |
| UL Approval | Yes |
| UL Ambient Temperature | -25 °C to +80 °C |
| UL Enclosure Type | Type 1 |
| UL Approval Number | A017 |
| UL File Number | E174191 |
| Weight | Approx. 16.4 g |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial applications, mobile machinery, cooling and lubrication applications, machine position detection, metal detection and factory automation |
