The IFM IES217 IEB3003BAPKG/V4A/AS is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial, mobile, cooling and lubrication applications. It features a 3 mm sensing range, PNP normally-closed output, 10–30 V DC operation, 1500 Hz switching frequency, M8 × 1 stainless-steel housing and M8 connector. Its increased sensing range and robust construction make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES217 IEB3003BAPKG/V4A/AS is an inductive proximity sensor designed for reliable and repeatable non-contact detection of metallic objects in industrial machinery and automation systems.
The sensor uses inductive sensing technology to detect metallic targets without physical contact. This makes it suitable for monitoring machine components, workpieces, fixtures and moving metallic parts during repetitive automated processes.
The IES217 provides a 3 mm sensing range, with a real sensing range of 3 ± 10% mm and an operating distance of 0–2.43 mm. Its increased sensing range supports reliable detection while the compact M8 × 1 / 30 mm threaded construction is suitable for installations where space is limited.
IFM IES217 inductive sensor
Model: IEB3003BAPKG/V4A/AS
3 mm sensing range
Real sensing range: 3 ± 10% mm
Operating distance: 0–2.43 mm
Increased sensing range
DC PNP electrical design
Normally-closed output
10–30 V DC operating voltage
1500 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded construction
30 mm overall length
Flush-mountable design
Stainless-steel housing
M8 A-coded connector
Gold-plated contacts
Four yellow switching-status LEDs
IP65, IP66, IP67, IP68 and IP69K protection with suitable IFM socket
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for industrial applications
Suitable for mobile applications
Suitable for cooling and lubrication applications
Suitable for factory automation
The IES217 operates using an inductive proximity sensing principle. When a suitable metallic target enters the sensing zone, the sensor detects the target and switches its PNP normally-closed output.
The switching signal can be connected to compatible PLCs, industrial controllers and automation equipment for machine position detection, component monitoring, object presence detection and automated process control.
The IES217 provides a 3 mm sensing range and a 1500 Hz switching frequency, supporting repetitive metal detection in industrial automation applications.
The documented correction factors are 1 for steel, 0.7 for stainless steel, 0.4 for brass, 0.4 for aluminium and 0.3 for copper. These values should be considered when selecting the sensor for applications involving different metallic target materials.

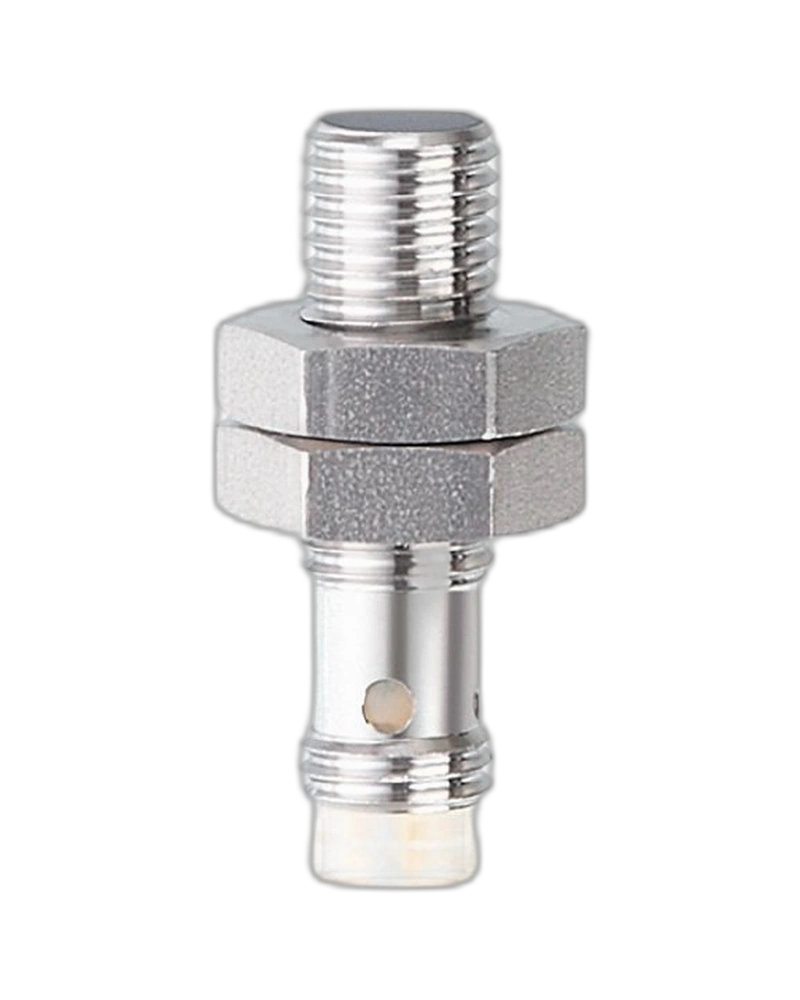

The IES217 uses a stainless-steel 1.4404 / 316L housing with an M8 × 1 threaded construction and 30 mm overall length. It is designed for flush mounting, making it suitable for compatible machine structures and fixtures.
The sensor uses an M8 connector with gold-plated contacts, providing a practical connection solution for industrial sensor cabling.
Machine Position Detection
The IES217 can detect metallic machine components, fixtures and moving parts to provide reliable position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces during automated production processes.
Mobile Machinery
The sensor is suitable for specified mobile applications requiring dependable inductive detection.
Cooling and Lubrication Applications
The IES217 can be used in suitable cooling and lubrication environments where reliable non-contact metal detection is required.
Factory Automation
The sensor can be integrated into automated machinery alongside PLCs, controllers, drives and other industrial sensors.
The IES217 combines a 3 mm sensing range, increased sensing range and 1500 Hz switching frequency for reliable repetitive metal detection.
Its wide -40 °C to +85 °C operating temperature range and high protection rating support operation in demanding industrial environments. IFM also specifies resistance to vibration, shock, continuous shock, rapid temperature changes and salt spray for this model.
The IES217 can be incorporated into Industrial Automation UAE systems requiring reliable inductive proximity detection.
It can operate alongside Industrial Automation Components UAE, PLCs, control panels, actuators, drives and other Industrial Sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IES217 provides a compact and dependable sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES217 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3003BAPKG/V4A/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 1500 Hz |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Hysteresis | 1–15% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 30 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Connector Contacts | Gold-plated |
| Switching Status Indication | 4 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K with suitable IFM socket |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc |
| Shock Resistance | EN 60068-2-27 Ea |
| Continuous Shock Resistance | EN 60068-2-27 |
| Fast Temperature Change Resistance | EN 60068-2-14 Na |
| Salt Spray Resistance | EN 60068-2-52 Kb, Severity Level 5 |
| MTTF | Approx. 1465 years |
| UL Approval | Yes |
| UL Ambient Temperature | -25 °C to +80 °C |
| UL Enclosure Type | Type 1 |
| UL Approval Number | A017 |
| UL File Number | E174191 |
| Weight | Approx. 12.95 g |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, mobile machinery, cooling and lubrication applications, machine position detection, metal detection and factory automation |
