The IFM IES215 IEB3003BBPKG/V4A/AS is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial, mobile, cooling and lubrication applications. It features a 3 mm sensing range, PNP normally-open output, 10–30 V DC operation, 1500 Hz switching frequency, M8 × 1 stainless-steel housing and M8 connector. Its increased sensing range and high protection rating make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES215 IEB3003BBPKG/V4A/AS is an inductive proximity sensor designed for reliable and repeatable detection of metallic objects without physical contact. IFM specifies this model for industrial, mobile, cooling and lubrication applications, including industrial and factory automation.
The sensor provides a 3 mm sensing range with a real sensing range of 3 ± 10% mm and an operating distance of 0–2.43 mm. Its increased sensing range supports reliable detection while the compact M8 × 1 / 30 mm threaded construction allows installation where mounting space is limited.

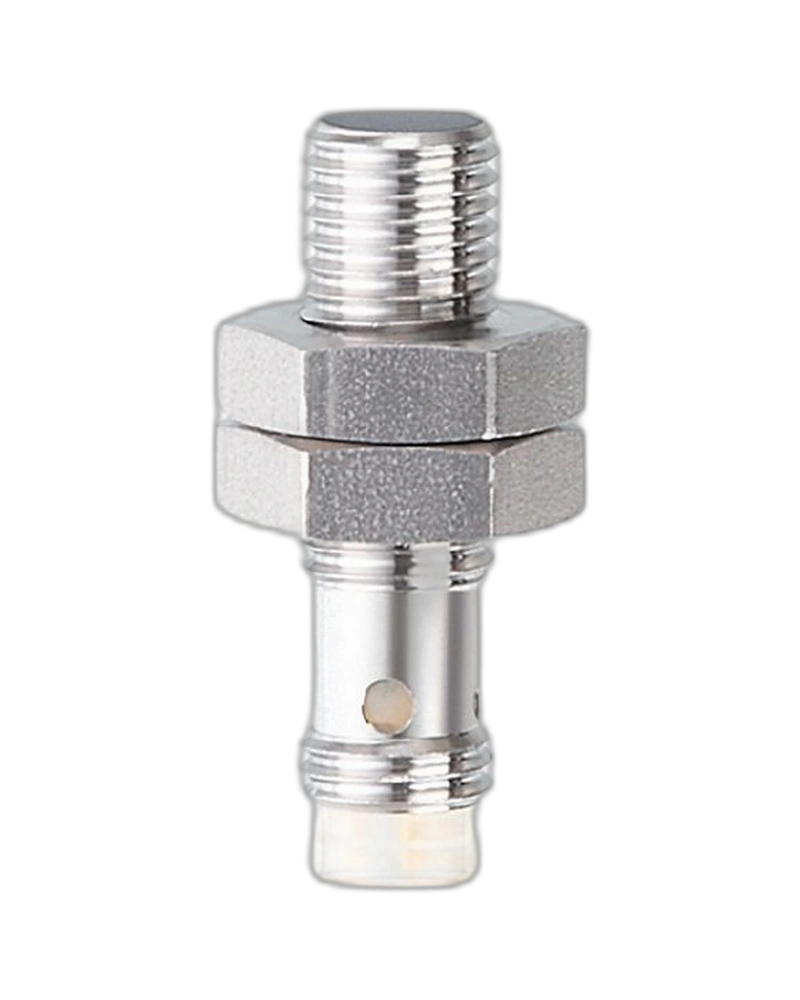

IFM IES215 inductive sensor
Model: IEB3003BBPKG/V4A/AS
3 mm sensing range
Real sensing range: 3 ± 10% mm
Operating distance: 0–2.43 mm
Increased sensing range
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
1500 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded construction
30 mm overall length
Flush-mountable design
Stainless-steel housing
M8 A-coded connector
Gold-plated contacts
IP65, IP66, IP67, IP68 and IP69K protection with suitable IFM socket
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for industrial automation
Suitable for mobile applications
Suitable for cooling and lubrication applications
The IES215 operates using an inductive proximity sensing principle. When a suitable metallic target enters the sensing zone, the sensor detects the target and switches its PNP normally-open output.
The switching signal can be connected to compatible PLCs, industrial controllers and automation equipment for machine position detection, component monitoring, object presence detection and automated process control.
The sensor provides a 3 mm sensing range and an increased sensing range, supporting dependable detection of metallic targets in automated machinery. IFM specifies a 1500 Hz switching frequency, making the sensor suitable for repetitive detection operations.
The documented correction factors are 1 for steel, 0.7 for stainless steel, 0.4 for brass, 0.4 for aluminium and 0.3 for copper. These values should be considered when selecting the sensor for applications involving different target materials.
The IES215 uses an M8 × 1 threaded housing with a 30 mm overall length and is designed for flush mounting. The compact construction makes it suitable for machinery and fixtures where installation space is restricted.
The sensor uses an M8 A-coded connector with gold-plated contacts, providing a practical industrial connection solution.
Machine Position Detection
The IES215 can detect metallic machine components, fixtures and moving parts to provide position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces during automated production processes.
Mobile Machinery
The sensor is suitable for specified mobile applications requiring reliable inductive detection.
Cooling and Lubrication Applications
It can be used in suitable cooling and lubrication environments where dependable non-contact metal detection is required.
Factory Automation
The IES215 can be integrated into automated machinery alongside PLCs, controllers, drives and other industrial sensors.
The IES215 combines a 3 mm sensing range, compact M8 construction and 1500 Hz switching frequency for reliable repetitive metal detection. Its wide operating temperature range and high protection rating make it suitable for demanding industrial environments.
The IES215 can be incorporated into Industrial Automation UAE systems requiring dependable inductive proximity detection.
It can operate alongside Industrial Automation Components UAE, PLCs, control panels, actuators, drives and other Industrial Sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IES215 provides a compact sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES215 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEB3003BBPKG/V4A/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 1500 Hz |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Hysteresis | 1–15% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 30 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel |
| Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Connector Contacts | Gold-plated |
| Connection Type | 3-wire |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K* |
| Ambient Temperature | -40 °C to +85 °C |
| Typical Applications | Industrial applications, mobile applications, cooling and lubrication applications, machine position detection, metal detection and factory automation |
| Weight | Approx. 13.2 g |
| Pack Quantity | 1 piece |
