The IFM IES214 IEB3003BBPKG/V4A/K1/0,3M/US is a robust inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and demanding machine applications. It provides a 3 mm sensing range, PNP normally-open output, 10–30 V DC operation, 2000 Hz switching frequency, K = 1 correction factor and a 0.3 m PUR cable with M12 connector.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES214 IEB3003BBPKG/V4A/K1/0,3M/US is an inductive proximity sensor designed for reliable and repeatable non-contact detection of metallic objects. It is suitable for industrial automation, mobile applications, cooling and lubrication systems, and demanding factory environments.
The sensor uses inductive sensing technology to detect metallic targets without physical contact. This makes it suitable for monitoring machine components, workpieces, fixtures and moving metallic parts during repetitive automated processes.
The IES214 provides a 3 mm sensing range, with a real sensing range of 3 ± 10% mm and an operating distance of 0–2.43 mm. Its K = 1 correction factor provides a constant sensing range across steel, stainless steel, brass, aluminium and copper.
IFM IES214 inductive sensor
Model: IEB3003BBPKG/V4A/K1/0,3M/US
3 mm sensing range
Real sensing range: 3 ± 10% mm
Operating distance: 0–2.43 mm
Increased sensing range
Correction factor K = 1
Constant sensing range for different metals
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
2000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded construction
37.5 mm overall length
Flush-mountable design
Stainless-steel housing
0.3 m PUR cable
3 × 0.14 mm² cable
M12 A-coded connector
Yellow switching-status LED
IP65, IP66, IP67, IP68 and IP69K protection
-40 °C to +85 °C ambient temperature
Magnetic-field immune
Up to 300 mT magnetic-field immunity
Reverse-polarity protection
Short-circuit protection
Overload protection
Vibration and shock resistance
Suitable for industrial automation
The IES214 operates using an inductive proximity sensing principle. When a suitable metallic target enters the sensing zone, the sensor detects the target and switches its PNP normally-open output.
The switching signal can be connected to compatible PLCs, industrial controllers and automation equipment for machine position detection, component monitoring, object presence detection and automated process control.
The IES214 provides a 3 mm sensing range and a 2000 Hz switching frequency, supporting fast and repetitive metal detection applications.
Its K = 1 correction factor provides a consistent sensing range for steel, stainless steel, brass, aluminium and copper. This can simplify sensor selection in applications where different metallic target materials may be encountered.

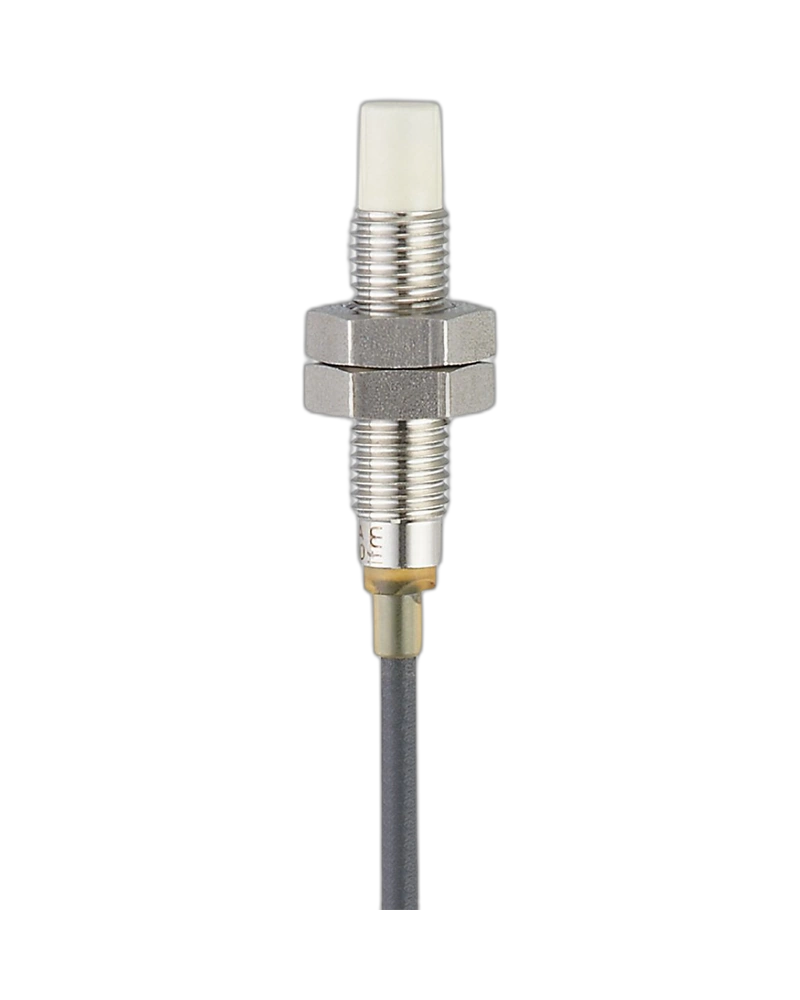

The sensor uses an M8 × 1 threaded housing with an overall length of 37.5 mm and is designed for flush mounting. Its housing is made from stainless steel 1.4404 / 316L, with a white LCP active face and PEI LED window.
The IES214 is supplied with a 0.3 m PUR cable and M12 A-coded connector, providing a compact connection arrangement for industrial machinery.
Machine Position Detection
The IES214 can detect metallic machine components, fixtures and moving parts for reliable position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces during automated production processes.
Mobile Machinery
The sensor is suitable for specified mobile applications requiring dependable inductive detection.
Cooling and Lubrication Applications
It can be used in suitable cooling and lubrication environments where reliable non-contact metal detection is required.
Factory Automation
The sensor can be integrated into automated machinery alongside PLCs, controllers, drives and other industrial sensors.
The IES214 combines a 3 mm sensing range, 2000 Hz switching frequency and K = 1 correction factor for reliable repetitive metal detection.
Its -40 °C to +85 °C ambient temperature range, magnetic-field immunity and IP65/IP66/IP67/IP68/IP69K protection ratings support operation in demanding industrial environments.
The IES214 can be incorporated into Industrial Automation UAE systems requiring reliable inductive proximity detection.
It can operate alongside Industrial Automation Components UAE, PLCs, control panels, actuators, drives and other Industrial Sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IES214 provides a compact and dependable sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES214 |
| Manufacturer | IFM |
| Model / Part Number | IEB3003BBPKG/V4A/K1/0,3M/US |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 2000 Hz |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Correction Factor K | 1 |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 1 |
| Correction Factor – Brass | 1 |
| Correction Factor – Aluminium | 1 |
| Correction Factor – Copper | 1 |
| Hysteresis | 3–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Magnetic Field Immunity | Yes |
| Maximum Magnetic Field Immunity | 300 mT |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 37.5 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Active Face Material | LCP, white |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Connection Cable | 0.3 m PUR cable |
| Cable Cross Section | 3 × 0.14 mm² |
| Connector | 1 × M12 |
| Connector Coding | A-coded |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc |
| Shock Resistance | EN 60068-2-27 Ea |
| Continuous Shock Resistance | EN 60068-2-29 Eb |
| Fast Temperature Change Resistance | EN 60068-2-14 Na |
| Salt Spray Resistance | EN 60068-2-52 Kb, Severity Level 5 |
| Tightening Torque | A = 6 mm: 2 Nm; B: 5 Nm |
| Weight | Approx. 31.4 g |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, mobile applications, cooling and lubrication applications, machine position detection, metal detection and factory automation |
