The IFM IES209 IEB3006-ANKG/V4A/K1/2M/PUR is a robust inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and factory applications. It provides a 6 mm sensing range, DC NPN normally-open output, 10–30 V DC operation, 2000 Hz switching frequency, K = 1 correction factor and a 2 m PUR cable, making it suitable for machine position detection, metal detection and repetitive automation processes.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES209 IEB3006-ANKG/V4A/K1/2M/PUR is an inductive proximity sensor designed for reliable and repeatable non-contact detection of metallic objects. It is intended for industrial applications, factory automation and applications involving cooling and lubrication.
The sensor uses inductive sensing technology to detect metallic targets without physical contact. This makes it suitable for monitoring machine components, workpieces, fixtures and moving metallic parts during repetitive automated processes.
The IES209 provides a 6 mm sensing range, with a real sensing range of 6 ± 10% mm and an operating distance of 0–4.86 mm. It features an increased sensing range and K = 1 correction factor, providing the same correction factor for steel, stainless steel, brass, aluminium and copper.
IFM IES209 inductive sensor
Model: IEB3006-ANKG/V4A/K1/2M/PUR
6 mm sensing range
Real sensing range: 6 ± 10% mm
Operating distance: 0–4.86 mm
Increased sensing range
Correction factor K = 1
DC NPN electrical design
Normally-open output
10–30 V DC operating voltage
2000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded construction
37.5 mm overall length
Non-flush mountable
2 m PUR cable
3-wire connection
Stainless-steel construction
Yellow switching-status LED
IP65, IP66, IP67, IP68 and IP69K protection
-40 °C to +85 °C ambient temperature
Magnetic-field immune
Maximum magnetic-field immunity of 300 mT
Suitable for industrial applications
Suitable for factory automation
The IES209 operates using an inductive proximity sensing principle. When a suitable metallic target enters the sensing zone, the sensor detects the target and switches its NPN normally-open output.
The switching signal can be connected to compatible PLCs, industrial controllers and automation equipment for machine position monitoring, component detection, object presence detection and automated process control.
The IES209 provides a 6 mm sensing range and a 2000 Hz switching frequency, making it suitable for repetitive and high-speed metal detection applications.
Its K = 1 correction factor provides a consistent sensing range for steel, stainless steel, brass, aluminium and copper. The sensor is also specified as magnetic-field immune up to 300 mT.

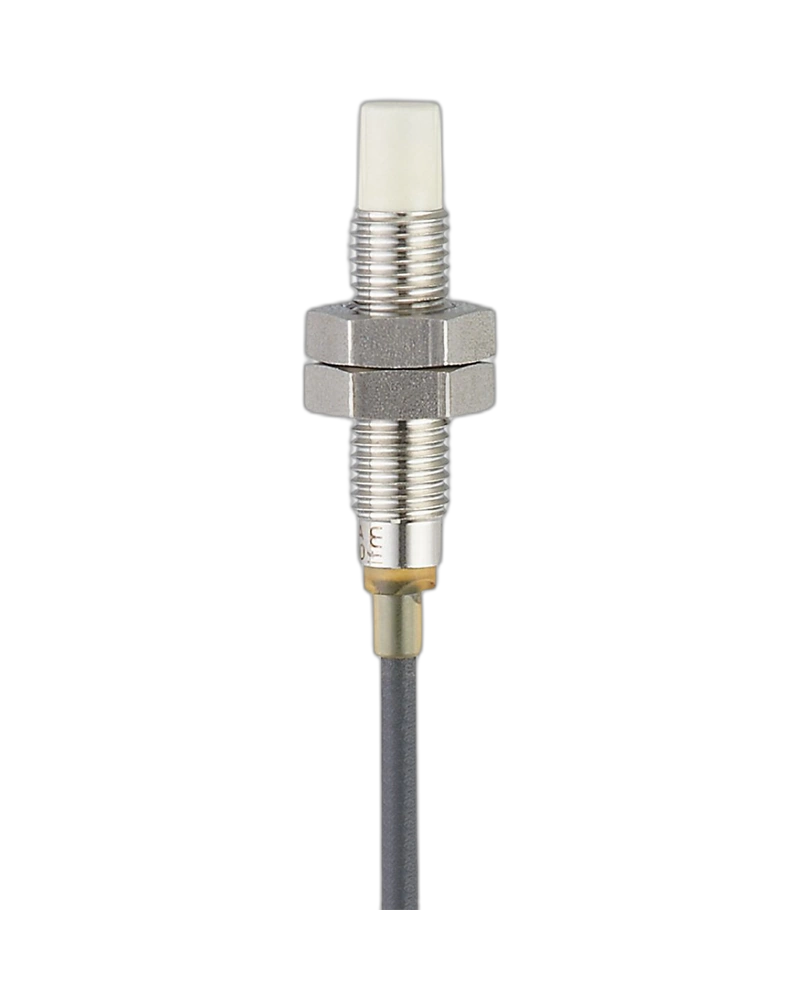

The sensor uses an M8 × 1 threaded housing with an overall length of 37.5 mm and is designed for non-flush mounting.
The IES209 is supplied with a 2 m PUR cable with 3 × 0.14 mm² conductors, providing practical installation flexibility for industrial machinery.
Machine Position Detection
The IES209 can detect metallic machine components, fixtures and moving parts for reliable position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces during automated production processes.
Factory Automation
The sensor can be integrated into automated machinery alongside PLCs, controllers, drives and other industrial sensors.
Industrial Machinery
Its high switching frequency and non-contact sensing principle make it suitable for repetitive detection tasks in industrial equipment.
Cooling and Lubrication Applications
The IES209 is also specified for suitable applications involving cooling and lubrication systems.
The IES209 combines a 6 mm sensing range, 2000 Hz switching frequency and K = 1 correction factor for dependable repetitive metal detection.
Its -40 °C to +85 °C ambient temperature range, magnetic-field immunity and IP65/IP66/IP67/IP68/IP69K protection ratings make it suitable for demanding industrial environments.
The IES209 can be incorporated into Industrial Automation UAE systems requiring reliable inductive proximity detection.
It can operate alongside Industrial Automation Components UAE, PLCs, control panels, actuators, drives and other Industrial Sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IES209 provides a compact and dependable sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES209 |
| Manufacturer | IFM |
| Model / Part Number | IEB3006-ANKG/V4A/K1/2M/PUR |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 2000 Hz |
| Sensing Range | 6 mm |
| Real Sensing Range (Sr) | 6 ± 10% mm |
| Operating Distance | 0–4.86 mm |
| Increased Sensing Range | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 1 |
| Correction Factor – Brass | 1 |
| Correction Factor – Aluminium | 1 |
| Correction Factor – Copper | 1 |
| Correction Factor K | 1 |
| Magnetic Field Immunity | Yes |
| Maximum Magnetic Field Immunity | 300 mT |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 37.5 mm |
| Mounting | Non-flush mountable |
| Housing Material | Stainless Steel |
| Connection Cable | 2 m PUR cable |
| Cable Cross Section | 3 × 0.14 mm² |
| Connection | 3-wire cable |
| Core Colours | BK = black, BN = brown, BU = blue |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| MTTF | Approx. 701 years |
| Weight | Approx. 45 g |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial applications, factory automation, machine position detection, metal detection, cooling and lubrication applications |
