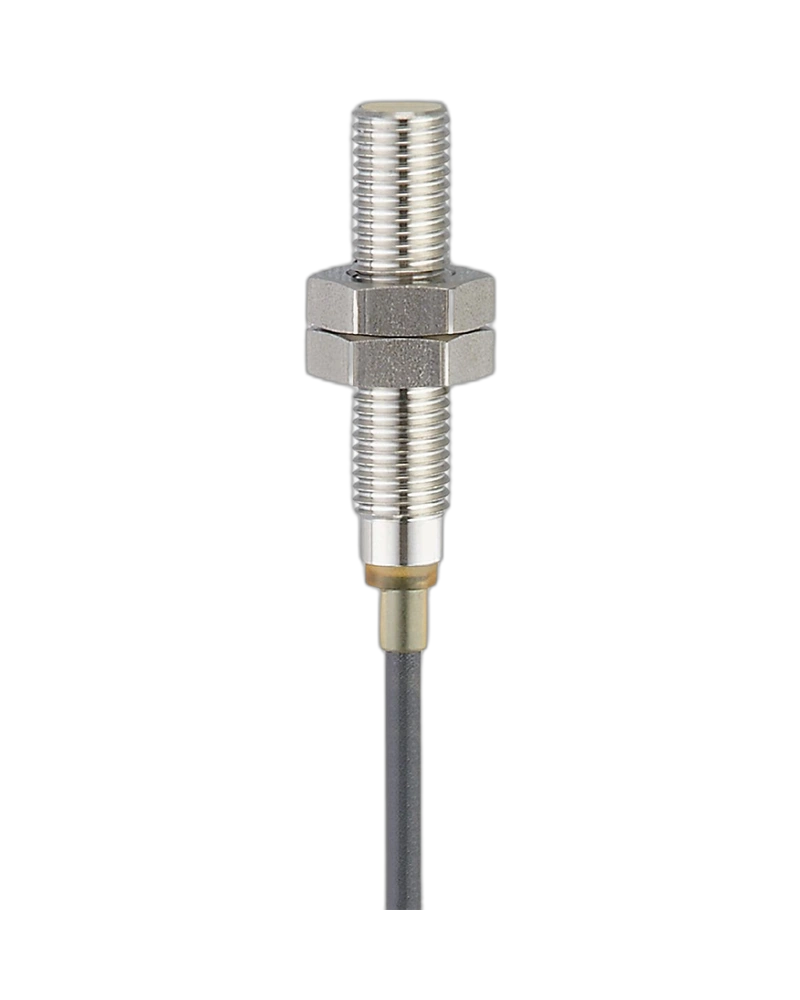

The IFM IES208 IEB3003BANKG/V4A/K1/2M/PUR is a robust inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial, mobile, cooling and lubrication applications. It features a 3 mm sensing range, DC NPN normally-open output, 10–30 V DC operation, 2000 Hz switching frequency, K=1 correction factor and 2 m PUR cable. Its high protection rating and stainless-steel construction make it suitable for demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES208 IEB3003BANKG/V4A/K1/2M/PUR is an inductive sensor designed for reliable and repeatable non-contact detection of metallic objects in industrial machinery, mobile equipment, cooling and lubrication applications, and factory automation systems.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repetitive monitoring of machine components, workpieces, fixtures and moving metallic parts without the mechanical wear associated with contact switches.
The IES208 provides a 3 mm sensing range and is designed for flush mounting. Its K = 1 correction factor provides the same nominal sensing range for different metals, making it useful where multiple metallic target materials may be encountered.
IFM IES208 inductive sensor
Model: IEB3003BANKG/V4A/K1/2M/PUR
3 mm sensing range
Increased sensing range
Correction factor K = 1
Constant sensing range for all metals
DC NPN electrical design
Normally-open output
10–30 V DC operating voltage
2000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded construction
37.5 mm overall length
Flush-mountable construction
2 m PUR cable
3 × 0.14 mm² cable
Stainless-steel construction
Yellow switching-status LED
IP65, IP66, IP67, IP68 and IP69K protection
-40 °C to +85 °C ambient temperature
Magnetic-field immunity
Up to 300 mT magnetic-field immunity
Vibration and shock resistant
Suitable for industrial applications
Suitable for mobile applications
Suitable for cooling and lubrication applications
The IES208 operates using an inductive sensing principle. When a suitable metallic target enters the sensing zone, the sensor detects the target and switches its NPN normally-open output.
The switching signal can be connected to compatible PLCs, industrial controllers and automation equipment for machine position monitoring, component detection, object presence detection and automated process control.
The sensor provides a 3 mm sensing range and a 2000 Hz switching frequency, supporting repetitive metal detection in automated machinery.
The K = 1 correction factor provides a consistent sensing range across different metals. This can simplify application design where steel, stainless steel, brass, aluminium or copper targets may be detected.
The IES208 uses an M8 × 1 threaded construction with an overall length of approximately 37.5 mm and is suitable for flush mounting.
The sensor is supplied with a 2 m PUR cable with 3 × 0.14 mm² conductors, providing practical connection flexibility for industrial machinery.
Machine Position Detection
The IES208 can detect metallic machine components, fixtures and moving parts for position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces during automated production processes.
Mobile Machinery
The sensor is suitable for specified mobile applications requiring reliable inductive detection.
Cooling and Lubrication Applications
It can be used in suitable cooling and lubrication environments where dependable metal detection is required.
Factory Automation
The sensor can be integrated into automated machinery alongside PLCs, controllers, drives and other industrial sensors.
The IES208 combines a 3 mm sensing range, 2000 Hz switching frequency and K = 1 correction factor for reliable repetitive metal detection.
Its -40 °C to +85 °C ambient temperature range, magnetic-field immunity and high protection rating support operation in demanding industrial environments.
The IES208 can be incorporated into Industrial Automation UAE systems requiring reliable inductive proximity detection.
It can operate alongside Industrial Automation Components UAE, PLCs, control panels, actuators, drives and other Industrial Sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IES208 provides a practical sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES208 |
| Manufacturer | IFM |
| Model / Part Number | IEB3003BANKG/V4A/K1/2M/PUR |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 2000 Hz |
| Sensing Range | 3 mm |
| Real Sensing Range | 3 ± 10% mm |
| Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Correction Factor K | 1 |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 1 |
| Correction Factor – Brass | 1 |
| Correction Factor – Aluminium | 1 |
| Correction Factor – Copper | 1 |
| Magnetic Field Immunity | Yes |
| Maximum Magnetic Field Immunity | 300 mT |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 37.5 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel |
| Connection Cable | 2 m PUR cable |
| Cable Cross Section | 3 × 0.14 mm² |
| Connection | Cable |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | Yes |
| Shock Resistance | Yes |
| Typical Applications | Industrial applications, mobile applications, cooling and lubrication applications, machine position detection, metal detection and factory automation |
| Weight | Approx. 44.45 g |
| Pack Quantity | 1 piece |
