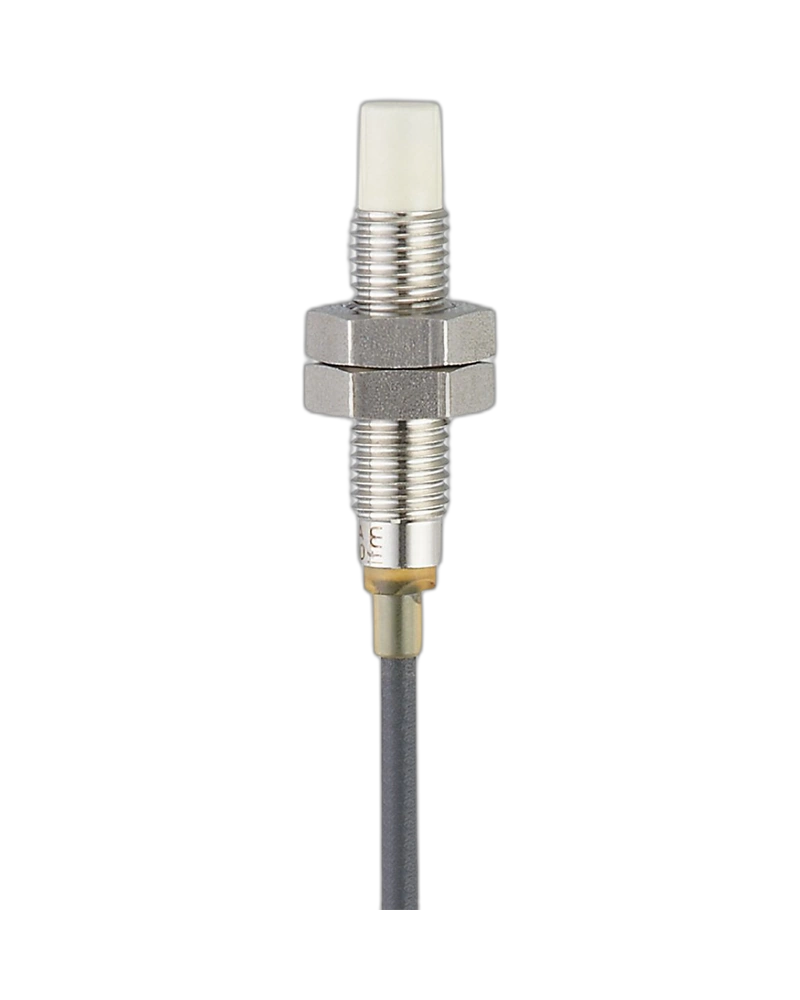

The IFM IES207 IEB3006-BNKG/V4A/K1/2M/PUR is an inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and demanding industrial applications. It features a 6 mm sensing range, DC NPN normally-closed output, 10–30 V DC operation, 2000 Hz switching frequency, correction factor K = 1 and a 2 m PUR cable.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES207 IEB3006-BNKG/V4A/K1/2M/PUR is an inductive sensor designed for reliable and repeatable detection of metallic objects without physical contact. It is suitable for industrial machinery, mobile applications, cooling and lubrication technologies, and factory automation.
The sensor provides a 6 mm sensing range with an increased sensing range and correction factor K = 1. This correction factor provides a consistent sensing range across different metallic target materials, making the sensor practical for applications where various metals may be detected.
IFM IES207 inductive sensor
Model: IEB3006-BNKG/V4A/K1/2M/PUR
6 mm sensing range
Increased sensing range
Correction factor K = 1
DC NPN electrical design
Normally-closed output
10–30 V DC operating voltage
2000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded construction
37.5 mm overall length
Non-flush mountable
2 m PUR cable
3-wire connection
Stainless-steel construction
Yellow switching-status LED
IP65, IP66, IP67, IP68 and IP69K protection
-40 °C to +85 °C ambient temperature
Magnetic-field immune
Maximum electromagnetic field immunity of 300 mT
Suitable for industrial applications
Suitable for mobile applications
Suitable for cooling and lubrication applications
The IES207 operates using an inductive proximity sensing principle. When a suitable metallic target enters the sensor's sensing zone, the sensor detects the target and switches its NPN normally-closed output.
The switching signal can be connected to compatible PLCs, industrial controllers and automation equipment for machine position detection, component monitoring and automated process control.
The IES207 provides a 6 mm sensing range and supports a 2000 Hz switching frequency, making it suitable for repetitive and high-speed metal detection applications.
Its K = 1 correction factor is an important feature, providing a consistent sensing range for different metallic materials. The sensor is also designed to be immune to magnetic fields up to 300 mT.
The sensor uses an M8 × 1 threaded housing with an overall length of 37.5 mm. It is designed for non-flush mounting and provides a compact solution for industrial machinery and automation equipment.
The IES207 is supplied with a 2 m PUR cable and 3-wire connection, providing convenient installation in industrial control systems.
Machine Position Detection
The IES207 can detect metallic machine components, fixtures and moving parts for position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces during automated production processes.
Mobile Machinery
The sensor is suitable for specified mobile applications where reliable inductive detection is required.
Cooling and Lubrication Systems
The sensor can be used in suitable cooling and lubrication technologies where non-contact metal detection is required.
Factory Automation
The IES207 can be integrated into automated machinery alongside PLCs, controllers, drives and other industrial sensors.
The IES207 combines a 6 mm sensing range, 2000 Hz switching frequency and K = 1 correction factor to provide reliable repetitive metal detection.
Its wide -40 °C to +85 °C ambient temperature range, magnetic-field immunity and high protection ratings make it suitable for demanding industrial environments.
The IES207 can be incorporated into Industrial Automation UAE systems requiring reliable inductive proximity detection.
It can operate alongside Industrial Automation Components UAE, PLCs, control panels, actuators, drives and other Industrial Sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IES207 provides a compact and dependable sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES207 |
| Manufacturer | IFM |
| Model / Part Number | IEB3006-BNKG/V4A/K1/2M/PUR |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC NPN |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 2000 Hz |
| Sensing Range | 6 mm |
| Increased Sensing Range | Yes |
| Correction Factor K | 1 |
| Magnetic Field Immunity | Yes |
| Maximum Electromagnetic Field Immunity | 300 mT |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 37.5 mm |
| Mounting | Non-flush mountable |
| Housing Material | Stainless steel |
| Connection Cable | 2 m PUR cable |
| Connection | 3-wire |
| Switching Status Indication | 1 × yellow LED |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| Typical Applications | Industrial applications, mobile applications, cooling and lubrication technologies, machine position detection, metal detection and factory automation |
| Weight | 45 g |
| Pack Quantity | 1 piece |
