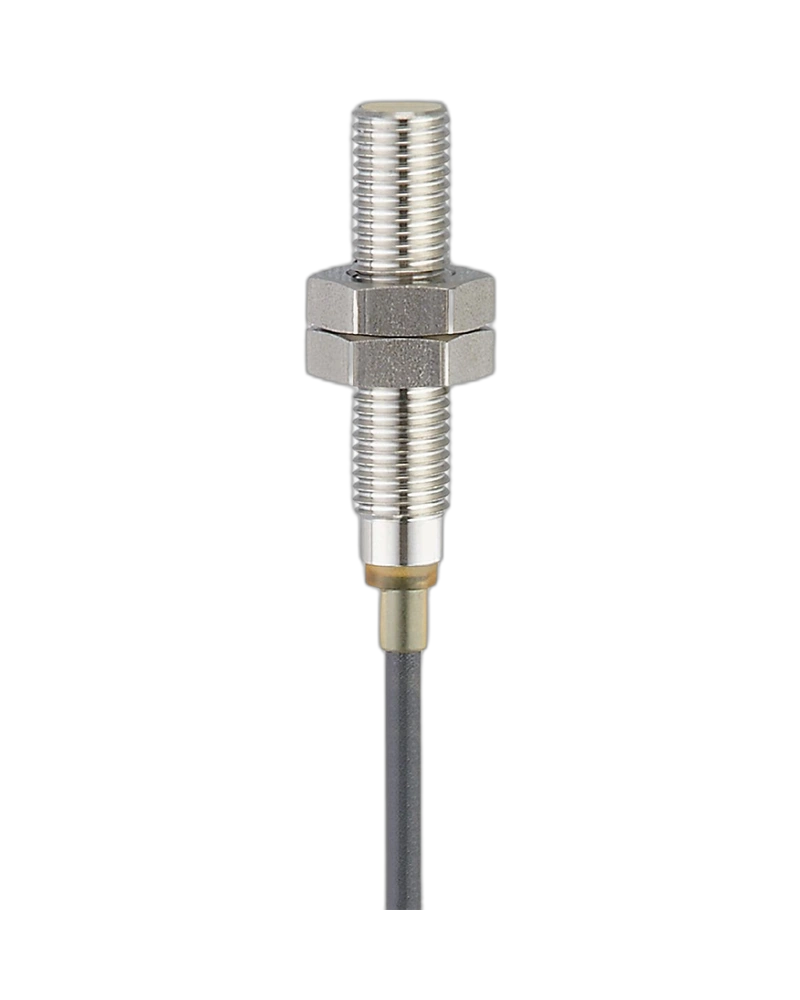

The IFM IES204 IEB3003BAPKG/V4A/K1/2M/PUR inductive sensor is designed for reliable non-contact detection of metallic objects in industrial automation, machine tools and factory production applications. It features a 3 mm sensing range, PNP normally-closed output, 10–30 V DC operation, M8 × 1 threaded housing, 2 m PUR cable and up to IP69K protection. Its increased sensing range, correction factor K=1 and magnetic-field immunity make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES204 IEB3003BAPKG/V4A/K1/2M/PUR inductive sensor is engineered for reliable and repeatable non-contact detection of metallic objects in industrial automation, machine tools, manufacturing equipment and factory production systems. Its compact M8 × 1 threaded housing and robust construction make it suitable for applications where dependable metal detection is required in restricted installation spaces.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This non-contact operating principle allows machine components, workpieces, tooling elements and moving metallic parts to be detected repeatedly without mechanical wear.
The IES204 provides a 3 mm sensing range, with a real sensing range of 3 ± 10% mm and an operating distance of 0–2.43 mm. Its increased sensing range provides reliable target detection while maintaining a compact M8 × 1 housing with an overall length of 37.5 mm.
IFM IES204 inductive sensor
Model: IEB3003BAPKG/V4A/K1/2M/PUR
3 mm sensing range
Real sensing range: 3 ± 10%
Operating distance: 0–2.43 mm
Increased sensing range
Correction factor K=1
Magnetic-field immunity
DC PNP electrical design
Normally-closed output
10–30 V DC operating voltage
2000 Hz switching frequency
200 mA permanent switching current
M8 × 1 threaded housing
37.5 mm overall length
Flush-mountable installation
2 m PUR cable
3-wire electrical connection
Stainless-steel housing
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching-status indication
The IES204 operates using an inductive sensing principle, detecting metallic targets without physical contact. When a suitable metallic object enters the sensing zone, the sensor changes the state of its PNP normally-closed output.
Its M8 × 1 threaded construction and 37.5 mm length provide a compact design for machine structures, fixtures and automation equipment where installation space is limited.
The sensor is designed for flush mounting, allowing it to be integrated neatly into compatible machine structures while maintaining the specified sensing performance.
The IES204 provides a 3 mm nominal sensing range and an increased sensing range design.
Its correction factor K=1 provides a uniform sensing range across different metallic materials, which can simplify sensor application and integration where multiple metal types may be detected.
The real sensing range is specified as 3 ± 10% mm, with an operating distance of 0–2.43 mm.
The sensor is also designed to provide immunity to magnetic fields, making it suitable for industrial applications where magnetic-field exposure can be a consideration.
The IES204 uses a DC PNP normally-closed output, making it suitable for compatible PLCs, industrial controllers and automation systems.
The sensor operates from 10–30 V DC and supports a permanent switching current of 200 mA. Its maximum switching frequency is 2000 Hz, making it suitable for fast repetitive detection tasks in automated machinery.
The IES204 is supplied with a 2 m PUR cable and uses a 3-wire electrical connection.
The cable construction is specified as 2 m PUR, 3 × 0.14 mm², with the documented wire colours being black, brown and blue. This provides a practical direct-wired connection for compatible industrial control systems.
The IES204 can be incorporated into a wide range of Industrial Automation UAE applications requiring reliable non-contact detection of metallic objects.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanical parts.
Metal Component Detection
It can detect metallic workpieces and components during manufacturing, assembly and production processes.
Conveyor Automation
The IES204 can monitor metallic objects moving through conveyor systems and provide switching feedback to the control system.
Machine Tool Automation
Its compact construction and robust protection make it suitable for machine tools and automated manufacturing equipment.
Assembly Machinery
The sensor can confirm the presence or position of metallic components during automated assembly operations.
Production Monitoring
It can provide reliable proximity feedback for production machinery, automated counting and machine-control functions.
The IES204 is designed for demanding industrial environments and is suitable for industrial, mobile, cooling and lubrication applications. Its elevated protection rating helps support reliable operation where exposure to environmental contaminants and industrial fluids may occur.
The sensor operates across an ambient temperature range of -40 °C to +85 °C, providing a broad operating range for industrial machinery. Its protection ratings extend from IP65 through IP69K, supporting applications requiring high levels of environmental protection.
The IES204 features an M8 × 1 threaded housing with an overall length of 37.5 mm.
Its compact dimensions make it suitable for machine structures and automation equipment where available installation space is restricted. The flush-mountable construction also allows the sensor to be integrated into compatible metal structures.
The IES204 can be integrated into Industrial Automation systems in UAE, providing proximity feedback to PLCs, controllers and machine-control systems.
It can operate alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, drives, switches and other industrial sensors.
For Industrial Automation Suppliers UAE, the IES204 provides a compact and high-speed inductive sensing solution for machine builders, system integrators and manufacturing facilities.
Compact M8 × 1 threaded housing
37.5 mm overall length
3 mm sensing range
Increased sensing range
Correction factor K=1
Magnetic-field immunity
PNP normally-closed output
10–30 V DC operation
2000 Hz switching frequency
200 mA permanent switching current
Flush-mountable construction
2 m PUR cable
3-wire connection
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection
-40 °C to +85 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching-status indication
The IFM IES204 IEB3003BAPKG/V4A/K1/2M/PUR is a compact, high-speed inductive sensor designed for reliable metal detection in industrial automation, machine tools and factory production applications. Its 3 mm sensing range, PNP normally-closed output, K=1 correction factor, magnetic-field immunity, 2 m PUR cable and IP69K protection make it suitable for demanding industrial environments.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IES204 |
| Manufacturer | IFM |
| Model / Part Number | IEB3003BAPKG/V4A/K1/2M/PUR |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Correction Factor | K = 1 |
| Magnetic-Field Immunity | Yes |
| Maximum Switching Output Voltage Drop | 2.5 V |
| Permanent Switching Current | 200 mA |
| Switching Frequency | 2000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 37.5 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.14 mm² |
| Electrical Connection | 3-wire cable |
| Wire Colours | BK = Black, BN = Brown, BU = Blue |
| Status Indication | 1 × yellow LED |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Ambient Temperature | -40 °C to +85 °C |
| Application | Industrial applications, mobile applications, cooling and lubrication |
| Special Features | Increased sensing range, correction factor K=1, magnetic-field immunity |
| Typical Applications | Industrial automation, machine tools, metal detection, machine control, conveyor systems and factory automation |
| Weight | Approx. 45 g |
| GTIN | 4021179312950 |
| Pack Quantity | 1 piece |
| Included Accessories | 2 lock nuts |
