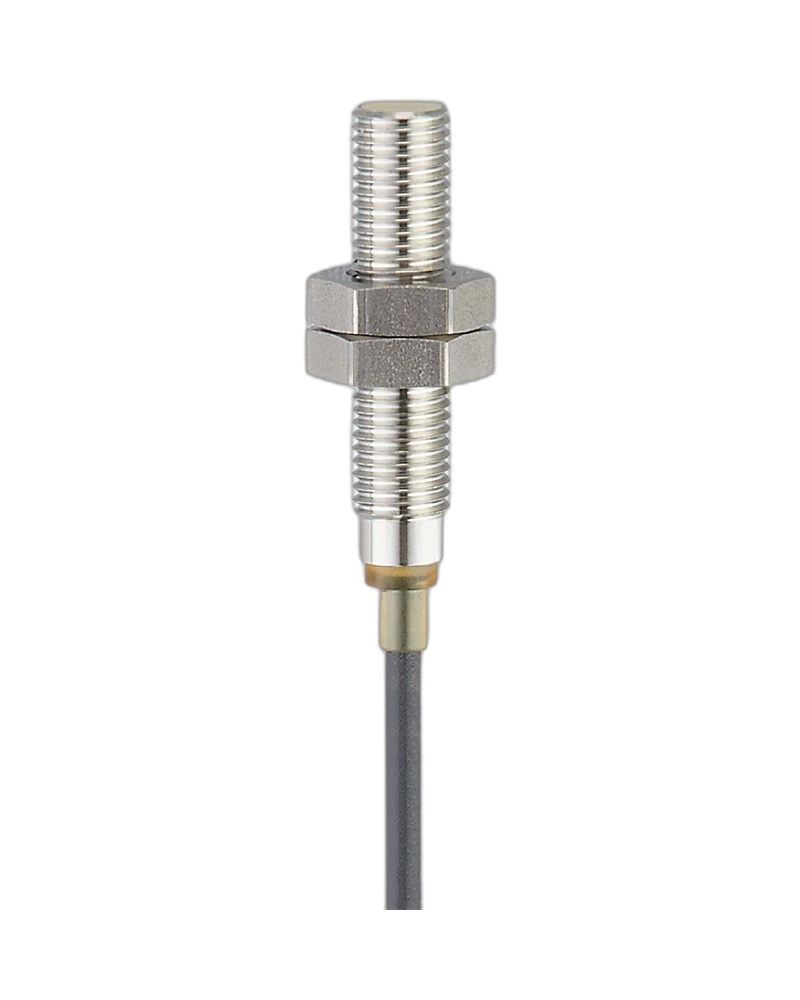

The IFM IES202 IEB3003BBPKG/V4A/K1/2M/PUR inductive sensor is a robust stainless-steel proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machinery. With a 3 mm sensing range, PNP normally-open output, 10–30 V DC operation, 1000 Hz switching frequency and 2 m PUR cable, it is suitable for machine position detection, production equipment, conveyors and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IES202 IEB3003BBPKG/V4A/K1/2M/PUR is an inductive proximity sensor designed for reliable and repeatable non-contact detection of metallic objects in industrial machinery, production equipment and automated manufacturing systems.
The sensor uses inductive sensing technology to detect metallic targets without physical contact. This makes it suitable for continuous detection of machine components, workpieces, fixtures and moving metal parts while avoiding the mechanical wear associated with contact switches.
The IES202 provides a 3 mm sensing range with an operating distance of up to 2.43 mm. Its compact threaded construction allows it to be integrated into suitable machine structures where reliable metal detection is required.
The sensor features a DC PNP normally-open output and operates from a 10–30 V DC supply. With a 1000 Hz switching frequency, it can support repetitive detection operations in automated machinery and production systems.
IFM IES202 inductive sensor
Model: IEB3003BBPKG/V4A/K1/2M/PUR
3 mm sensing range
Increased sensing range
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
1000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
Stainless-steel housing
2 m PUR cable
Gold-plated connector contacts
Four yellow switching-status LEDs
IP65, IP66, IP67, IP68 and IP69K protection with suitable socket
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for industrial automation
Suitable for machine position detection
Suitable for factory automation
The IES202 operates using an inductive proximity sensing principle. When a suitable metallic target enters the sensor's detection zone, the sensor responds by switching its PNP normally-open output.
The switching signal can be connected to compatible PLCs, industrial controllers and automation equipment to provide feedback for machine sequencing, position monitoring, object detection and production control.
The sensor provides a 3 mm nominal sensing range and an operating distance of up to 2.43 mm.
Its increased sensing range allows reliable detection of metallic targets while maintaining a compact sensor design. The sensor can detect different metallic materials, with the effective sensing distance depending on the material and its correction factor.
The IES202 uses a compact threaded sensor construction suitable for installation in industrial machinery and automation equipment.
Its stainless-steel housing provides a robust construction for industrial environments, while the 2 m PUR cable provides convenient connection flexibility for machine installations.
Machine Position Detection
The sensor can detect metallic machine components, slides, fixtures and moving mechanisms to provide position feedback.
Metal Component Detection
It can detect the presence or absence of metallic workpieces and components during automated production.
Conveyor Systems
The IES202 can detect metallic objects moving through conveyor and material-handling systems.
Production Machinery
It can provide switching feedback for automated machinery and production processes.
Factory Automation
The sensor can be integrated into factory automation systems alongside PLCs, controllers, drives and other industrial sensors.
The IES202 is designed for repetitive metal detection in industrial automation applications. Its 3 mm sensing range and 1000 Hz switching frequency support reliable detection of metallic objects during automated machine operation.
The sensor provides electrical protection against reverse polarity, short circuit and overload, helping support dependable operation when correctly installed.
Its stainless-steel construction, industrial protection capabilities and PUR cable make it suitable for a wide range of machinery, production and factory automation applications.
The IES202 can be incorporated into Industrial Automation UAE systems requiring reliable proximity detection.
It can operate alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, drives and other industrial sensors.
For businesses looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IES202 provides a practical inductive sensing solution for industrial machinery and factory automation.
| Specification | Details |
|---|---|
| Product Code | IES202 |
| Manufacturer | IFM |
| Model / Part Number | IEB3003BBPKG/V4A/K1/2M/PUR |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Switching Frequency | 1000 Hz |
| Permanent Switching Current | 100 mA |
| Maximum Voltage Drop | 2.5 V |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 3–15% of Sr |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Housing Material | Stainless Steel |
| Connection Cable | 2 m PUR cable |
| Connector | M8 connector |
| Connector Contacts | Gold-plated |
| Switching Status Indication | 4 × yellow LED |
| Mounting | Flush mountable |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K with suitable socket |
| Ambient Temperature | Not verified for this exact model |
| Protection Class | III |
| Typical Applications | Industrial automation, machine position detection, metal component detection, conveyor systems, production machinery and factory automation |
