The IFM IES201 IEB3006-BPKG/V4A/K1/AS inductive sensor is a compact stainless-steel proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation. With a 6 mm sensing range, DC PNP normally-open output, 10–30 V DC operation and up to 2000 Hz switching frequency, it is suitable for high-speed machine detection, position monitoring and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

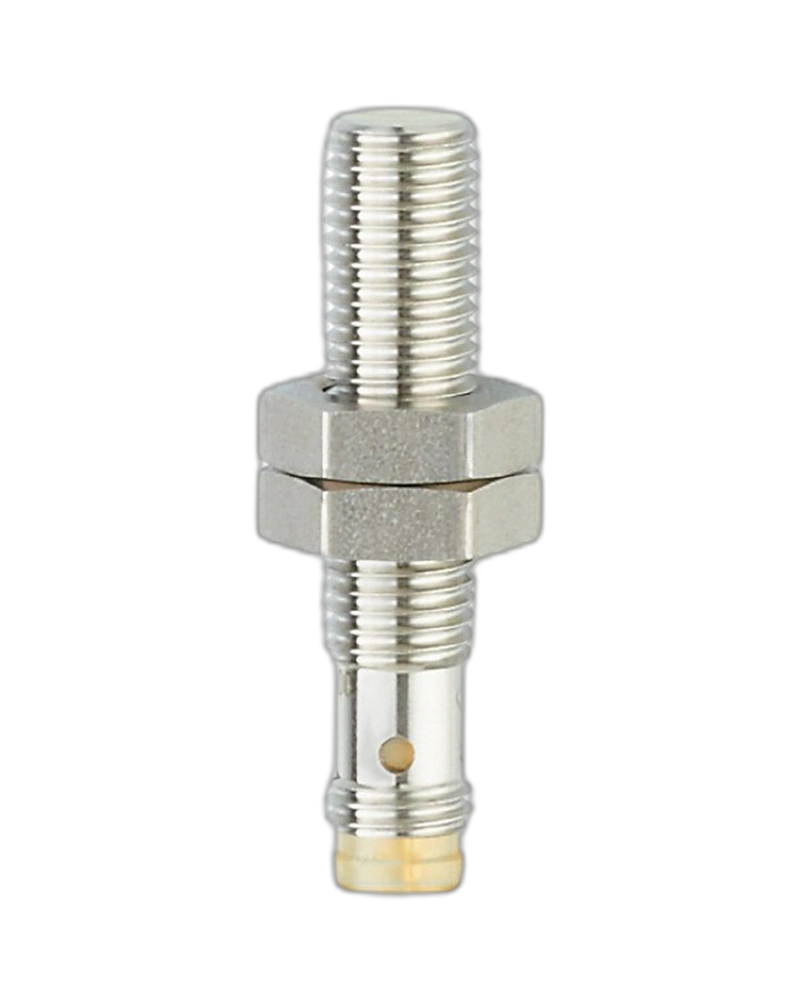

The IFM IES201 IEB3006-BPKG/V4A/K1/AS is an inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automated production systems.
The sensor uses inductive sensing technology to detect metal targets without physical contact. This makes it suitable for repetitive detection tasks such as machine position monitoring, component detection, counting and automated process control.
With a 6 mm sensing range and an operating distance of up to 4.86 mm, the IES201 provides reliable metal detection while maintaining a compact M8 × 1 threaded construction. Its 2000 Hz switching frequency makes it suitable for applications requiring fast and repetitive switching.
IFM IES201 inductive sensor
Model: IEB3006-BPKG/V4A/K1/AS
6 mm sensing range
Increased sensing range
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
2000 Hz switching frequency
100 mA permanent switching current
M8 × 1 threaded housing
40 mm overall length
Non-flush mountable
Stainless-steel housing
Gold-plated connector contacts
Four yellow switching-status LEDs
IP65, IP66, IP67, IP68 and IP69K protection with suitable socket
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
High magnetic-field immunity
Suitable for high-speed industrial detection
The IES201 operates using an inductive sensing principle. When a suitable metallic target enters the sensing zone, the sensor detects the target and switches its PNP normally-open output.
The resulting signal can be connected to compatible PLCs, controllers and industrial automation systems for machine sequencing, position feedback and object detection.
The sensor provides a 6 mm sensing range, a 0–4.86 mm operating distance and a high 2000 Hz switching frequency, making it suitable for fast-moving components and repetitive detection tasks.
Its stainless-steel construction and wide -40 °C to +85 °C operating temperature range support use in demanding industrial environments. The sensor also provides reverse-polarity, short-circuit and overload protection.
Machine Position Detection
Detects metallic machine components, slides, fixtures and moving parts for position feedback.
High-Speed Object Detection
The 2000 Hz switching frequency supports fast and repetitive detection operations.
Production Machinery
Provides reliable metal detection for automated production and assembly equipment.
Conveyor Systems
Detects metallic workpieces moving through automated conveyor processes.
Factory Automation
Can be integrated into industrial automation systems alongside PLCs, control panels, actuators and other sensors.
The IFM IES201 IEB3006-BPKG/V4A/K1/AS is a compact and high-speed inductive sensor suitable for Industrial Automation UAE, industrial machinery, production equipment and factory automation. It is also suitable for applications requiring dependable Industrial Sensors, Proximity Sensors, and Industrial Automation Components UAE.
| Specification | Details |
|---|---|
| Product Code | IES201 |
| Manufacturer | IFM |
| Model / Part Number | IEB3006-BPKG/V4A/K1/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 2000 Hz |
| Sensing Range | 6 mm |
| Real Sensing Range (Sr) | 6 ± 10% mm |
| Operating Distance | 0–4.86 mm |
| Increased Sensing Range | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 1 |
| Correction Factor – Brass | 1 |
| Correction Factor – Aluminium | 1 |
| Correction Factor – Copper | 1 |
| Correction Factor K | 1 |
| Hysteresis | 3–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Magnetic Field Immunity | Yes |
| Maximum Magnetic Field Immunity | 300 mT |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 40 mm |
| Mounting | Non-flush mountable |
| Housing Material | Stainless steel |
| Connection | 1 × M8 connector |
| Connector Contacts | Gold-plated |
| Switching Status Indication | 4 × yellow LED, 90° positions |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K* |
| Ambient Temperature | -40 °C to +85 °C |
| Vibration Resistance | EN 60068-2-6 Fc, 20 g (10–3000 Hz) |
| Shock Resistance | EN 60068-2-27 Ea, 100 g, 11 ms half-sine |
| Continuous Shock Resistance | EN 60068-2-29 Eb, 40 g, 6 ms |
| Fast Temperature Changes | EN 60068-2-14 Na |
| Salt Spray Test | EN 60068-2-52 Kb, Severity Level 5 |
| EMC | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B |
| UL Approval | Yes |
| UL Ambient Temperature | -25 °C to +80 °C |
| UL Enclosure Type | Type 1 |
| UL File Number | E174191 |
| Weight | Approx. 13.75 g |
| Accessories Included | 2 lock nuts |
| Typical Applications | Industrial automation, factory automation, mobile applications, cooling and lubrication applications, material handling and refrigerated warehouse applications |
