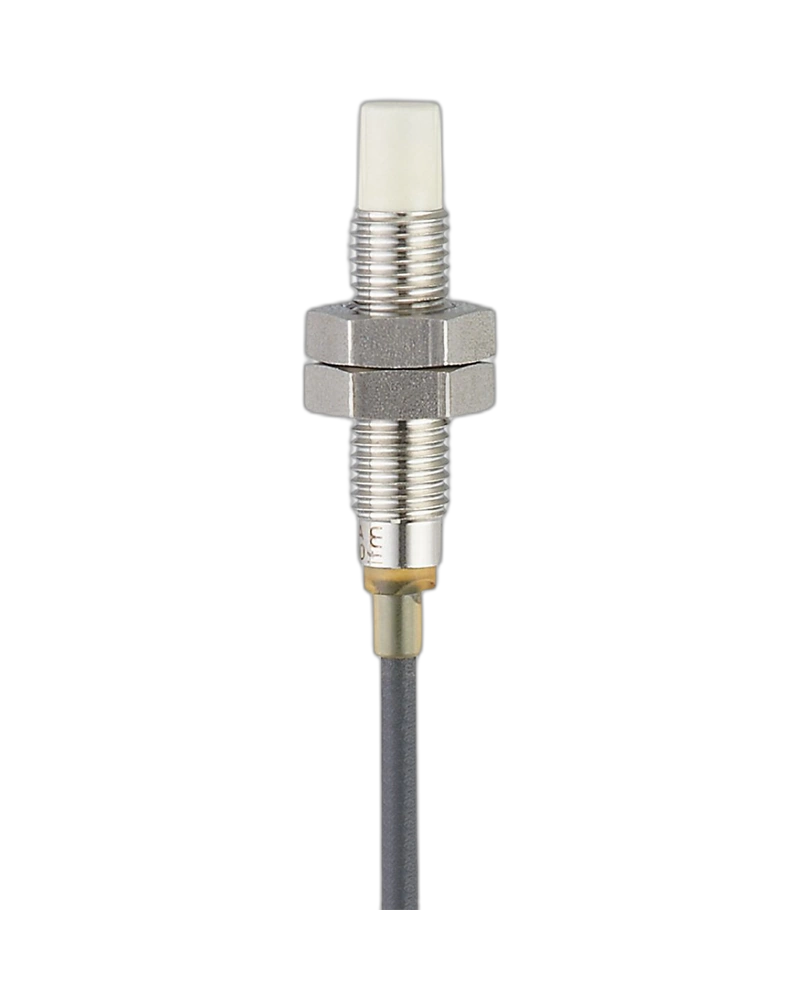

The IFM IER206 IEB2002BARKG/AM/SC/UP/0,3M/US/ is an inductive full-metal sensor designed for reliable non-contact detection of metallic objects in machine tools, metalworking equipment, welding applications and industrial automation systems. It features a 2 mm sensing range, PNP/NPN normally-open output, 10–36 V DC operation, M8 × 1 threaded full-metal housing, 0.3 m PUR cable with M12 connector and IP67 protection. Its increased sensing range, anti-spatter stainless-steel construction and optical setting aid make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IER206 IEB2002BARKG/AM/SC/UP/0,3M/US/ inductive full-metal sensor is engineered for reliable and repeatable non-contact detection of metallic objects in industrial automation, machine tools, metalworking machinery, welding equipment and factory production systems. Its robust full-metal construction makes it particularly suitable for applications where mechanical durability and resistance to welding spatter are important.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This non-contact detection principle allows machine components, workpieces, tooling elements and moving metallic parts to be detected repeatedly without mechanical wear.
The IER206 provides a 2 mm sensing range with an operating distance of 0–1.6 mm. Its increased sensing range supports dependable target detection while maintaining a compact M8 × 1 threaded housing with a 45 mm overall length.
IFM IER206 inductive full-metal sensor
Model: IEB2002BARKG/AM/SC/UP/0,3M/US/
2 mm sensing range
Operating distance: 0–1.6 mm
Increased sensing range
Full-metal housing
PNP/NPN electrical design
Normally-open output
10–36 V DC operating voltage
100 mA permanent switching current
150 Hz switching frequency
M8 × 1 threaded housing
45 mm overall length
Flush-mountable installation
0.3 m PUR cable
M12 connector
Gold-plated connector contacts
2-wire electrical connection
Stainless steel 316L / 1.4404 housing
Anti-spatter coating
Metal sensing face
Optical setting aid
1 green LED switching-status indication
1 red LED setting-aid indication
IP67 protection rating
50 bar pressure rating at sensing face
-25 °C to +70 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for welding applications
The IER206 operates using an inductive sensing principle, detecting metallic targets without physical contact. When a suitable metallic object enters the sensing zone, the sensor changes the state of its PNP/NPN normally-open switching output.
Its M8 × 1 threaded full-metal construction and 45 mm overall length provide a compact and robust solution for machine structures, fixtures and automation equipment. The sensor is designed for flush mounting, allowing it to be integrated into compatible metal structures.
The IER206 features a full-metal stainless-steel housing and sensing face designed for demanding industrial applications.
The housing, sensing face and lock nuts are specified as stainless steel 316L / 1.4404 with anti-spatter coating. This construction is particularly useful in machine tools, metalworking equipment and welding environments where welding spatter may be present.
The robust metal sensing surface is suitable for heavy-duty applications and the anti-spatter coating helps reduce the adhesion of welding slag and spatter to the sensor.
The IER206 provides a 2 mm sensing range with an operating distance of 0–1.6 mm.
Its increased sensing range provides reliable detection of suitable metallic targets while maintaining a compact sensor body.
The documented correction factors are:
Steel: 1
Stainless steel: 0.6
Brass: 0.4
Aluminium: 0.3
Copper: 0.2
The hysteresis is specified as 1–20% of Sr.
The IER206 uses a PNP/NPN normally-open electrical design, making it suitable for compatible industrial control systems.
The sensor operates from 10–36 V DC and provides a permanent switching current rating of 100 mA. Its maximum switching frequency is 150 Hz, making it suitable for repetitive metal-detection tasks in automated machinery.
The sensor also incorporates reverse-polarity, short-circuit and overload protection for dependable electrical operation when correctly installed.
The IER206 is supplied with a 0.3 m PUR cable and an M12 connector.
The cable is specified as 0.3 m PUR, 2 × 0.34 mm². The M12 connector uses gold-plated contacts, providing a practical industrial connection solution for compatible sensor cabling and automation systems.
The IER206 incorporates an optical setting aid for easier sensor adjustment and commissioning.
The sensor provides 1 green LED for switching status and 1 red LED for the setting aid, helping technicians identify operating and adjustment conditions during installation and maintenance.
The IER206 is designed for demanding applications in machine tools, metalworking and welding environments. Its anti-spatter construction and robust metal sensing face make it suitable for applications where conventional plastic-faced sensors may be less appropriate.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanical parts.
Metal Workpiece Detection
It can detect metallic workpieces and components during machining, manufacturing and production processes.
Welding Machinery
The anti-spatter construction makes the sensor suitable for applications where welding spatter may be present.
Machine Tool Automation
The compact full-metal construction can be used for automated machine-tool position and component detection.
Conveyor Automation
The sensor can monitor metallic objects moving through suitable conveyor systems.
Assembly Machinery
The IER206 can confirm the presence or position of metallic components during automated assembly operations.
Production Monitoring
It can provide proximity feedback for machine-control, counting and production-monitoring functions.
The IER206 is designed for demanding industrial environments and provides a full-metal stainless-steel housing, anti-spatter coating and metal sensing face for applications involving welding and metalworking. Its sensing face has a 50 bar pressure rating, supporting applications where the sensor may be exposed to elevated pressure.
The sensor provides IP67 protection and operates across an ambient temperature range of -25 °C to +70 °C. These characteristics make it suitable for a broad range of industrial machinery and factory automation environments.
The IER206 features an M8 × 1 threaded housing with an overall length of 45 mm.
Its compact dimensions make it suitable for machine structures and automation equipment where installation space is restricted. The flush-mountable design allows the sensor to be integrated into compatible metal structures.
The IER206 can be integrated into Industrial Automation UAE systems requiring reliable detection of metallic components and machine-position feedback.
It can operate alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, drives, switches and other industrial sensors.
For Industrial Automation Suppliers UAE, the IER206 provides a robust full-metal sensing solution for machine builders, welding-equipment manufacturers, metalworking facilities, system integrators and factory automation applications.
Full-metal stainless-steel construction
2 mm sensing range
Increased sensing range
M8 × 1 threaded housing
45 mm overall length
Flush-mountable construction
PNP/NPN normally-open output
10–36 V DC operation
150 Hz switching frequency
100 mA permanent switching current
0.3 m PUR cable
M12 connector
Gold-plated connector contacts
2-wire electrical connection
Anti-spatter coating
Metal sensing face
Optical setting aid
Green switching-status LED
Red setting-aid LED
IP67 protection
50 bar pressure rating at sensing face
-25 °C to +70 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for welding applications
Suitable for machine tools and metalworking
The IFM IER206 IEB2002BARKG/AM/SC/UP/0,3M/US/ is a compact and robust inductive full-metal sensor designed for reliable metal detection in machine tools, welding equipment, metalworking machinery and industrial automation applications. Its 2 mm sensing range, PNP/NPN normally-open output, full-metal stainless-steel construction, anti-spatter coating, 0.3 m PUR cable with M12 connector, optical setting aid and IP67 protection make it a dependable solution for demanding industrial environments.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IER206 |
| Manufacturer | IFM |
| Model / Part Number | IEB2002BARKG/AM/SC/UP/0,3M/US/ |
| Product Type | Inductive Full-Metal Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 2 mm |
| Operating Distance | 0–1.6 mm |
| Increased Sensing Range | Yes |
| Maximum Voltage Drop | 4.5 V |
| Minimum Load Current | 2 mA |
| Maximum Leakage Current | 0.75 mA |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 150 Hz |
| Short-Circuit Protection | Yes |
| Short-Circuit Protection Type | Pulsed / Non-latching |
| Overload Protection | Yes |
| Hysteresis | 1–20% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.6 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 45 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 316L / 1.4404, anti-spatter |
| Sensing Face Material | Stainless steel 316L / 1.4404, anti-spatter |
| Lock Nut Material | Stainless steel 316L / 1.4404, anti-spatter |
| Full-Metal Housing | Yes |
| Cable Length | 0.3 m |
| Cable Material | PUR |
| Cable Cross Section | 2 × 0.34 mm² |
| Electrical Connection | 2-wire cable with M12 connector |
| Connector | M12 |
| Connector Contacts | Gold-plated |
| Switching Status Indication | 1 × green LED |
| Setting Aid | 1 × red LED |
| Optical Setting Aid | Yes |
| Protection Rating | IP67 |
| Pressure Rating | 50 bar |
| Pressure Rating Location | Sensing face |
| Ambient Temperature | -25 °C to +70 °C |
| Application | Machine tools, metalworking and welding applications |
| Special Features | Increased sensing range, full-metal housing, optical setting aid and anti-spatter construction |
| Typical Applications | Industrial automation, machine tools, welding equipment, metalworking, metal detection and machine control |
| Weight | Approx. 35.9 g |
| GTIN | 4021179253475 |
| Included Accessories | 2 lock nuts |
