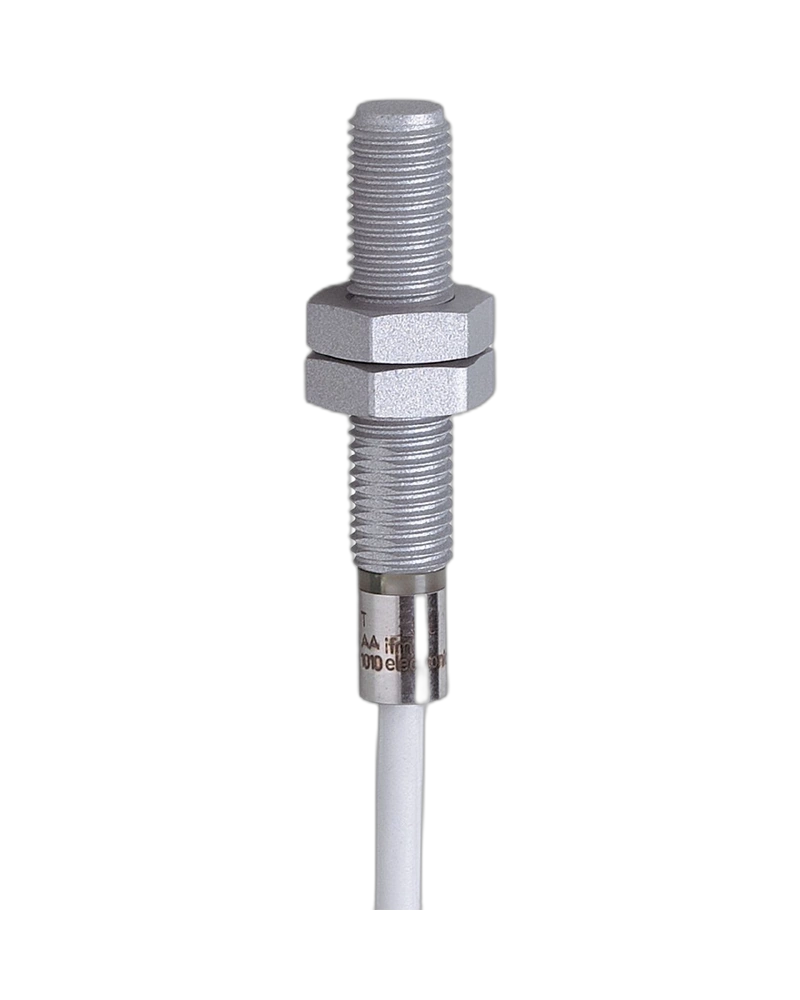

The IFM IER204 IEB2002BARKG/AM/SC/3,0M/2LED is an inductive full-metal sensor engineered for dependable non-contact detection of metallic objects in industrial machinery, welding equipment, machine tools, metalworking systems and factory automation.

The sensor uses inductive proximity sensing technology, allowing metallic targets to be detected without physical contact. This makes it suitable for repeated detection of machine components, workpieces, fixtures and moving metallic parts while avoiding mechanical wear associated with conventional contact switches.

The IER204 provides a 2 mm sensing range with an operating distance of 0–1.6 mm and an increased sensing range. This provides reliable target detection while maintaining a compact M8 × 1 sensor construction.

The sensor features a PNP/NPN electrical design with a normally-open output and operates from a 10–36 V DC supply. It supports a 100 mA permanent switching current and a 150 Hz switching frequency, making it suitable for repetitive detection tasks in automated machinery.

The IER204 has a full-metal stainless-steel housing with an anti-spatter design. The housing, sensing face and lock nuts are manufactured from stainless steel 1.4404 / 316L, providing a robust solution for demanding industrial and welding environments.

The sensor uses an M8 × 1 threaded housing with a 45 mm overall length and is flush mountable. It is supplied with a 3 m PUR cable with 2 × 0.34 mm² conductors, providing a practical connection solution for industrial installations.

Key Features

IFM IER204 inductive full-metal sensor

Model: IEB2002BARKG/AM/SC/3,0M/2LED

Inductive non-contact metal detection

2 mm sensing range

0–1.6 mm operating distance

Increased sensing range

PNP/NPN electrical design

Normally-open output

10–36 V DC operating voltage

100 mA permanent switching current

150 Hz switching frequency

Full-metal housing

Stainless-steel 1.4404 / 316L construction

Anti-spatter housing

Anti-spatter sensing face

Suitable for welding applications

M8 × 1 threaded housing

45 mm overall length

Flush-mountable construction

3 m PUR cable

2 × 0.34 mm² cable

Green switching-status LED

Red optical setting-aid LED

Optical setting aid

IP67 protection

50 bar pressure rating at sensing face

Reverse-polarity protection

Pulsed short-circuit protection

Overload protection

Suitable for machine tools and metalworking

Suitable for industrial automation and factory automation

Design & Functionality

The IER204 operates using an inductive sensing principle to detect metallic objects without direct physical contact.

When a suitable metallic target enters the sensing zone, the sensor switches its PNP/NPN normally-open output. The resulting switching signal can be used by compatible PLCs, industrial controllers and automation systems for position detection, machine sequencing, object detection and process control.

Its full-metal construction provides robust mechanical protection, while the anti-spatter construction is particularly useful in welding-related environments.

Increased Sensing Range

The IER204 provides a 2 mm sensing range with an increased sensing range.

The documented operating distance is 0–1.6 mm. Correction factors vary according to the metallic target material and should be considered when designing the sensing application.

Steel: 1

Stainless steel: 0.6

Brass: 0.4

Aluminium: 0.3

Copper: 0.2

The documented hysteresis is 1–20% of Sr.

PNP/NPN Normally-Open Output

The IER204 uses a PNP/NPN electrical design with a normally-open output, providing flexibility for compatible industrial control systems.

The sensor supports a 100 mA permanent switching current, while its switching frequency is rated at 150 Hz. The maximum switching voltage drop is 2.5 V.

Full-Metal Anti-Spatter Construction

A key advantage of the IER204 is its full-metal stainless-steel construction.

The housing, sensing face and lock nuts are manufactured from stainless steel 1.4404 / 316L with anti-spatter construction. This makes the sensor especially suitable for welding equipment and demanding metalworking applications.

The metal sensing face is designed for heavy-duty use, while the anti-spatter construction helps support reliable operation where welding slag or spatter may be present.

Compact M8 × 1 Construction

The IER204 uses an M8 × 1 threaded housing with a 45 mm overall length.

Its compact construction allows installation in machinery where available space is limited. The sensor is flush mountable, providing a practical installation arrangement for compatible machine structures.

Optical Setting Aid

The IER204 includes an optical setting aid with a red LED, together with a green switching-status LED.

This visual indication assists technicians during sensor positioning, commissioning and maintenance by providing clear feedback about the sensor's adjustment and switching status.

Welding and Metalworking Applications

The IER204 is specified for use in welding applications.

Its full-metal stainless-steel construction and anti-spatter design make it suitable for machine tools, metalworking equipment and production environments where welding spatter and demanding mechanical conditions may be present.

Pressure Resistance

The IER204 provides a documented 50 bar pressure rating at the sensing face.

This pressure resistance supports industrial applications where the sensing face may be exposed to elevated pressure.

3 m PUR Cable

The sensor is supplied with a 3 m PUR cable with 2 × 0.34 mm² conductors.

The long integrated cable provides additional installation flexibility where the sensor is positioned away from the main control or connection point.

Industrial Applications

Welding Machinery

The IER204 is suitable for welding equipment where full-metal construction and anti-spatter characteristics are important.

Machine Tools

The sensor can detect metallic machine components and provide position feedback in machine-tool applications.

Metalworking Equipment

Its stainless-steel full-metal construction makes it suitable for demanding metalworking machinery.

Machine Position Detection

The sensor can detect the position of metallic slides, fixtures, machine parts and moving mechanisms.

Metal Component Detection

It can detect the presence or absence of metallic workpieces and components during automated production.

Conveyor Automation

The IER204 can detect metallic workpieces moving through automated conveyor systems.

Production Machinery

It can provide switching feedback for automated machine sequences and production operations.

Factory Automation

The sensor can be integrated into factory automation systems requiring dependable non-contact metal detection.

Application Performance

The IER204 is designed for reliable operation in demanding industrial environments.

Its 2 mm sensing range, increased sensing range and 150 Hz switching frequency support repetitive metal detection in automated machinery. Its full-metal anti-spatter construction further supports applications involving welding and metalworking.

The sensor provides IP67 protection, helping protect it against dust and water ingress under the specified operating conditions. Its documented ambient temperature range is -25 °C to +70 °C.

Electrical Protection

The IER204 operates from a 10–36 V DC supply and incorporates reverse-polarity protection, pulsed short-circuit protection and overload protection.

The maximum switching voltage drop is 2.5 V, minimum load current is 2 mA, maximum leakage current is 0.75 mA, and permanent switching current is 100 mA.

Industrial Automation Integration

The IER204 can be incorporated into Industrial Automation UAE systems requiring robust non-contact metal detection.

It can operate alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, drives, switches and other industrial sensors.

For Industrial Automation Suppliers UAE, the IER204 provides a specialised full-metal sensing solution for machine builders, system integrators, welding equipment manufacturers and industrial production facilities.

For businesses searching for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IER204 is particularly suitable where full-metal construction, anti-spatter protection and reliable metal detection are required.

Operational Advantages

Full-metal stainless-steel construction

Anti-spatter housing

Anti-spatter sensing face

Designed for welding applications

2 mm sensing range

Increased sensing range

0–1.6 mm operating distance

PNP/NPN normally-open output

10–36 V DC operation

100 mA permanent switching current

150 Hz switching frequency

M8 × 1 threaded design

45 mm overall length

Flush-mountable installation

3 m PUR cable

Green switching-status LED

Red optical setting-aid LED

Optical setting aid

IP67 protection

50 bar pressure rating at sensing face

Reverse-polarity protection

Pulsed short-circuit protection

Overload protection

Stainless-steel 1.4404 / 316L materials

Suitable for metalworking

Suitable for welding equipment

Suitable for machine tools

Suitable for factory automation

The IFM IER204 IEB2002BARKG/AM/SC/3,0M/2LED is a robust inductive full-metal sensor designed for reliable non-contact metal detection in demanding industrial applications. Its 2 mm sensing range, PNP/NPN normally-open output, M8 × 1 compact construction, stainless-steel anti-spatter housing, optical setting aid and IP67 protection make it suitable for welding machinery, machine tools, metalworking equipment and factory automation.
