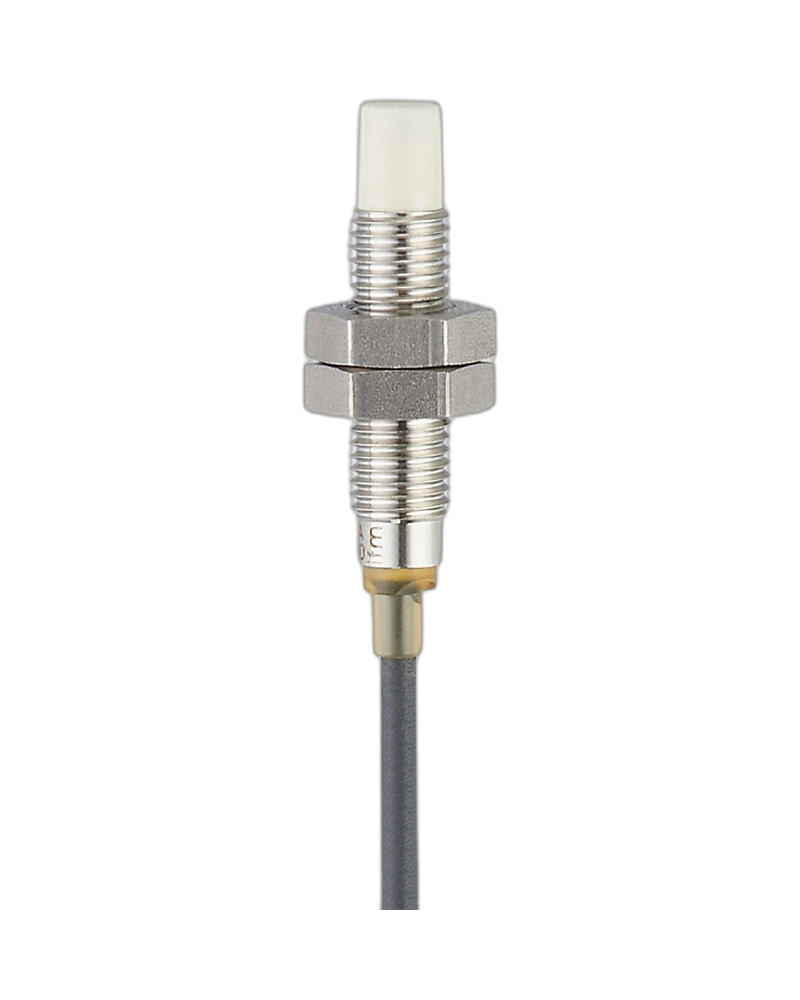

The IFM IER203 IEB2002BARKG/AM/SC/0,3M/US/2LE inductive full-metal sensor is a robust M8 × 1 proximity sensor designed for reliable non-contact metal detection in demanding industrial environments. It features a 2 mm sensing range, configurable PNP/NPN normally-open output, 10–36 V DC operation, 150 Hz switching frequency, increased sensing range, full-metal stainless-steel anti-spatter housing and IP67 protection. Its compact 45 mm housing, optical setting aid and 0.3 m PUR cable with M12 connector make it suitable for welding, machine tools, metalworking and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IER203 IEB2002BARKG/AM/SC/0,3M/US/2LE is an inductive full-metal sensor designed for dependable non-contact detection of metallic objects in industrial machinery, welding equipment, machine tools, metalworking systems and factory automation.
The sensor uses inductive proximity sensing technology, allowing metallic targets to be detected without physical contact. This makes it suitable for repeated monitoring of machine components, workpieces, fixtures and moving metallic parts without the mechanical wear associated with contact switches.
The IER203 provides a 2 mm sensing range and an operating distance of 0–1.6 mm. Its increased sensing range supports reliable target detection while maintaining a compact M8 × 1 sensor construction.
The sensor features a PNP/NPN electrical design with a normally-open output and operates from a 10–36 V DC supply. It supports a 100 mA permanent switching current and a 150 Hz switching frequency, making it suitable for repetitive detection tasks in automated machinery.
The IER203 has a full-metal stainless-steel housing with anti-spatter construction. The housing, sensing face and lock nuts are manufactured from stainless steel 316L / 1.4404, making the sensor suitable for demanding applications and welding environments.
The sensor uses an M8 × 1 threaded body with a 45 mm overall length and is flush mountable. It is supplied with a 0.3 m PUR cable and M12 A-coded connector with two gold-plated contacts.
IFM IER203 inductive full-metal sensor
Model: IEB2002BARKG/AM/SC/0,3M/US/2LE
Inductive non-contact metal detection
2 mm sensing range
0–1.6 mm operating distance
Increased sensing range
PNP/NPN electrical design
Normally-open output
10–36 V DC operating voltage
100 mA permanent switching current
150 Hz switching frequency
Full-metal housing
Stainless-steel 316L / 1.4404 construction
Anti-spatter housing
Anti-spatter sensing face
Suitable for welding applications
M8 × 1 threaded housing
45 mm overall length
Flush-mountable construction
0.3 m PUR cable
2 × 0.34 mm² cable
M12 A-coded connector
Two gold-plated connector contacts
Green switching-status LED
Red optical setting-aid LED
Optical setting aid
IP67 protection
50 bar pressure rating at sensing face
Reverse-polarity protection
Pulsed short-circuit protection
Overload protection
Suitable for machine tools and metalworking
Suitable for industrial automation and factory automation
The IER203 operates using an inductive sensing principle to detect metallic objects without direct physical contact.
When a suitable metallic target enters the sensing zone, the sensor switches its PNP/NPN normally-open output. The resulting switching signal can be used by compatible PLCs, controllers and automation systems for position detection, machine sequencing, object detection and process control.
Its full-metal construction provides additional mechanical robustness, while the anti-spatter surface is designed to support operation in welding-related applications.
The IER203 provides a 2 mm sensing range with an increased sensing range.
The documented operating distance is 0–1.6 mm. The correction factor depends on the metallic target material and should be considered when designing the sensing application.
Steel: 1
Stainless steel: 0.6
Brass: 0.4
Aluminium: 0.3
Copper: 0.2
The documented hysteresis is 1–20% of Sr.
The IER203 uses a PNP/NPN electrical design with a normally-open output, providing flexibility for compatible industrial control systems.
The sensor supports a 100 mA permanent switching current, while its switching frequency is rated at 150 Hz. The maximum switching voltage drop is 2.5 V.
A key advantage of the IER203 is its full-metal stainless-steel construction.
The housing, sensing face and lock nuts are manufactured from stainless steel 316L / 1.4404 with anti-spatter construction. This makes the sensor especially suitable for applications involving welding equipment and metalworking machinery.
The IER203 uses an M8 × 1 threaded housing with a 45 mm overall length.
Its compact construction allows it to be integrated into suitable machine structures where installation space is limited. The sensor is flush mountable, providing a practical installation arrangement for compatible machine designs.
The IER203 includes an optical setting aid consisting of a red LED, along with a green LED for switching-status indication.
This visual feedback helps technicians during sensor positioning, commissioning and maintenance by providing a clear indication of the sensor's operating and adjustment status.
The IER203 is specifically documented for use in welding applications.
Its full-metal stainless-steel construction and anti-spatter design make it suitable for machine tools, metalworking equipment and production environments where welding spatter and demanding mechanical conditions may be present.
The IER203 provides a documented 50 bar pressure rating at the sensing face.
This pressure resistance supports applications where the sensing face may be exposed to elevated mechanical or process pressure.
The sensor is supplied with a 0.3 m PUR cable with 2 × 0.34 mm² conductors.
The connection uses an M12 A-coded connector with two gold-plated contacts, providing a practical connection arrangement for industrial sensor cabling.
Welding Machinery
The IER203 is suitable for welding equipment where anti-spatter construction and full-metal protection are important.
Machine Tools
The sensor can detect metallic machine components and provide position feedback in machine-tool applications.
Metalworking Equipment
Its stainless-steel full-metal construction makes it suitable for demanding metalworking machinery.
Machine Position Detection
The sensor can detect the position of metallic slides, fixtures, machine parts and moving mechanisms.
Metal Component Detection
It can detect the presence or absence of metallic workpieces and components during automated production.
Conveyor Automation
The IER203 can detect metallic workpieces moving through automated conveyor systems.
Production Machinery
It can provide switching feedback for automated machine sequences and production operations.
Factory Automation
The sensor can be integrated into factory automation systems requiring dependable non-contact metal detection.
The IER203 is designed for reliable operation in demanding industrial environments.
Its 2 mm sensing range, increased sensing range and 150 Hz switching frequency support repetitive metal detection in automated machinery. Its full-metal anti-spatter construction further supports applications involving welding and metalworking.
The sensor provides IP67 protection, helping protect it against dust and water ingress under the specified operating conditions. Its documented ambient temperature range is -25 °C to +70 °C.
The IER203 operates from a 10–36 V DC supply and incorporates reverse-polarity protection, pulsed short-circuit protection and overload protection.
The sensor has a maximum leakage current of 0.75 mA, a minimum load current of 2 mA and a maximum switching voltage drop of 2.5 V.
The IER203 can be incorporated into Industrial Automation UAE systems requiring robust non-contact metal detection.
It can operate alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, drives, switches and other industrial sensors.
For Industrial Automation Suppliers UAE, the IER203 provides a specialised full-metal sensing solution for machine builders, system integrators, welding equipment manufacturers and industrial production facilities.
For businesses searching for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IER203 is particularly suitable where full-metal construction, anti-spatter protection and reliable metal detection are required.
Full-metal stainless-steel construction
Anti-spatter housing
Anti-spatter sensing face
Designed for welding applications
2 mm sensing range
Increased sensing range
0–1.6 mm operating distance
PNP/NPN normally-open output
10–36 V DC operation
100 mA permanent switching current
150 Hz switching frequency
M8 × 1 threaded design
45 mm overall length
Flush-mountable installation
0.3 m PUR cable
M12 A-coded connector
Two gold-plated connector contacts
Green switching-status LED
Red optical setting-aid LED
Optical setting aid
IP67 protection
50 bar pressure rating at sensing face
Reverse-polarity protection
Pulsed short-circuit protection
Overload protection
Stainless-steel 316L / 1.4404 materials
Suitable for metalworking
Suitable for welding equipment
Suitable for machine tools
Suitable for factory automation
The IFM IER203 IEB2002BARKG/AM/SC/0,3M/US/2LE is a robust inductive full-metal sensor designed for reliable non-contact metal detection in demanding industrial applications. Its 2 mm sensing range, PNP/NPN normally-open output, M8 × 1 compact construction, stainless-steel anti-spatter housing, optical setting aid and IP67 protection make it suitable for welding machinery, machine tools, metalworking equipment and factory automation.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE, Industrial Automation Components UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IER203 |
| Manufacturer | IFM |
| Model / Part Number | IEB2002BARKG/AM/SC/0,3M/US/2LE |
| Product Type | Inductive Full-Metal Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes, pulsed |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Minimum Load Current | 2 mA |
| Maximum Leakage Current | 0.75 mA |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 150 Hz |
| Sensing Range | 2 mm |
| Operating Distance | 0–1.6 mm |
| Increased Sensing Range | Yes |
| Hysteresis | 1–20% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.6 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 45 mm |
| Mounting | Flush mountable |
| Full-Metal Housing | Yes |
| Housing Material | Stainless steel 316L / 1.4404, anti-spatter |
| Sensing Face Material | Stainless steel 316L / 1.4404, anti-spatter |
| Lock Nut Material | Stainless steel 316L / 1.4404, anti-spatter |
| Pressure Rating | 50 bar at sensing face |
| Application | Use in welding applications |
| Connection Cable | 0.3 m PUR cable |
| Cable Cross Section | 2 × 0.34 mm² |
| Connector | 1 × M12 |
| Connector Coding | A-coded |
| Connector Contacts | 2, gold-plated |
| Switching Status Display | 1 × green LED |
| Setting Aid | 1 × red LED |
| Optical Setting Aid | Yes |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| Impact Resistance | 1 J |
| EMC Standard | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B |
| MTTF | 1384 years |
| UL Approval | Yes |
| UL Ambient Temperature | 0 °C to +40 °C |
| UL Enclosure Type | Type 1 |
| UL File Number | E174191 |
| Weight | 34.7 g |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Welding machinery, machine tools, metalworking, metal detection, position detection and factory automation |
