The IFM IEP201 IEK3003-FRKG/V4A/IO/AS inductive sensor is a high-precision IO-Link sensor designed for accurate non-contact position monitoring and detection of very small distance changes in industrial machines and factory automation systems. It features configurable PNP/NPN output, configurable normally-open/normally-closed function, IO-Link communication, an M8 × 1 threaded 60 mm housing, 10–30 V DC operation, 75 Hz switching frequency, 5 µm resolution and repeatability below 10 µm. Its magnetic-field immunity up to 300 mT and robust IP65/IP66/IP67/IP68/IP69K protection make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IEP201 IEK3003-FRKG/V4A/IO/AS is a precision inductive sensor designed for reliable and repeatable position monitoring in industrial machines, automated production equipment and factory automation systems. It is intended for non-contact detection of the smallest distance changes in the micrometre range, making it suitable for applications where conventional proximity switching does not provide sufficient measurement precision.
The IEP201 combines inductive sensing with IO-Link communication, allowing the measured distance to be transmitted as a linearised process value to a compatible IO-Link master. This provides automation systems with detailed distance information for monitoring, control and process optimisation.
The sensor provides an IO-Link measuring range of 0.05–3 mm and an IO-Link switch-point range of 0.05–2.91 mm. Its resolution is 5 µm, while repeatability is specified at less than 10 µm. These characteristics make the IEP201 suitable for precise position monitoring and small-distance measurement applications.

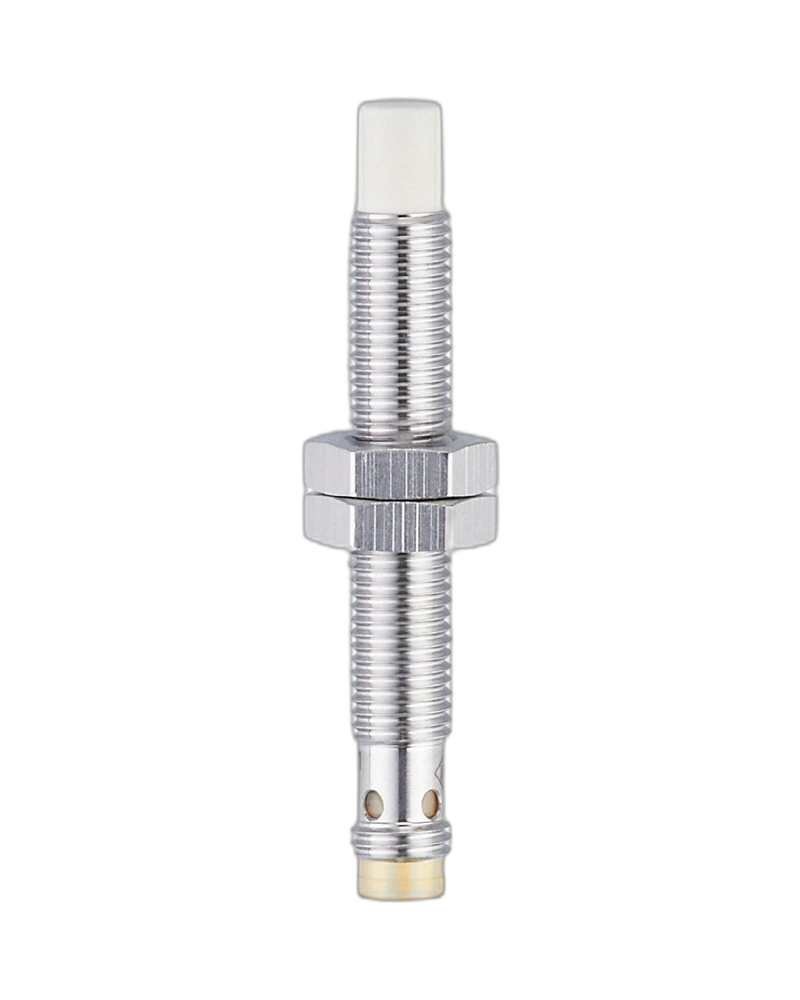

The IEP201 uses an M8 × 1 threaded housing with an overall length of 60 mm. Its stainless-steel housing and compact construction provide a practical solution for integrating precision sensing into industrial machinery.
IFM IEP201 inductive sensor
Model: IEK3003-FRKG/V4A/IO/AS
High-precision inductive sensing
IO-Link communication interface
PNP/NPN output configurable via IO-Link
Normally-open/normally-closed function configurable via IO-Link
Non-contact detection of very small distance changes
Micrometre-range distance detection
IO-Link measuring range of 0.05–3 mm
IO-Link switch-point range of 0.05–2.91 mm
5 µm resolution
Repeatability below 10 µm
Linearised distance transmission through IO-Link
M8 × 1 threaded housing
60 mm overall length
10–30 V DC operating voltage
Less than 20 mA current consumption
100 mA permanent switching current
75 Hz switching frequency
Maximum voltage drop of 2.5 V
Magnetic-field immune
Maximum magnetic-field immunity of 300 mT
Gold-plated connector contacts
Stainless-steel housing
Flush mounting
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for precision machine position monitoring
Suitable for industrial applications and factory automation
The IEP201 operates using an inductive sensing principle to detect changes in the distance between the sensor and a suitable metallic target without physical contact.
Its precision sensing capability allows the sensor to detect extremely small changes in target distance. Through IO-Link, this information can be transferred as a linearised process value, enabling connected automation systems to use the sensor for more advanced measurement and position-monitoring applications.
The electrical configuration can be parameterised through IO-Link. The sensor supports PNP or NPN operation and can be configured for normally-open or normally-closed switching, providing flexibility when integrating the sensor into different control architectures.
The IEP201 is designed specifically for micrometre-range distance detection.
Its IO-Link measuring range extends from 0.05 to 3 mm, while the switch-point range is 0.05 to 2.91 mm. The sensor provides 5 µm resolution and repeatability of less than 10 µm.
This precision makes the sensor suitable for monitoring small movements, machine positions, component alignment and other applications where accurate distance feedback is important.
The IEP201 incorporates an IO-Link communication interface for digital parameterisation and process-value transmission.
The sensor uses IO-Link COM2 communication at 38.4 kBaud, supports IO-Link revision 1.1 and has a minimum process cycle time of 3.2 ms.
IO-Link communication allows the sensor to provide more detailed information than a conventional switching sensor and supports convenient parameterisation within compatible industrial automation systems.
The IEP201 provides a parameterisable PNP/NPN electrical design.
The output function can also be configured as normally open or normally closed through IO-Link. This makes the sensor adaptable to compatible PLCs, IO-Link masters and industrial controllers without requiring different physical sensor versions for different switching configurations.
The IEP201 is designed to be magnetic-field immune, with a maximum specified magnetic-field immunity of 300 mT.
This feature can be useful in industrial machinery where magnetic fields may be present around motors, actuators or other equipment.
The IEP201 features a stainless-steel threaded housing with an M8 × 1 thread and 60 mm overall length.
The documented materials include stainless steel 1.4404 / 316L for the housing and mounting nuts. The sensing face is made from white LCP, while the LED window uses PPSU.
The sensor is designed for flush mounting, allowing suitable installation into compatible machine structures.
Precision Machine Position Monitoring
The IEP201 can monitor the position of machine components where very small distance changes need to be detected accurately.
Automated Production Equipment
It can provide precise position information in automated production machinery and manufacturing equipment.
Machine Tool Applications
The sensor can be used for accurate position monitoring in machine-tool and precision-machinery applications.
Component Position Verification
It can detect small positional changes of metallic components during automated manufacturing and assembly.
Precision Automation
The IEP201 can provide digital distance feedback for advanced industrial automation systems using IO-Link.
Factory Automation
The sensor can be integrated into IO-Link-enabled factory automation systems for monitoring and control.
The IEP201 provides high repeatability and micrometre-level resolution, making it suitable for precision applications where accurate position feedback is required.
The sensor provides 5 µm resolution and repeatability below 10 µm. It also supports factory calibration using an aluminium target measuring 24 × 24 mm.
The sensor supports additional application calibration modes, including one-point and three-point calibration for steel targets. The documented values provide different linearity and temperature-deviation characteristics depending on the selected calibration method.
The IEP201 operates from 10–30 V DC and has a current consumption of less than 20 mA.
It provides reverse-polarity, short-circuit and overload protection, supporting reliable operation when integrated into suitable industrial electrical and automation systems.
The permanent switching current is 100 mA, with a maximum switching-output voltage drop of 2.5 V and a switching frequency of 75 Hz.
The IEP201 provides IP65, IP66, IP67, IP68 and IP69K protection, making it suitable for demanding industrial environments when correctly installed.
Its specified ambient operating temperature range is -25 °C to +70 °C.
The sensor uses 1 × M8 connector with A coding and three gold-plated contacts.
The IEP201 provides four yellow LEDs for switching-status indication. In IO-Link mode, the yellow LEDs indicate when the target is within the measuring range.
The IEP201 can be incorporated into Industrial Automation UAE systems requiring accurate non-contact position monitoring and IO-Link communication.
It can operate alongside Industrial Automation Components UAE, including PLCs, IO-Link masters, control panels, drives, actuators and other industrial sensors.
For Industrial Automation Suppliers UAE, the IEP201 provides a specialised precision sensing solution for machine builders, system integrators and manufacturing facilities.
For customers looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE or Sensor Supplier UAE, the IEP201 is particularly suitable where micrometre-range measurement and IO-Link functionality are required.
High-precision inductive sensing
Micrometre-range distance detection
IO-Link digital communication
0.05–3 mm IO-Link measuring range
0.05–2.91 mm IO-Link switch-point range
5 µm resolution
Less than 10 µm repeatability
Linearised distance process value
PNP/NPN configurable output
Normally-open/normally-closed configurable function
10–30 V DC operation
100 mA permanent switching current
75 Hz switching frequency
M8 × 1 threaded housing
60 mm overall length
Stainless-steel housing
Flush mounting
Magnetic-field immunity up to 300 mT
Gold-plated connector contacts
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection
-25 °C to +70 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for precision machine position monitoring
Suitable for industrial applications and factory automation
The IFM IEP201 IEK3003-FRKG/V4A/IO/AS is a high-precision inductive sensor designed for accurate machine position monitoring and micrometre-range distance detection. Its IO-Link communication, configurable PNP/NPN and NO/NC functions, 5 µm resolution, repeatability below 10 µm, magnetic-field immunity and robust IP65/IP66/IP67/IP68/IP69K protection make it a strong solution for demanding industrial automation applications.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE, Industrial Automation Components UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IEP201 |
| Manufacturer | IFM |
| Model / Part Number | IEK3003-FRKG/V4A/IO/AS |
| Product Type | Inductive Sensor |
| Sensor Type | Precision Inductive / Proximity Sensor |
| Electrical Design | PNP/NPN, parameterisable |
| Output Function | Normally Open / Normally Closed, parameterisable |
| Communication Interface | IO-Link |
| IO-Link Revision | 1.1 |
| IO-Link Transmission Type | COM2, 38.4 kBaud |
| Minimum Process Cycle Time | 3.2 ms |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 60 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP, white |
| LED Window Material | PPSU |
| Mounting Nut Material | Stainless steel 1.4404 / 316L |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 75 Hz |
| IO-Link Measuring Range | 0.05–3 mm |
| IO-Link Switch-Point Range | 0.05–2.91 mm |
| Resolution | 5 µm |
| Repeatability | < 10 µm |
| Factory Calibration | Yes, aluminium target 24 × 24 mm |
| Temperature Deviation – Factory Calibration | ±1.2 µm/K |
| Linearity Deviation – Factory Calibration | ±10 µm |
| Application Calibration | 1-point and 3-point calibration available |
| Magnetic-Field Immunity | Yes |
| Maximum Magnetic-Field Immunity | 300 mT |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 °C to +70 °C |
| Connector | 1 × M8 |
| Connector Coding | A-coded |
| Connector Contacts | 3, gold-plated |
| LED Indication | 4 × yellow LED |
| Switching Status Indication | Yes |
| Weight | 45.9 g |
| Tightening Torque | 7 Nm |
| MTTF | 1347 years |
| Typical Applications | Precision position monitoring, industrial machinery, factory automation and IO-Link applications |
