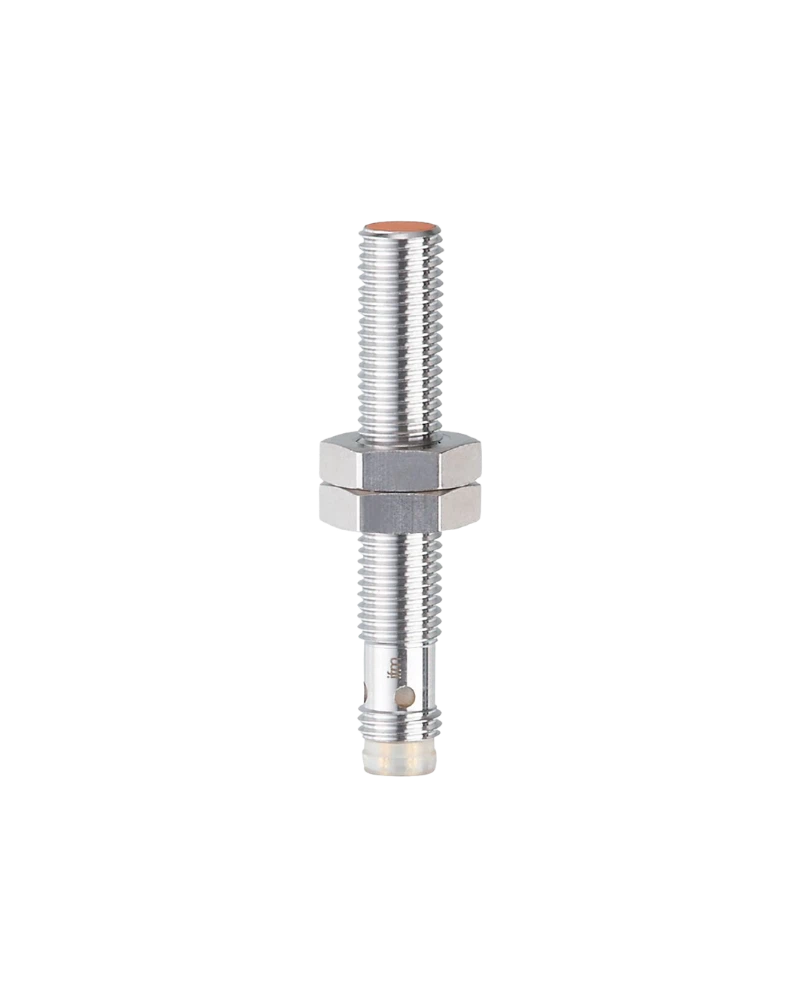

The IFM IEC212 IEB3005-BPKG/AM/P/AS inductive full-metal sensor is engineered for dependable and repeatable non-contact detection of metallic objects in industrial automation, machine tools, metalworking machinery and factory production systems. Its full-metal construction provides a robust sensing solution for applications where mechanical durability and resistance to oils and coolants are important.

The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This allows machine components, workpieces, tooling elements and moving metallic parts to be detected repeatedly without mechanical contact or wear.

The IEC212 provides a 5 mm sensing range, with a real sensing range of 5 ± 10% mm and an operating distance of 0–4.05 mm. Its increased sensing range supports reliable detection while maintaining a compact M8 × 1 threaded housing with a 45 mm overall length. The sensor is designed for non-flush mounting.

Key Features

IFM IEC212 inductive full-metal sensor

Model: IEB3005-BPKG/AM/P/AS

5 mm sensing range

Real sensing range: 5 ± 10%

Operating distance: 0–4.05 mm

Increased sensing range

Full-metal housing

PNP electrical design

Normally-open output

10–30 V DC operating voltage

100 mA permanent switching current

500 Hz switching frequency

M8 × 1 threaded housing

45 mm overall length

Non-flush mounting

M8 connector

Gold-plated connector contacts

Stainless-steel full-metal construction

Metal sensing face

IP65 protection

IP66 protection

IP67 protection

IP68 protection

IP69K protection with correctly screwed IFM socket

50 bar pressure rating at sensing face

-40 °C to +85 °C ambient temperature

Reverse-polarity protection

Short-circuit protection

Overload protection

Suitable for machine tools

Suitable for metalworking applications

Suitable for oils and coolants

Suitable for industrial automation and factory automation

Design & Functionality

The IEC212 operates using an inductive sensing principle, detecting metallic targets without physical contact. When a suitable metallic object enters the sensing zone, the sensor changes the state of its PNP normally-open switching output.

Its M8 × 1 threaded full-metal construction and 45 mm overall length provide a compact and robust solution for machine structures, fixtures and industrial automation equipment. The sensor is designed for non-flush mounting and can be integrated into suitable machine structures.

Full-Metal Construction

The IEC212 features a full-metal housing with a metal sensing face designed for demanding industrial applications.

The full-metal construction provides additional mechanical robustness for applications involving machine tools, metalworking equipment, oils and coolants. The sensor is specifically described for use in machine tools and metalworking and for resistance to oils and coolants.

Detection Performance

The IEC212 provides a 5 mm nominal sensing range with an operating distance of 0–4.05 mm.

The real sensing range is specified as 5 ± 10% mm, providing a comparatively large detection zone for a compact M8 sensor.

The sensor provides an increased sensing range designed to support safe and reliable detection while maintaining low sensor tolerances.

PNP Normally-Open Output

The IEC212 uses a PNP normally-open electrical design, making it suitable for compatible industrial control systems.

The sensor operates from 10–30 V DC, has a permanent switching current rating of 100 mA and supports a switching frequency of 500 Hz. It also provides reverse-polarity, short-circuit and overload protection.

This output configuration can provide reliable switching feedback to compatible PLCs, industrial controllers and machine-control systems.

M8 Connector

The IEC212 uses an M8 connector with gold-plated contacts, providing a practical connection solution for industrial sensor cabling.

The gold-plated contacts and compact M8 connection make the sensor suitable for integration into compatible industrial automation systems and machine-control installations.

Oils, Coolants and Metalworking Applications

The IEC212 is designed for machine tools and metalworking applications and is resistant to oils and coolants.

Its metal sensing face and full-metal construction make it suitable for demanding machinery where conventional sensors may be exposed to industrial fluids and mechanical stresses.

Machine Position Detection

The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanical parts.

Metal Workpiece Detection

It can detect metallic workpieces and components during machining, manufacturing and production processes.

Machine Tool Automation

The IEC212 can provide position feedback for automated machine tools and metalworking equipment.

Coolant-Exposed Machinery

Its robust full-metal construction makes it suitable for applications where sensors may be exposed to oils, coolants and lubricants.

Conveyor Automation

The sensor can detect metallic objects moving through suitable conveyor systems.

Assembly Machinery

It can confirm the presence or position of metallic components during automated assembly operations.

Production Monitoring

The sensor can provide proximity feedback for machine-control, counting and production-monitoring functions.

Application Performance

The IEC212 is designed for demanding industrial environments and provides a full-metal construction with a metal sensing face for heavy-duty applications.

Its sensing face has a 50 bar / 5 MPa pressure rating, supporting applications where the active sensor face may be exposed to elevated pressure.

The sensor provides IP65, IP66, IP67 and IP68 protection, with IP69K available when a suitable IFM socket is correctly screwed on. The documented ambient temperature range is -40 °C to +85 °C.

Compact M8 × 1 Housing

The IEC212 features an M8 × 1 threaded housing with an overall length of 45 mm.

Its compact cylindrical design allows installation in suitable machine structures while providing a relatively large 5 mm sensing range. The sensor is designed for non-flush mounting.

Industrial Automation Integration

The IEC212 can be integrated into Industrial Automation UAE systems requiring reliable detection of metallic components, machine positions and production equipment.

It can operate alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, drives, switches and other industrial sensors.

For Industrial Automation Suppliers UAE, the IEC212 provides a robust full-metal sensing component for machine builders, system integrators, metalworking facilities and manufacturing environments.

Operational Advantages

Full-metal construction

5 mm sensing range

Real sensing range of 5 ± 10%

Increased sensing range

M8 × 1 threaded housing

45 mm overall length

Non-flush mounting

PNP normally-open output

10–30 V DC operation

500 Hz switching frequency

100 mA permanent switching current

M8 connector

Gold-plated connector contacts

Metal sensing face

IP65 protection

IP66 protection

IP67 protection

IP68 protection

IP69K with correctly screwed IFM socket

50 bar pressure rating at sensing face

-40 °C to +85 °C operating temperature

Reverse-polarity protection

Short-circuit protection

Overload protection

Suitable for machine tools

Suitable for metalworking

Suitable for oils and coolants

Suitable for industrial automation and factory automation

The IFM IEC212 IEB3005-BPKG/AM/P/AS is a robust inductive full-metal sensor designed for reliable metal detection in machine tools, metalworking machinery and industrial automation applications. Its 5 mm sensing range, PNP normally-open output, full-metal construction, M8 × 1 housing, 45 mm overall length, increased sensing range and broad protection characteristics make it a dependable solution for demanding industrial environments.

It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE and Industrial Automation Equipment UAE.
