The IFM IEC211 IEB3003QBPKG/AM/P/AS inductive full-metal sensor is designed for reliable non-contact detection of metallic objects in machine tools, metalworking equipment and industrial automation applications. It features a 3 mm sensing range, PNP normally-open output, 10–30 V DC operation, M8 × 1 threaded full-metal housing, M8 connector and IP65/IP66/IP67/IP68/IP69K protection when correctly connected. Its robust stainless-steel sensing face, increased sensing range and resistance to oils and coolants make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IEC211 IEB3003QBPKG/AM/P/AS inductive full-metal sensor is engineered for dependable and repeatable non-contact detection of metallic objects in industrial automation, machine tools, metalworking machinery and factory production systems. Its full-metal construction provides a robust sensing solution for applications where resistance to oils, coolants and demanding operating conditions is required.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This allows machine components, workpieces, tooling elements and moving metallic parts to be detected repeatedly without mechanical contact or wear.
The IEC211 provides a 3 mm sensing range with a real sensing range of 3 ± 10% mm and an operating distance of 0–2.43 mm. Its increased sensing range supports reliable detection while maintaining a compact M8 × 1 threaded housing with a 45 mm overall length.

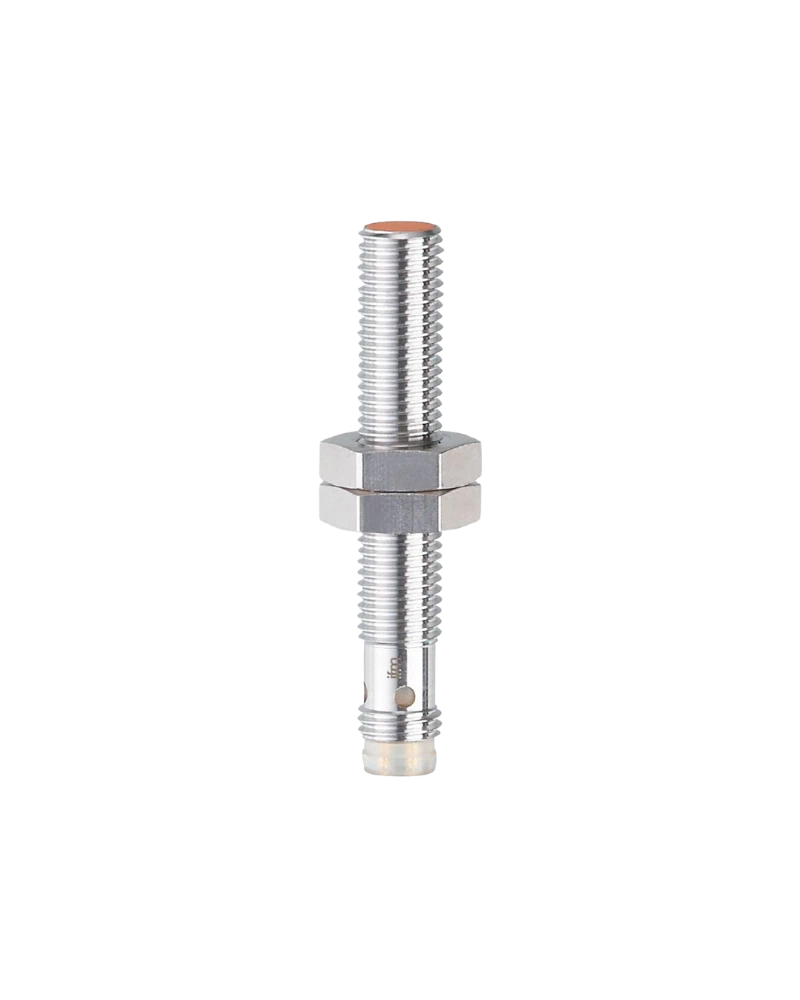

IFM IEC211 inductive full-metal sensor
Model: IEB3003QBPKG/AM/P/AS
3 mm sensing range
Real sensing range: 3 ± 10%
Operating distance: 0–2.43 mm
Increased sensing range
Full-metal housing
PNP electrical design
Normally-open output
10–30 V DC operating voltage
100 mA permanent switching current
250 Hz switching frequency
M8 × 1 threaded housing
45 mm overall length
Quasi-flush mounting
M8 A-coded connector
Gold-plated connector contacts
Stainless steel 316L / 1.4404 housing
Stainless steel sensing face
PPSU LED window
Stainless steel lock nuts
4 × 90° yellow LED switching-status indication
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection with correctly screwed IFM socket
50 bar pressure rating at sensing face
-40 °C to +85 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for machine tools and metalworking
Suitable for oils, coolants and lubricants
The IEC211 operates using an inductive sensing principle, detecting metallic targets without physical contact. When a suitable metallic object enters the sensing zone, the sensor changes the state of its PNP normally-open switching output.
Its M8 × 1 threaded full-metal construction and 45 mm overall length provide a compact and robust solution for machine structures, fixtures and industrial automation equipment. The sensor is designed for quasi-flush mounting, allowing it to be integrated into compatible machine structures.
The IEC211 features a full-metal stainless-steel housing and stainless-steel sensing face designed for demanding industrial applications.
The housing and active sensing surface are manufactured from stainless steel 316L / 1.4404. The LED window is made from PPSU, while the supplied lock nuts are also manufactured from stainless steel 316L / 1.4404.
The robust metal sensing face makes the IEC211 suitable for heavy-duty applications where reliable detection and mechanical durability are important.
The IEC211 provides a 3 mm nominal sensing range with an operating distance of 0–2.43 mm.
The real sensing range is specified as 3 ± 10% mm, providing a reliable detection distance for suitable metallic targets.
The documented correction factors are:
Steel: 1
Stainless steel: 0.9
Brass: 0.4
Aluminium: 0.4
Copper: 0.3
The hysteresis is specified as 3–15% of Sr.
The IEC211 uses a PNP normally-open electrical design, making it suitable for compatible industrial control systems.
The sensor operates from 10–30 V DC, has a permanent switching current rating of 100 mA and supports a switching frequency of 250 Hz.
This output configuration provides reliable switching feedback to compatible PLCs, industrial controllers and machine-control systems.
The IEC211 uses an M8 A-coded connector with gold-plated contacts, providing a practical industrial connection solution.
The gold-plated contacts support reliable electrical connection in compatible sensor cabling and automation systems.
The IEC211 is specifically intended for machine tools and metalworking applications and is resistant to oils and coolants. Its robust metal sensing face is designed for heavy-duty applications.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanical parts.
Metal Workpiece Detection
It can detect metallic workpieces and components during machining, manufacturing and production processes.
Machine Tool Automation
The IEC211 can provide position feedback for automated machine tools and metalworking equipment.
Coolant-Exposed Machinery
Its robust full-metal construction makes it suitable for applications where sensors may be exposed to oils, coolants and lubricants.
Conveyor Automation
The sensor can detect metallic objects moving through suitable conveyor systems.
Assembly Machinery
It can confirm the presence or position of metallic components during automated assembly operations.
Production Monitoring
The sensor can provide proximity feedback for machine-control, counting and production-monitoring functions.
The IEC211 is designed for demanding industrial environments and provides a full-metal stainless-steel construction with a robust metal sensing face for heavy-duty applications.
Its sensing face has a 50 bar / 5 MPa pressure rating, supporting applications where the active sensor face may be exposed to elevated pressure.
The sensor is specified for -40 °C to +85 °C ambient temperature. Its protection characteristics include IP65, IP66, IP67, IP68 and IP69K when used with a correctly screwed IFM socket.
The IEC211 features an M8 × 1 threaded housing with an overall length of 45 mm.
Its compact cylindrical construction allows the sensor to be installed in suitable machine structures while providing reliable proximity detection. The quasi-flush mounting design supports integration into compatible metal surfaces.
The IEC211 can be integrated into Industrial Automation UAE systems requiring reliable detection of metallic components, machine positions and production equipment.
It can operate alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, drives, switches and other industrial sensors.
For Industrial Automation Suppliers UAE, the IEC211 provides a robust full-metal sensing component for machine builders, system integrators, metalworking facilities and manufacturing environments.
Full-metal stainless-steel construction
3 mm sensing range
Real sensing range of 3 ± 10%
Increased sensing range
M8 × 1 threaded housing
45 mm overall length
Quasi-flush mounting
PNP normally-open output
10–30 V DC operation
250 Hz switching frequency
100 mA permanent switching current
M8 A-coded connector
Gold-plated connector contacts
Stainless steel 316L / 1.4404 housing
Stainless steel sensing face
4 × 90° yellow LED indication
IP65 protection
IP66 protection
IP67 protection
IP68 protection
IP69K protection with correctly screwed IFM socket
50 bar pressure rating at sensing face
-40 °C to +85 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for machine tools
Suitable for metalworking
Suitable for oils and coolants
Suitable for industrial automation and factory automation
The IFM IEC211 IEB3003QBPKG/AM/P/AS is a robust inductive full-metal sensor designed for reliable metal detection in machine tools, metalworking machinery and industrial automation applications. Its 3 mm sensing range, PNP normally-open output, full-metal stainless-steel construction, M8 × 1 housing, gold-plated M8 connector, increased sensing range and broad protection characteristics make it a dependable solution for demanding industrial environments.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IEC211 |
| Manufacturer | IFM |
| Model / Part Number | IEB3003QBPKG/AM/P/AS |
| Product Type | Inductive Full-Metal Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 20 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 3 mm |
| Real Sensing Range (Sr) | 3 ± 10% mm |
| Operating Distance | 0–2.43 mm |
| Increased Sensing Range | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 250 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 3–15% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.9 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 45 mm |
| Mounting | Quasi-flush |
| Housing Material | Stainless steel 316L / 1.4404 |
| Sensing Face Material | Stainless steel 316L / 1.4404 |
| LED Window Material | PPSU |
| Lock Nut Material | Stainless steel 316L / 1.4404 |
| Full-Metal Housing | Yes |
| Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Connector Contacts | Gold-plated |
| Output Status Indication | 4 × 90° yellow LED |
| Protection Rating | IP65 / IP66 / IP67 / IP68 / IP69K |
| Pressure Rating | 50 bar / 5 MPa |
| Pressure Rating Location | Sensing face |
| Ambient Temperature | -40 °C to +85 °C |
| Tightening Torque | 5 Nm |
| Weight | Approx. 15.7 g |
| Pack Quantity | 1 piece |
| Included Accessories | 2 lock nuts |
| Application | Industrial applications / factory automation |
| Recommended Applications | Machine tools, metalworking, oils, coolants and lubricants |
| Special Features | Gold-plated contacts, increased sensing range and full-metal housing |
| Typical Applications | Metal detection, machine position detection, machine tool automation, conveyor automation and factory automation |
