The IFM IEC210 IEK3002BAPKG/AM/US-104 inductive full-metal sensor is designed for reliable non-contact detection of metallic objects in machine tools, metalworking equipment and industrial automation applications. It features a 2 mm sensing range, PNP normally-closed output, 10–30 V DC operation, M8 × 1 threaded full-metal housing, M12 connector and IP67 protection. Its stainless-steel construction, increased sensing range and resistance to oils and coolants make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IEC210 IEK3002BAPKG/AM/US-104 inductive full-metal sensor is engineered for dependable and repeatable non-contact detection of metallic objects in industrial automation, machine tools, metalworking machinery and factory production systems. Its robust full-metal construction provides a durable sensing solution for applications where resistance to oils, coolants and demanding operating conditions is important.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This allows machine components, workpieces, tooling elements and moving metallic parts to be detected repeatedly without mechanical contact or wear.
The IEC210 provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.62 mm. Its increased sensing range supports reliable detection while maintaining a compact M8 × 1 threaded housing with a 60 mm overall length.

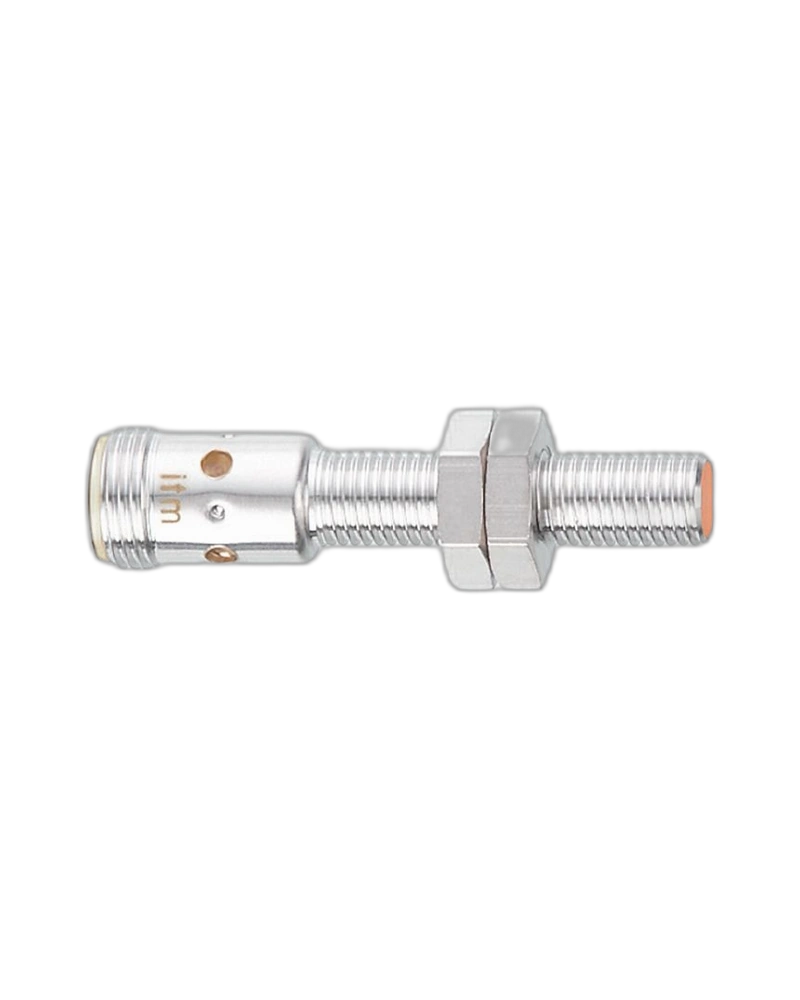

IFM IEC210 inductive full-metal sensor
Model: IEK3002BAPKG/AM/US-104
2 mm sensing range
Real sensing range: 2 ± 10%
Operating distance: 0–1.62 mm
Increased sensing range
Full-metal housing
PNP electrical design
Normally-closed output
10–30 V DC operating voltage
100 mA permanent switching current
100 Hz switching frequency
M8 × 1 threaded housing
60 mm overall length
Flush-mountable installation
M12 A-coded connector
Gold-plated connector contacts
Stainless steel 316L / 1.4404 housing
Stainless steel sensing face
PEI LED window
Stainless steel lock nuts
4 × 90° yellow LED switching-status indication
IP67 protection
Suitable for industrial automation and factory automation
Suitable for machine tools
Suitable for oils and coolants
50 bar pressure rating at sensing face
-25 °C to +70 °C ambient temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Increased sensing range for reliable detection
The IEC210 operates using an inductive sensing principle, detecting metallic targets without physical contact. When a suitable metal target enters the sensor's detection zone, the sensor changes the state of its PNP normally-closed switching output.
Its M8 × 1 threaded full-metal construction and 60 mm overall length provide a robust sensing solution for machine structures, fixtures and industrial automation equipment. The sensor is designed for flush mounting, allowing it to be integrated into compatible metal machine structures.
The IEC210 features a full-metal stainless-steel housing and stainless-steel sensing face designed for demanding industrial applications.
The housing and active sensing surface are manufactured from stainless steel 316L / 1.4404. The LED window is made from PEI, while the supplied lock nuts are also manufactured from stainless steel.
The full-metal construction provides a durable solution for applications involving machine tools, metalworking equipment, oils, coolants and lubricants.
The IEC210 provides a 2 mm nominal sensing range with an operating distance of 0–1.62 mm.
The real sensing range is specified as 2 ± 10% mm, providing a practical detection distance for suitable metallic targets.
The correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.7
Aluminium: 0.6
Copper: 0.5
The hysteresis is specified as 1–20% of Sr.
The IEC210 uses a PNP normally-closed electrical design, making it suitable for compatible industrial control systems.
The sensor operates from 10–30 V DC, has a permanent switching current rating of 100 mA and supports a switching frequency of 100 Hz.
This output configuration can provide reliable switching feedback to compatible PLCs, industrial controllers and machine-control systems.
The IEC210 uses an M12 A-coded connector with gold-plated contacts, providing a reliable connection solution for industrial sensor cabling.
The connector arrangement is suitable for integration into compatible industrial automation systems and machine-control installations.
The IEC210 is designed for industrial applications and factory automation, including use in machine tools and environments involving oils, coolants and lubricants.
Machine Position Detection
The sensor can detect the position of metallic machine components, slides, fixtures and moving mechanical parts.
Metal Workpiece Detection
It can detect metallic workpieces and components during machining, manufacturing and production processes.
Machine Tool Automation
The IEC210 can provide position feedback for automated machine tools and metalworking equipment.
Coolant-Exposed Machinery
Its full-metal construction makes it suitable for applications where sensors may be exposed to oils, coolants and lubricants.
Conveyor Automation
The sensor can detect metallic objects moving through suitable conveyor systems.
Assembly Machinery
It can confirm the presence or position of metallic components during automated assembly operations.
Production Monitoring
The sensor can provide proximity feedback for machine-control, counting and production-monitoring functions.
The IEC210 is designed for demanding industrial environments and provides a full-metal stainless-steel construction suitable for machine tools and metalworking applications.
Its sensing face has a 50 bar / 10 MPa pressure rating, supporting applications where the active sensor face may be exposed to elevated pressure.
The sensor provides IP67 protection and operates across an ambient temperature range of -25 °C to +70 °C. These characteristics support reliable operation across a broad range of industrial machinery and factory automation environments.
The IEC210 features an M8 × 1 threaded housing with an overall length of 60 mm.
Its compact cylindrical construction allows the sensor to be installed in suitable machine structures while providing reliable proximity detection. The flush-mountable design allows integration into compatible metal surfaces.
The IEC210 can be integrated into Industrial Automation UAE systems requiring reliable detection of metallic components, machine positions and production equipment.
It can operate alongside Industrial Automation Components UAE, including PLCs, control panels, actuators, drives, switches and other industrial sensors.
For Industrial Automation Suppliers UAE, the IEC210 provides a robust full-metal sensing component for machine builders, system integrators, metalworking facilities and manufacturing environments.
Full-metal stainless-steel construction
2 mm sensing range
Real sensing range of 2 ± 10%
Increased sensing range
M8 × 1 threaded housing
60 mm overall length
Flush-mountable construction
PNP normally-closed output
10–30 V DC operation
100 Hz switching frequency
100 mA permanent switching current
M12 A-coded connector
Gold-plated connector contacts
Stainless steel 316L / 1.4404 housing
Stainless steel sensing face
4 × 90° yellow LED indication
IP67 protection
50 bar pressure rating at sensing face
-25 °C to +70 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for machine tools
Suitable for oils and coolants
Suitable for industrial automation and factory automation
The IFM IEC210 IEK3002BAPKG/AM/US-104 is a robust inductive full-metal sensor designed for reliable metal detection in machine tools, metalworking machinery and industrial automation applications. Its 2 mm sensing range, PNP normally-closed output, full-metal stainless-steel construction, M8 × 1 housing, M12 connector, increased sensing range and IP67 protection make it a dependable solution for demanding industrial environments.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IEC210 |
| Manufacturer | IFM |
| Model / Part Number | IEK3002BAPKG/AM/US-104 |
| Product Type | Inductive Full-Metal Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.62 mm |
| Increased Sensing Range | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 100 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.7 |
| Correction Factor – Aluminium | 0.6 |
| Correction Factor – Copper | 0.5 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 60 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 316L / 1.4404 |
| Sensing Face Material | Stainless steel 316L / 1.4404 |
| LED Window Material | PEI |
| Lock Nut Material | Stainless steel 316L / 1.4404 |
| Full-Metal Housing | Yes |
| Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Connector Contacts | Gold-plated |
| Output Status Indication | 4 × yellow LED, 90° arrangement |
| Protection Rating | IP67 |
| Pressure Rating | 50 bar / 10 MPa |
| Pressure Rating Location | Sensing face |
| Ambient Temperature | -25 °C to +70 °C |
| Tightening Torque | < 5 Nm |
| Weight | Approx. 21.7 g |
| Pack Quantity | 1 piece |
| Included Accessories | 2 lock nuts |
| Application | Industrial applications / factory automation |
| Recommended Applications | Machine tools, metalworking, oils, coolants and lubricants |
| Special Features | Gold-plated contacts, increased sensing range, full-metal housing |
| Typical Applications | Metal detection, machine position detection, machine tool automation, conveyor automation and factory automation |
