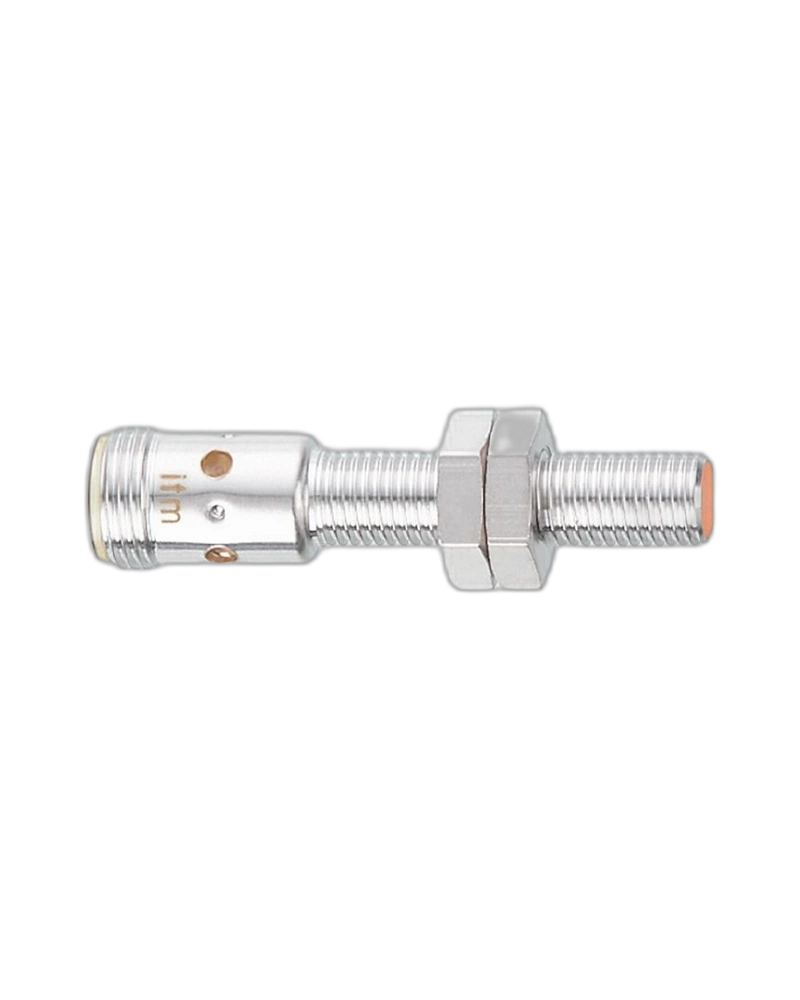

The IFM IEC203 IEK3002BANKG/AM/US-104 inductive full-metal sensor is designed for reliable non-contact detection of metallic objects in machine tools, metalworking equipment and demanding industrial automation applications. With a 2 mm sensing range, NPN normally-open output, 10–30 V DC operation, M8 × 1 threaded full-metal housing and 60 mm overall length, it provides robust sensing performance in environments exposed to oils, coolants and lubricants. Its stainless-steel construction, increased sensing range and gold-plated contacts make it a dependable solution for Industrial Automation UAE applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IEC203 IEK3002BANKG/AM/US-104 inductive full-metal sensor is engineered for reliable and repeatable non-contact detection of metallic objects in industrial automation, machine tools, metalworking equipment and factory production systems. Its full-metal construction and stainless-steel active face provide a robust sensing solution for demanding applications where sensors may be exposed to oils, coolants and lubricants.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated detection of machine components, workpieces, tooling elements and moving metallic parts during automated manufacturing processes.
The IEC203 provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.62 mm. Its increased sensing range supports reliable target detection while maintaining a compact M8 × 1 threaded design.
IFM IEC203 inductive full-metal sensor
Model: IEK3002BANKG/AM/US-104
2 mm sensing range
Real sensing range: 2 ± 10%
Operating distance: 0–1.62 mm
Increased sensing range
DC NPN electrical design
Normally-open output
10–30 V DC operating voltage
100 mA permanent switching current
100 Hz switching frequency
M8 × 1 threaded housing
60 mm overall length
Flush-mountable installation
Full-metal stainless-steel housing
Stainless-steel active face
Gold-plated connector contacts
M12 connector
IP67 / IP68 protection
Suitable for oils, coolants and lubricants
50 bar pressure rating at sensing face
Reverse-polarity protection
Short-circuit protection
Overload protection
Four yellow LED switching-status indicators
The IEC203 is designed as a full-metal inductive proximity sensor for demanding industrial applications. Its M8 × 1 threaded housing has an overall length of 60 mm, providing a robust form factor for machine-tool and automation installations.
The housing, active face and lock nuts are manufactured from stainless steel 316L / 1.4404, supporting durable operation in demanding industrial environments. The connector housing is made from PA.
The sensor is flush mountable, allowing it to be integrated into compatible metal machine structures while maintaining reliable sensing performance.
The IEC203 features a full-metal housing and stainless-steel active sensing face designed for demanding machine applications.
Its stainless-steel construction makes it suitable for machine tools and metalworking environments where sensors may be exposed to oils, coolants and lubricants. The sensing face has a pressure rating of 50 bar / 10 MPa.
This robust construction makes the IEC203 a practical choice for Industrial Automation Components UAE applications where mechanical durability and reliable sensing performance are important.
The IEC203 provides a 2 mm sensing range with a real sensing range of 2 ± 10% mm.
Its operating distance is specified as 0–1.62 mm, while the increased sensing range supports dependable detection of suitable metallic targets.
The documented correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.7
Aluminium: 0.6
Copper: 0.5
The hysteresis is specified as 1–20% of Sr.
The IEC203 uses a DC NPN normally-open output, making it suitable for compatible PLCs, industrial controllers and automation systems.
The sensor operates from 10–30 V DC and provides a permanent switching output current rating of 100 mA. The maximum switching-output voltage drop is 2.5 V.
Short-circuit and overload protection support dependable electrical operation when the sensor is correctly installed and connected.
The IEC203 is designed for demanding machine-tool and metalworking applications.
It can be used for:
Machine position detection
Metal workpiece detection
Tool position monitoring
Machine component detection
Clamping-position detection
Conveyor monitoring
Automated counting
Assembly machinery
Production-line control
Metalworking equipment
Coolant-exposed machinery
Industrial machine automation
The IEC203 is designed for industrial environments where exposure to oils, coolants and lubricants may occur. Its full-metal stainless-steel construction, metal sensing face and increased sensing range make it suitable for demanding machine-tool applications.
The sensing face provides a pressure rating of 50 bar / 10 MPa, supporting applications where the sensor can be exposed to elevated mechanical pressure.
The IEC203 provides IP67 / IP68 protection, with the product documentation identifying it for coolant-related applications. Its ambient operating temperature range is -25 °C to +70 °C.
The IEC203 features an M8 × 1 threaded housing with a 60 mm overall length.
Its electrical connection uses an M12 connector with gold-plated contacts, providing a practical connection solution for compatible industrial sensor cabling.
Four yellow LEDs provide switching-status indication, helping technicians identify sensor operation during installation, commissioning and maintenance.
The IEC203 can be integrated into Industrial Automation UAE systems requiring reliable detection of metallic components and machine-position feedback.
It can operate alongside PLCs, controllers, machine-control systems and other Industrial Automation Components UAE to provide reliable detection signals.
For Industrial Automation Suppliers UAE, the IEC203 offers a robust full-metal sensing solution for machine builders, manufacturing facilities, metalworking plants and automation system integrators.
Full-metal stainless-steel construction
2 mm sensing range
Increased sensing range
M8 × 1 threaded housing
60 mm overall length
Flush-mountable installation
NPN normally-open output
10–30 V DC operation
100 Hz switching frequency
100 mA permanent switching current
M12 connector
Gold-plated connector contacts
IP67 / IP68 protection
Suitable for oils, coolants and lubricants
50 bar pressure rating at sensing face
Reverse-polarity protection
Short-circuit protection
Overload protection
Four yellow LED switching-status indicators
The IFM IEC203 IEK3002BANKG/AM/US-104 is a robust inductive full-metal sensor designed for reliable metal detection in machine tools, metalworking equipment and demanding industrial automation environments. Its stainless-steel construction, 2 mm sensing range, NPN normally-open output, M8 × 1 housing, increased sensing range and resistance to oils and coolants make it a dependable solution for industrial machinery and factory automation applications.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IEC203 |
| Manufacturer | IFM |
| Model / Part Number | IEK3002BANKG/AM/US-104 |
| Product Type | Inductive Full-Metal Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.62 mm |
| Increased Sensing Range | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 100 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 1–20% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.7 |
| Correction Factor – Aluminium | 0.6 |
| Correction Factor – Copper | 0.5 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 60 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 316L / 1.4404 |
| Active Face Material | Stainless steel 316L / 1.4404 |
| Lock Nut Material | Stainless steel 316L / 1.4404 |
| Connector Material | PA |
| Full-Metal Housing | Yes |
| Connection | M12 connector |
| Connector Contacts | Gold-plated |
| Status Indication | 4 × yellow LED |
| Protection Rating | IP67 / IP68 |
| Ambient Temperature | -25 °C to +70 °C |
| Pressure Rating | 50 bar / 10 MPa |
| Pressure Rating Location | Sensing face |
| Application | Industrial applications / factory automation |
| Application Environment | Machine tools, oils, coolants and lubricants |
| Special Features | Gold-plated contacts; increased sensing range; full-metal housing |
| Typical Applications | Machine tools, metalworking, industrial automation, metal detection, position sensing and machine control |
| Weight | Approx. 21.6 g |
| GTIN | 4021179253406 |
