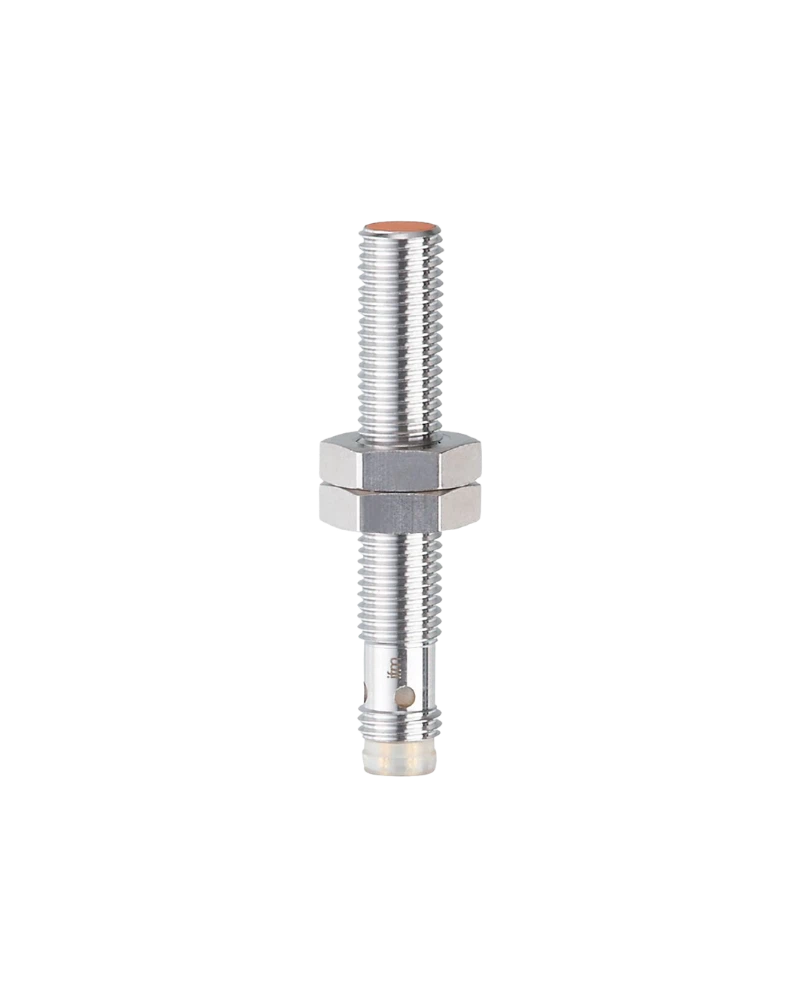

The IFM IEC202 IEB3002BANKG/AM/AS inductive full-metal sensor is designed for reliable non-contact detection of metallic objects in machine tools, metalworking equipment and demanding industrial automation applications. With a 2 mm sensing range, NPN normally-open output, 10–30 V DC operation, M8 × 1 threaded full-metal housing and IP65/IP67 protection, it is suitable for environments exposed to oils, coolants and lubricants. Its stainless-steel construction, metal sensing face and increased sensing range provide dependable performance in demanding Industrial Automation UAE applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IEC202 IEB3002BANKG/AM/AS inductive full-metal sensor is engineered for reliable and repeatable non-contact detection of metallic objects in industrial automation, machine tools, metalworking equipment and factory production systems. Its full-metal construction and robust stainless-steel sensing face make it suitable for demanding applications where sensors can be exposed to oils, coolants and mechanical stresses.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated detection of machine components, workpieces, tooling elements and moving metallic parts during automated manufacturing processes.
The IEC202 provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.6 mm. Its increased sensing range helps provide reliable target detection while maintaining a compact M8 × 1 threaded design.
IFM IEC202 inductive full-metal sensor
Model: IEB3002BANKG/AM/AS
2 mm sensing range
Real sensing range: 2 ± 10%
Operating distance: 0–1.6 mm
Increased sensing range
DC NPN electrical design
Normally-open output
10–30 V DC operating voltage
100 mA permanent switching current
100 Hz switching frequency
M8 × 1 threaded housing
50 mm overall length
Flush-mountable installation
Full-metal stainless-steel housing
Stainless-steel sensing face
Stainless-steel lock nuts
Gold-plated connector contacts
M8 A-coded connector
IP65 protection
IP67 protection when correctly connected with an IFM socket
Suitable for oils and coolants
50 bar pressure rating at sensing face
Reverse-polarity protection
Short-circuit protection
Overload protection
Four yellow LED switching-status indicators
The IEC202 is designed as a full-metal inductive proximity sensor for demanding industrial applications. Its M8 × 1 threaded housing has an overall length of 50 mm, providing a compact and robust form factor for machine-tool and automation installations.
The housing, sensing face and lock nuts are manufactured from stainless steel 1.4404 / 316L, providing a durable construction suitable for demanding industrial environments.
The sensor is flush mountable, allowing it to be integrated neatly into compatible metal machine structures while maintaining reliable sensing performance.
The IEC202 features a full-metal housing and metal sensing face designed for heavy-duty applications.
Its stainless-steel construction makes it suitable for machine tools and metalworking environments where sensors may be exposed to oils and coolants. The sensing face has a pressure rating of 50 bar / 10 MPa.
This robust construction makes the IEC202 suitable for applications where mechanical durability and reliable sensing performance are important.
The IEC202 provides a 2 mm sensing range with a real sensing range of 2 ± 10% mm.
Its operating distance is specified as 0–1.6 mm, while the increased sensing range supports dependable detection of suitable metallic targets.
The documented correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.7
Aluminium: 0.6
Copper: 0.5
The hysteresis is specified as 1–20% of Sr, with switch-point drift of -10 to +10% of Sr.
The IEC202 uses a DC NPN normally-open output, making it suitable for compatible PLCs, industrial controllers and automation systems.
The sensor operates from 10–30 V DC and provides a permanent switching output current rating of 100 mA. The maximum switching-output voltage drop is 2.5 V.
Short-circuit and overload protection support dependable electrical operation when the sensor is correctly installed and connected.
The IEC202 is intended for demanding machine-tool and metalworking applications.
It can be used for:
Machine position detection
Metal workpiece detection
Tool position monitoring
Machine component detection
Clamping-position detection
Conveyor monitoring
Automated counting
Assembly machinery
Production-line control
Metalworking equipment
Coolant-exposed machinery
Industrial machine automation
The IEC202 is designed to operate reliably in industrial environments where exposure to oils, coolants and lubricants may occur. Its full-metal stainless-steel construction, metal sensing face and increased sensing range make it suitable for demanding machine-tool applications.
The sensing face provides a pressure rating of 50 bar / 10 MPa, supporting applications where the sensor can be exposed to elevated mechanical pressure.
The sensor provides IP65 protection, with IP67 protection when an IFM socket is correctly screwed onto the connector. Its specified ambient temperature range is -25 °C to +70 °C.
The IEC202 features an M8 × 1 threaded housing with a 50 mm overall length.
Its electrical connection uses one M8 connector with A coding and gold-plated contacts, providing a practical connection solution for compatible industrial sensor cabling.
Four yellow LEDs provide switching-status indication, helping technicians identify sensor operation during installation, commissioning and maintenance.
The IEC202 can be integrated into Industrial Automation UAE systems requiring reliable detection of metallic components and machine-position feedback.
It can operate alongside PLCs, controllers, machine-control systems and other Industrial Automation Components UAE to provide reliable detection signals.
For Industrial Automation Suppliers UAE, the IEC202 offers a compact full-metal sensing solution for machine builders, manufacturing facilities, metalworking plants and automation system integrators.
Full-metal stainless-steel construction
2 mm sensing range
Increased sensing range
M8 × 1 threaded housing
50 mm overall length
Flush-mountable installation
NPN normally-open output
10–30 V DC operation
100 Hz switching frequency
100 mA permanent switching current
M8 A-coded connector
Gold-plated connector contacts
IP65 protection
IP67 protection with correctly fitted IFM socket
Resistance to oils and coolants
50 bar pressure rating at sensing face
Reverse-polarity protection
Short-circuit protection
Overload protection
Four yellow LED switching-status indicators
The IFM IEC202 IEB3002BANKG/AM/AS is a robust inductive full-metal sensor designed for reliable metal detection in machine tools, metalworking equipment and demanding industrial automation environments. Its stainless-steel construction, 2 mm sensing range, NPN normally-open output, M8 × 1 housing, increased sensing range and resistance to oils and coolants make it a dependable solution for industrial machinery and factory automation applications.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IEC202 |
| Manufacturer | IFM |
| Model / Part Number | IEB3002BANKG/AM/AS |
| Product Type | Inductive Full-Metal Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Increased Sensing Range | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 100 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.7 |
| Correction Factor – Aluminium | 0.6 |
| Correction Factor – Copper | 0.5 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | Stainless steel 1.4404 / 316L |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Full-Metal Housing | Yes |
| Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Connector Contacts | Gold-plated |
| Status Indication | 4 × yellow LED |
| Protection Rating | IP65 |
| Protection Rating with IFM Socket | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| Pressure Rating | 50 bar / 10 MPa |
| Pressure Rating Location | Sensing face |
| Application | Machine tools, metalworking, coolants and lubricants |
| Special Features | Gold-plated contacts; increased sensing range; full-metal housing |
| Impact Resistance | 1 J |
| MTTF | Approx. 1386 years |
| Weight | Approx. 18 g |
| Tightening Torque | < 5 Nm |
| Accessories Included | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Machine tools, metalworking, industrial automation, metal detection, position sensing and machine control |
