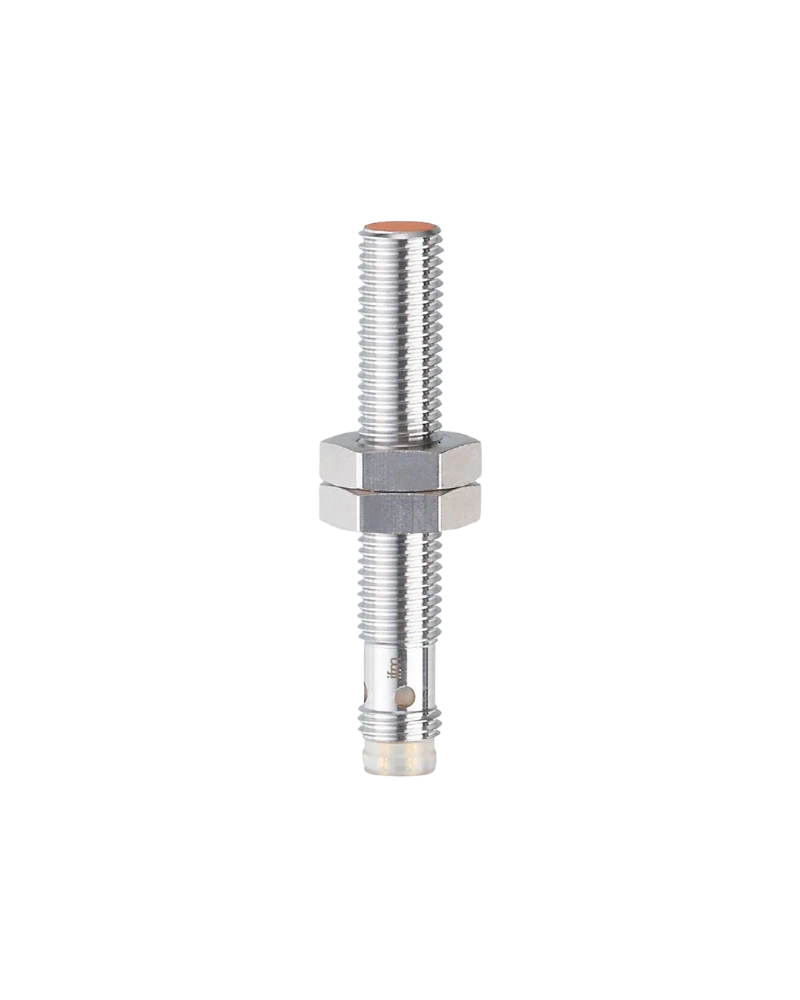

The IFM IEC201 IEB3002BBPKG/AM/AS inductive full-metal sensor is engineered for reliable non-contact detection of metallic objects in machine tools, metalworking equipment and demanding industrial automation applications. With a 2 mm sensing range, PNP normally-open output, 10–30 V DC operation, M8 × 1 threaded full-metal housing and IP67 protection, it is designed for applications exposed to oils and coolants. Its stainless-steel construction and increased sensing range provide dependable performance in demanding Industrial Automation UAE environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IEC201 IEB3002BBPKG/AM/AS inductive full-metal sensor is designed for dependable non-contact detection of metallic objects in industrial automation, machine tools, metalworking equipment and factory production systems. Its full-metal stainless-steel construction provides a robust sensing solution for applications where sensors can be exposed to oils, coolants and mechanical stresses.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated detection of machine components, workpieces, moving parts and tooling elements during automated manufacturing processes.
The IEC201 provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.6 mm. Its increased sensing range supports reliable detection while maintaining a compact M8 × 1 threaded design.
IFM IEC201 inductive full-metal sensor
Model: IEB3002BBPKG/AM/AS
2 mm sensing range
Real sensing range: 2 ± 10%
Operating distance: 0–1.6 mm
Increased sensing range
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
100 mA permanent switching current
100 Hz switching frequency
M8 × 1 threaded housing
50 mm overall length
Flush-mountable installation
Full-metal stainless-steel housing
Stainless-steel sensing face
Gold-plated connector contacts
M8 A-coded connector
IP67 protection rating
Suitable for oils and coolants
50 bar pressure rating at sensing face
Reverse-polarity protection
Short-circuit protection
Overload protection
Four yellow LED switching-status indicators
The IEC201 is designed as a full-metal inductive proximity sensor for demanding industrial applications. Its M8 × 1 threaded housing has an overall length of 50 mm, providing a compact and robust form factor for machine-tool and automation installations.
The housing and sensing face are manufactured from stainless steel 316L / 1.4404, while the lock nuts are also stainless steel. This full-metal construction provides enhanced mechanical durability for demanding industrial environments.
The sensor is flush mountable, allowing it to be installed neatly into compatible metal machine structures while maintaining reliable sensing performance.
The IEC201 is specifically designed with a full-metal housing and metal sensing face for heavy-duty industrial applications.
Its stainless-steel construction makes it suitable for machine tools and metalworking environments where sensors may be exposed to oils and coolants. IFM specifies a pressure rating of 50 bar / 10 MPa at the sensing face.
This makes the IEC201 a practical choice for demanding Industrial Automation Components UAE applications where robust sensor construction is important.
The IEC201 provides a 2 mm sensing range with a real sensing range of 2 ± 10% mm.
Its operating distance is specified as 0–1.6 mm, while the increased sensing range supports dependable detection of suitable metallic targets.
The documented correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.7
Aluminium: 0.6
Copper: 0.5
The hysteresis is specified as 1–20% of Sr, with switch-point drift of -10 to +10%.
The IEC201 uses a DC PNP normally-open output, making it suitable for compatible PLCs, industrial controllers and automation systems.
The sensor operates from 10–30 V DC and provides a permanent switching output current rating of 100 mA. The maximum switching-output voltage drop is 2.5 V.
Short-circuit and overload protection support dependable electrical operation when the sensor is correctly installed and connected.
The IEC201 is designed for demanding machine-tool and metalworking applications.
It can be used for:
Machine position detection
Metal workpiece detection
Tool position monitoring
Machine component detection
Clamping-position detection
Conveyor monitoring
Automated counting
Assembly machinery
Production-line control
Metalworking equipment
Coolant-exposed machinery
Industrial machine automation
The IEC201 is designed to operate reliably in industrial environments with exposure to oils and coolants. Its full-metal stainless-steel construction, increased sensing range and robust mechanical design make it suitable for machine tools and metalworking applications. The sensing face is rated for pressures up to 50 bar / 10 MPa.
The sensor provides IP67 protection, helping protect against dust and water ingress under the specified operating conditions. Its ambient operating temperature range is -25 °C to +70 °C.
The IEC201 features an M8 × 1 threaded housing with a 50 mm overall length.
Its electrical connection uses one M8 A-coded connector with gold-plated contacts, providing a practical connection solution for compatible industrial sensor cabling.
Four yellow LEDs provide switching-status indication, helping technicians identify sensor operation during installation, commissioning and maintenance.
The IEC201 can be integrated into Industrial Automation UAE systems requiring reliable metal detection and machine-position feedback.
It can operate alongside PLCs, controllers, machine-control systems and other Industrial Automation Components UAE to provide reliable detection signals.
For Industrial Automation Suppliers UAE, the IEC201 offers a compact full-metal sensing solution for machine builders, manufacturing facilities, metalworking plants and automation system integrators.
Full-metal stainless-steel construction
2 mm sensing range
Increased sensing range
M8 × 1 threaded housing
50 mm overall length
Flush-mountable installation
PNP normally-open output
10–30 V DC operation
100 Hz switching frequency
100 mA permanent switching current
M8 A-coded connector
Gold-plated connector contacts
IP67 protection
Resistance to oils and coolants
50 bar pressure rating at sensing face
Reverse-polarity protection
Short-circuit protection
Overload protection
Four yellow LED switching-status indicators
The IFM IEC201 IEB3002BBPKG/AM/AS is a robust inductive full-metal sensor designed for reliable metal detection in machine tools, metalworking equipment and demanding industrial automation environments. Its stainless-steel construction, 2 mm sensing range, PNP normally-open output, M8 × 1 housing, increased sensing range and resistance to oils and coolants make it a dependable solution for industrial machinery and factory automation applications.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IEC201 |
| Manufacturer | IFM |
| Model / Part Number | IEB3002BBPKG/AM/AS |
| Product Type | Inductive Full-Metal Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Increased Sensing Range | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 100 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 1–20% of Sr |
| Switch-Point Drift | -10 to +10% |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.7 |
| Correction Factor – Aluminium | 0.6 |
| Correction Factor – Copper | 0.5 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 316L / 1.4404 |
| Sensing Face Material | Stainless steel 316L / 1.4404 |
| Lock Nut Material | Stainless steel 316L / 1.4404 |
| Full-Metal Housing | Yes |
| Connection | 1 × M8 connector |
| Connector Coding | A-coded |
| Connector Contacts | Gold-plated |
| Status Indication | 4 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| Pressure Rating | 50 bar / 10 MPa |
| Pressure Rating Location | Sensing face |
| Application | Machine tools, coolants and lubricants |
| Special Features | Gold-plated contacts; increased sensing range |
| Typical Applications | Machine tools, metalworking, industrial automation, metal detection, position sensing and machine control |
| Weight | 18.1 g |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
