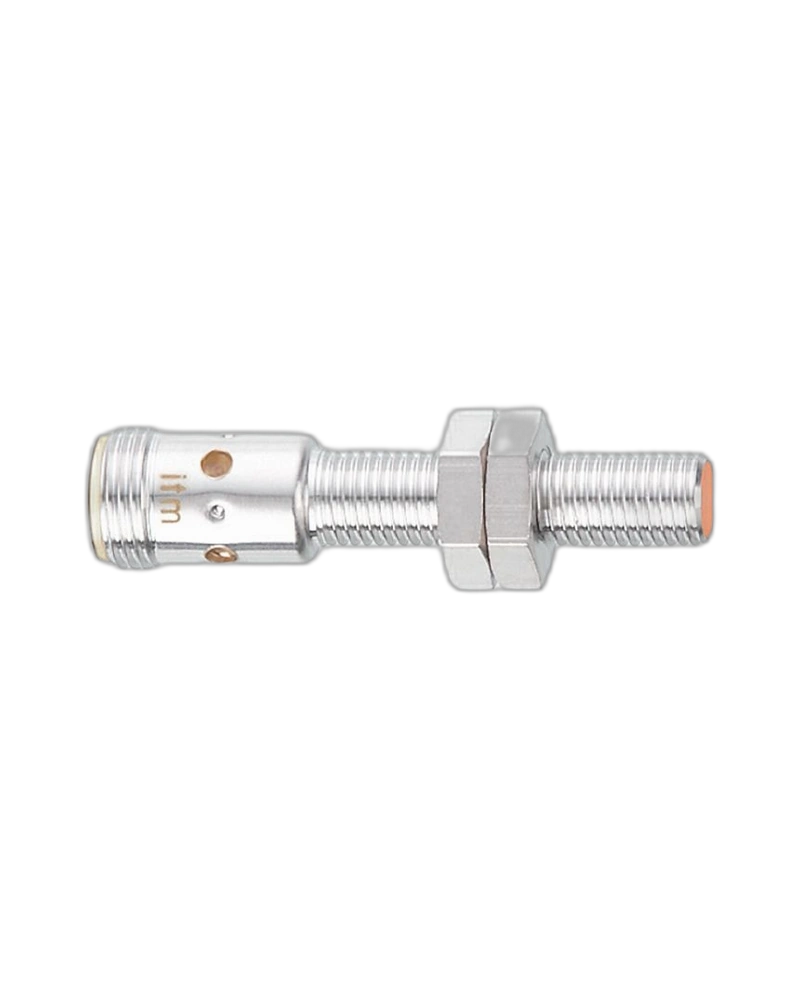

The IFM IEC200 IEK3002BBPKG/AM/US-104 inductive full-metal sensor is designed for reliable non-contact detection of metallic objects in machine tools, metalworking equipment and demanding industrial automation applications. With a 2 mm sensing range, PNP normally-open output, 10–30 V DC operation, M8 × 1 full-metal housing and IP67 protection, it is particularly suitable for environments exposed to coolants, lubricants and mechanical loads. Its robust stainless-steel construction and increased sensing range support dependable operation in demanding Industrial Automation UAE applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IEC200 IEK3002BBPKG/AM/US-104 inductive full-metal sensor is engineered for dependable non-contact detection of metallic objects in industrial automation, machine tools, metalworking equipment and factory production systems. Its full-metal construction provides a robust sensing solution for demanding environments where conventional sensor housings may be exposed to coolants, lubricants and mechanical stresses.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated detection of machine components, workpieces, moving parts and tooling elements during automated manufacturing processes.
The IEC200 provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.62 mm. Its increased sensing range helps provide reliable target detection while maintaining a compact M8 × 1 threaded design.
IFM IEC200 inductive full-metal sensor
Model: IEK3002BBPKG/AM/US-104
2 mm sensing range
Real sensing range: 2 ± 10%
Operating distance: 0–1.62 mm
Increased sensing range
DC PNP electrical design
Normally-open output
10–30 V DC operating voltage
100 mA permanent switching current
100 Hz switching frequency
M8 × 1 threaded housing
60 mm overall length
Flush-mountable installation
Full-metal housing
Stainless-steel construction
Gold-plated connector contacts
M12 A-coded connector
IP67 protection
IP68 protection
IP69K protection
Suitable for coolant applications
Suitable for lubricant-exposed environments
Reverse-polarity protection
Short-circuit protection
Overload protection
Four yellow LED switching-status indicators
The IEC200 is designed as a full-metal inductive proximity sensor for demanding industrial applications. Its M8 × 1 threaded housing has an overall length of 60 mm, providing a compact but robust form factor for machine-tool and automation installations.
The housing, sensing face and lock nuts are manufactured from stainless steel 1.4404 / 316L, providing a durable construction suitable for harsh industrial environments. The full-metal design is particularly advantageous in applications where the sensor may be exposed to metalworking fluids, coolants and lubricants.
The sensor is flush mountable, allowing it to be integrated into compatible metal machine structures while maintaining reliable sensing performance.
The IEC200 is specifically designed with a full-metal housing for heavy-duty industrial applications.
Its stainless-steel construction provides improved mechanical robustness and makes the sensor suitable for machine tools and metalworking environments. IFM specifies the IEC200 for applications involving coolants and lubricants, with a pressure rating of up to 50 bar at the sensing face.
This construction makes the IEC200 a suitable choice for applications where sensors may be exposed to aggressive operating conditions.
The IEC200 provides a 2 mm sensing range and a real sensing range of 2 ± 10% mm.
Its operating distance is specified as 0–1.62 mm, while the sensor provides an increased sensing range for dependable detection of suitable metallic targets.
The documented correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.7
Aluminium: 0.6
Copper: 0.5
The hysteresis is specified as 1–20% of Sr.
The IEC200 uses a DC PNP normally-open output, making it suitable for compatible PLCs, industrial controllers and automation systems.
The sensor operates from 10–30 V DC and provides a permanent switching output current rating of 100 mA. The maximum switching-output voltage drop is 2.5 V.
Short-circuit and overload protection support dependable electrical operation when the sensor is correctly installed and connected.
The IEC200 is designed specifically for demanding machine-tool and metalworking applications.
It can be used for:
Machine position detection
Metal workpiece detection
Tool position monitoring
Machine component detection
Clamping-position detection
Conveyor monitoring
Automated counting
Assembly machinery
Production-line control
Metalworking equipment
Coolant-exposed machinery
Industrial machine automation
The IEC200 is designed to operate in demanding industrial environments. Its full-metal stainless-steel housing, increased sensing range and resistance to coolants and lubricants make it suitable for machine tools and metalworking applications. IFM lists a pressure rating of 50 bar / 10 MPa at the sensing face.
The sensor provides IP67, IP68 and IP69K protection, supporting use in environments where protection against dust, water and intensive cleaning conditions is required.
The IEC200 features an M8 × 1 threaded housing with a 60 mm overall length.
Its electrical connection is provided through one M12 connector with A coding and gold-plated contacts, offering a practical connection solution for compatible industrial sensor cabling.
The IEC200 can be incorporated into Industrial Automation UAE systems where reliable metal detection is required.
It can work alongside PLCs, controllers, machine-control systems and other Industrial Automation Components UAE to provide position and presence feedback.
For Industrial Automation Suppliers UAE, the IEC200 provides a robust sensing component for machine builders, manufacturing plants, metalworking facilities and system integrators.
Full-metal stainless-steel construction
2 mm sensing range
Increased sensing range
M8 × 1 threaded housing
60 mm overall length
Flush-mountable installation
PNP normally-open output
10–30 V DC operation
100 Hz switching frequency
100 mA permanent switching current
M12 A-coded connector
Gold-plated connector contacts
IP67 protection
IP68 protection
IP69K protection
Resistance to coolants and lubricants
50 bar pressure rating at sensing face
Reverse-polarity protection
Short-circuit protection
Overload protection
Four yellow LED switching-status indicators
The IFM IEC200 IEK3002BBPKG/AM/US-104 is a robust inductive full-metal sensor designed for reliable metal detection in machine tools, metalworking equipment and demanding industrial automation environments. Its stainless-steel construction, 2 mm sensing range, PNP normally-open output, M8 × 1 housing, increased sensing range and high protection ratings make it a dependable choice for applications exposed to coolants, lubricants and harsh operating conditions.
It is suitable for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, Industrial Automation Supplier in UAE and Industrial Automation Equipment UAE.
| Specification | Details |
|---|---|
| Product Code | IEC200 |
| Manufacturer | IFM |
| Model / Part Number | IEK3002BBPKG/AM/US-104 |
| Product Type | Inductive Full-Metal Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.62 mm |
| Increased Sensing Range | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 100 Hz |
| Short-Circuit Protection | Yes |
| Short-Circuit Protection Type | Pulsed |
| Overload Protection | Yes |
| Hysteresis | 1–20% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.7 |
| Correction Factor – Aluminium | 0.6 |
| Correction Factor – Copper | 0.5 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 60 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | Stainless steel 1.4404 / 316L |
| Lock Nut Material | Stainless steel 1.4404 / 316L |
| Full-Metal Housing | Yes |
| Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Connector Contacts | Gold-plated |
| Status Indication | 4 × 90° yellow LED |
| Protection Rating | IP67 / IP68 / IP69K |
| Pressure Rating | 50 bar / 10 MPa at sensing face |
| Application | Machine tools and metalworking |
| Coolant Resistance | Suitable for coolant applications |
| Lubricant Resistance | Suitable for lubricant-exposed applications |
| Typical Applications | Machine tools, metalworking, industrial automation, metal detection, position sensing and machine control |
| Weight | 21.4 g |
