The IFM IE9902 IEB2002-BARKG/0,80M/PUR/US/RT inductive sensor is designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 2 mm sensing range, PNP/NPN normally-open output, 10–55 V DC operation, 1000 Hz switching frequency, 0.8 m PUR cable with M12 connector and IP67 protection. Its compact M8 × 1 flush-mountable housing is suitable for machinery, conveyors, assembly equipment and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE9902 IEB2002-BARKG/0,80M/PUR/US/RT inductive sensor is engineered for reliable non-contact detection of metallic objects in industrial automation, machinery, assembly equipment and factory production systems. Its particularly short M8 × 1 housing makes it suitable for installations where space is restricted while dependable proximity detection is required.
The IE9902 uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated detection of machine components, workpieces, moving parts and other metallic objects during automated processes.
The sensor provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.62 mm. Its flush-mountable construction allows convenient installation into suitable machine structures and fixtures.

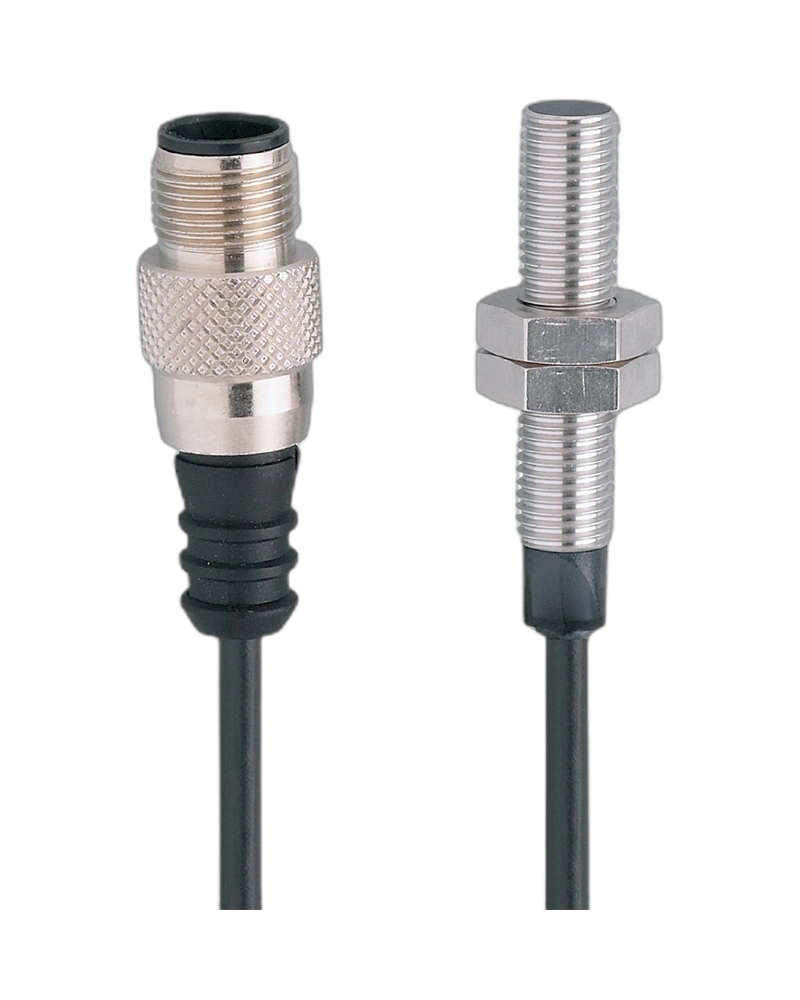

IFM IE9902 inductive proximity sensor
Model: IEB2002-BARKG/0,80M/PUR/US/RT
2 mm nominal sensing range
Real sensing range: 2 ± 10%
Operating distance: 0–1.62 mm
DC PNP/NPN electrical design
Normally-open output
10–55 V DC operating voltage
1000 Hz switching frequency
100 mA permanent switching current
4.5 V maximum voltage drop
2-wire technology
M8 × 1 threaded housing
42 mm overall length
Flush-mountable installation
0.8 m PUR cable
M12 A-coded connector
Brass housing with white-bronze coating
IP67 protection rating
-25 °C to +80 °C ambient temperature range
Short-circuit protection
Overload protection
Reverse-polarity protection
LED switching-status indication
The IE9902 features a threaded M8 × 1 housing with a 42 mm overall length. Its flush-mountable construction allows the sensor to be integrated neatly into compatible machine structures while maintaining reliable proximity detection.
The housing is manufactured from brass with a white-bronze coating, providing a robust construction for industrial environments. The compact design is particularly useful for machine installations with limited available space.
The sensor uses a DC PNP/NPN electrical design with a normally-open switching function, allowing integration into compatible industrial control systems.
The IE9902 provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.62 mm.
The specified correction factors are:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
The hysteresis is 3–15% of Sr, while switch-point drift is specified as -10 to +10% of Sr.
The IE9902 uses a PNP/NPN normally-open output, making it suitable for compatible PLCs, controllers and industrial automation systems.
The sensor operates from 10–55 V DC and supports a permanent switching current of 100 mA. The maximum voltage drop of the switching output is 4.5 V, with a minimum load current of 5 mA.
The 2-wire technology provides a practical connection arrangement for compatible industrial control applications.
With a 1000 Hz switching frequency, the IE9902 supports repetitive detection tasks in automated machinery and production systems.
This switching performance makes it suitable for detecting moving metallic components, monitoring machine positions, counting workpieces and providing feedback during automated processes.
The IE9902 can be incorporated into a wide range of Industrial Automation UAE applications.
Machine position detection
Metal component detection
Assembly machinery
Conveyor monitoring
Automated counting
Production-line control
Machine sequencing
Workpiece detection
Material handling equipment
Position feedback
Factory automation systems
The IE9902 is designed for industrial environments with an ambient temperature range of -25 °C to +80 °C and an IP67 protection rating. These characteristics support operation in machinery and factory environments where protection against dust and water ingress is required under specified conditions.
The sensor incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The 0.8 m PUR cable with M12 connector provides a practical connection solution for compatible industrial control systems. The connector is specified as M12 with A coding.
The M8 × 1 threaded housing and 42 mm overall length provide a compact sensing solution for industrial machinery and automation equipment.
The flush-mountable construction makes the IE9902 suitable for installation in compatible metal machine structures where a compact sensor arrangement is required.
Compact M8 × 1 threaded construction
42 mm overall length
2 mm sensing range
0–1.62 mm operating distance
1000 Hz switching frequency
PNP/NPN electrical design
Normally-open output
10–55 V DC operation
2-wire technology
0.8 m PUR cable
M12 A-coded connector
Flush-mountable installation
Robust brass housing with white-bronze coating
IP67 protection
-25 °C to +80 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
LED switching-status indication
The IFM IE9902 IEB2002-BARKG/0,80M/PUR/US/RT is a compact and dependable inductive proximity sensor designed for non-contact metal detection in industrial automation. Its 2 mm sensing range, PNP/NPN normally-open output, 1000 Hz switching frequency, M8 × 1 flush-mountable housing, 0.8 m PUR cable and IP67 protection make it suitable for machinery, assembly systems, conveyors and factory automation applications. It is a practical choice for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Suppliers UAE.
| Specification | Details |
|---|---|
| Product Code | IE9902 |
| Manufacturer | IFM |
| Model / Part Number | IEB2002-BARKG/0,80M/PUR/US/RT |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP/NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–55 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.62 mm |
| Switching Frequency | 1000 Hz |
| Permanent Current Rating | 100 mA |
| Maximum Voltage Drop | 4.5 V |
| Minimum Load Current | 5 mA |
| Maximum Leakage Current | 0.6 mA |
| Short-Circuit Protection | Yes |
| Short-Circuit Protection Type | Pulsed |
| Overload Protection | Yes |
| Hysteresis | 3–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 42 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Connection | 0.8 m PUR cable with M12 connector |
| Connector | M12, A-coded |
| Technology | 2-wire |
| Status Indication | 1 × yellow LED, switching status |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 2460 years |
| Weight | Approx. 43 g |
| Included Accessories | 2 fixing nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems, assembly machinery and factory automation |
