The IFM IE9203 IEB2002BARKG/2M/PUR RT inductive sensor is designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 2 mm sensing range, PNP/NPN normally-open output, 10–55 V DC operation, 1000 Hz switching frequency, 2 m PUR cable and IP67 protection. Its compact M8 × 1 threaded housing and flush-mountable design make it suitable for machinery, conveyors, assembly equipment and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE9203 IEB2002BARKG/2M/PUR RT inductive sensor is engineered for reliable non-contact detection of metallic objects in industrial automation, machinery, assembly equipment and factory production systems. Its compact threaded housing and robust metal construction make it suitable for applications where dependable proximity detection is required in demanding industrial environments.
The IE9203 uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated detection of machine components, workpieces, moving parts and other metallic objects during automated processes.
The sensor provides a 2 mm nominal sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.62 mm. Its flush-mountable M8 × 1 construction allows convenient installation in suitable machine structures.
IFM IE9203 inductive proximity sensor
Model: IEB2002BARKG/2M/PUR RT
2 mm nominal sensing range
Real sensing range: 2 ± 10%
Operating distance: 0–1.62 mm
DC PNP/NPN electrical design
Normally open output
10–55 V DC operating voltage
1000 Hz switching frequency
100 mA permanent switching current
4.5 V maximum voltage drop
2-wire technology
M8 × 1 threaded housing
42 mm overall length
Flush-mountable installation
2 m PUR cable
2 × 0.14 mm² cable construction
Brass housing with white-bronze coating
IP67 protection rating
-25 °C to +80 °C ambient temperature range
Short-circuit protection
Overload protection
Reverse-polarity protection
LED switching-status indication

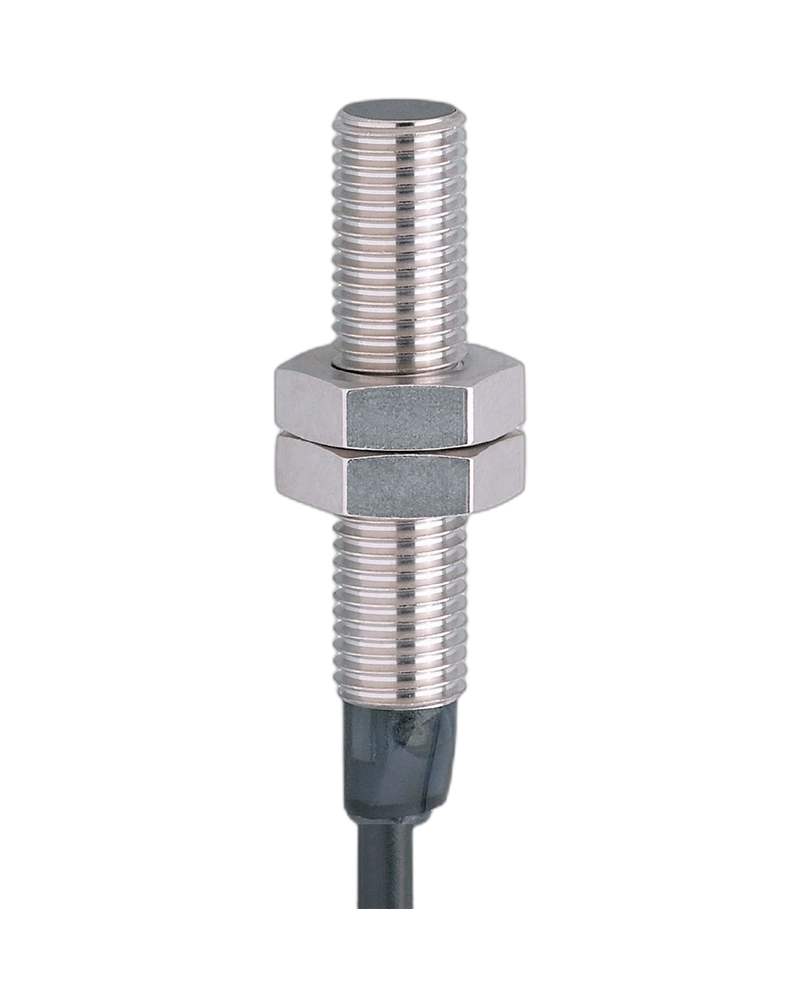

The IE9203 features an M8 × 1 threaded metal housing with a 42 mm overall length. Its flush-mountable construction allows the sensor to be installed neatly into suitable machine structures and fixtures. The robust brass housing is coated with white bronze for industrial use.
The sensor uses a DC PNP/NPN electrical design with a normally-open switching function, providing flexible integration into compatible industrial control systems.
Its compact cylindrical design makes the IE9203 suitable for machinery and automation installations where reliable proximity detection is required without using a larger sensor body.
The IE9203 provides a 2 mm sensing range, with a real sensing range of 2 ± 10% mm and an operating distance of 0–1.62 mm.
The correction factors vary according to the target material:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
The hysteresis is specified as 3–15% of Sr, while switch-point drift is -10 to +10% of Sr.
The IE9203 uses a PNP/NPN normally-open output, making it suitable for compatible PLCs, controllers and industrial automation systems.
The sensor operates from 10–55 V DC and supports a permanent switching current of 100 mA. Its maximum switching output voltage drop is 4.5 V.
The 2-wire configuration provides a simple connection arrangement for compatible industrial control applications.
With a 1000 Hz switching frequency, the IE9203 can support repetitive detection tasks in automated machinery and production systems.
This switching performance makes the sensor suitable for detecting moving metallic components, monitoring machine positions, counting workpieces and providing feedback during automated processes.
The IE9203 can be integrated into a wide range of Industrial Automation UAE applications.
Machine position detection
Metal component detection
Assembly machinery
Conveyor monitoring
Automated counting
Production-line control
Machine sequencing
Workpiece detection
Material handling equipment
Position feedback
Factory automation systems
The IE9203 is designed for industrial environments with an ambient temperature range of -25 °C to +80 °C and an IP67 protection rating. These characteristics support operation in machinery and factory environments where protection against dust and water ingress is required under specified conditions.
The sensor incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The 2 m PUR cable provides a direct connection solution for compatible control systems. The cable is specified as 2 × 0.14 mm².
The M8 × 1 threaded housing and 42 mm overall length provide a compact sensing solution for industrial machinery and automation equipment.
The flush-mountable design allows the sensor to be integrated into suitable machine structures while maintaining a practical sensing position.
Compact M8 × 1 threaded construction
42 mm overall length
2 mm sensing range
0–1.62 mm operating distance
1000 Hz switching frequency
PNP/NPN electrical design
Normally open output
10–55 V DC operation
2-wire technology
2 m PUR cable
Flush-mountable installation
Robust brass housing with white-bronze coating
IP67 protection
-25 °C to +80 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
LED switching-status indication
The IFM IE9203 IEB2002BARKG/2M/PUR RT is a dependable inductive proximity sensor designed for non-contact metal detection in industrial automation. Its 2 mm sensing range, PNP/NPN normally-open output, 1000 Hz switching frequency, M8 × 1 flush-mountable housing, 2 m PUR cable and IP67 protection make it suitable for machinery, assembly systems, conveyors and factory automation applications. It is a practical choice for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Suppliers UAE.
| Specification | Details |
|---|---|
| Product Code | IE9203 |
| Manufacturer | IFM |
| Model / Part Number | IEB2002BARKG/2M/PUR RT |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | DC PNP/NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–55 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.62 mm |
| Switching Frequency | 1000 Hz |
| Permanent Current Rating | 100 mA |
| Maximum Voltage Drop | 4.5 V |
| Minimum Load Current | 5 mA |
| Maximum Leakage Current | 0.6 mA |
| Short-Circuit Protection | Yes |
| Short-Circuit Protection Type | Pulsed |
| Overload Protection | Yes |
| Hysteresis | 3–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 42 mm |
| Mounting | Flush mountable |
| Housing Material | Brass, white-bronze coated |
| Connection | 2 m PUR cable |
| Cable Construction | 2 × 0.14 mm² |
| Status Indication | LED, switching status |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +80 °C |
| EMC Standard | EN 60947-5-2 |
| EMC Emission | EN 55011 Class B |
| MTTF | Approx. 2460 years |
| Weight | Approx. 45.4 g |
| Included Accessories | 2 fixing nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems, assembly machinery and factory automation |
