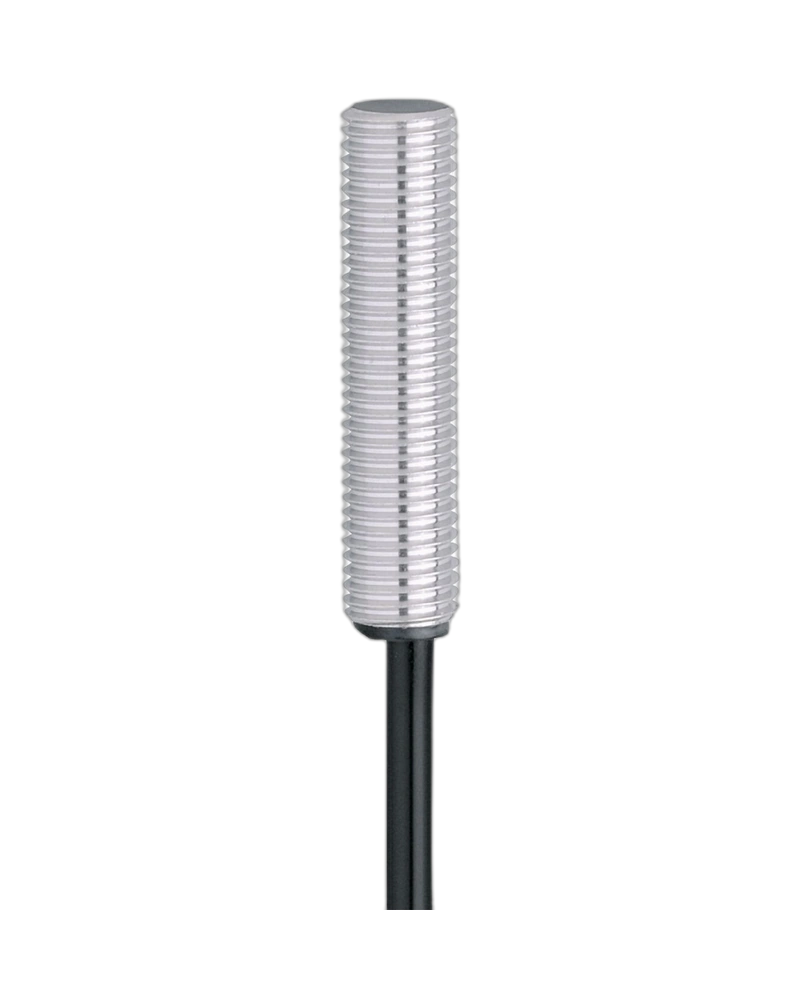

The IFM IE5461 IEBC003BASKG/1M inductive sensor is designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. With a 3 mm sensing range, configurable PNP/NPN normally-open output, 10–30 V DC operation, 1000 Hz switching frequency and 1 m PVC cable, it provides flexible and dependable metal detection in compact installations. Its M8 × 1 threaded housing, flush mounting and IP67 protection make it suitable for machinery, conveyors, assembly equipment and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5461 IEBC003BASKG/1M inductive sensor is engineered for dependable non-contact detection of metallic objects in industrial automation, machinery, assembly equipment and factory production systems. Its particularly short M8 × 1 housing makes it an excellent choice for installations where mounting space is restricted while reliable proximity detection and fast switching performance are required.
The IE5461 uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated detection of machine components, workpieces, moving parts and other metallic objects during automated processes.
The sensor provides a 3 mm sensing range with an operating distance of 0–2.4 mm. Its flexible electrical design allows operation as either a PNP or NPN device, while the normally-open output provides a practical switching signal for compatible PLCs, controllers and industrial automation systems.
IFM IE5461 inductive proximity sensor
Model: IEBC003BASKG/1M
3 mm sensing range
Operating distance: 0–2.4 mm
PNP/NPN electrical design
Normally open output
10–30 V DC operating voltage
1000 Hz switching frequency
100 mA permanent switching current
2.8 V maximum voltage drop
M8 × 1 threaded housing
35 mm housing length
Flush-mountable installation
1 m PVC cable
3 × 0.14 mm² cable construction
Brass housing with white-bronze coating
LCP sensing face
IP67 protection rating
0 °C to +70 °C ambient temperature range
Short-circuit protection
Overload protection
Reverse-polarity protection
1 yellow LED switching-status indication
2 supplied lock nuts
The IE5461 features a particularly short M8 × 1 threaded housing, making it suitable for machine structures and automation equipment where installation space is limited. The sensor has an overall housing length of approximately 35 mm and is designed for flush mounting.
Its brass housing with white-bronze coating provides a robust construction for industrial applications, while the LCP sensing face supports dependable inductive detection.
The PNP/NPN configurable electrical design provides additional flexibility when integrating the sensor into compatible industrial control architectures.
The IE5461 provides a 3 mm sensing range and an operating distance of 0–2.4 mm, allowing reliable detection of suitable metallic targets within its specified detection zone.
The correction factors vary according to the material being detected:
Steel: 1
Stainless steel: 0.7
Brass: 0.5
Aluminium: 0.4
Copper: 0.3
The hysteresis is specified at 1–15% of Sr.
The IE5461 uses a PNP/NPN electrical design with a normally-open output, providing flexible integration with compatible PLCs and automation controllers.
The sensor operates from a 10–30 V DC supply and supports a permanent switching current of 100 mA. Its maximum switching output voltage drop is 2.8 V.
The sensor can be used as a three-wire or two-wire device, helping reduce the number of different sensor variants required for suitable automation installations.
With a 1000 Hz switching frequency, the IE5461 is suitable for repetitive detection tasks in automated machinery and production systems.
This switching capability allows the sensor to provide fast detection feedback for moving metallic components, machine-position monitoring, counting and other automated processes.
The IE5461 can be integrated into a wide range of Industrial Automation UAE applications.
Machine position detection
Metal component detection
Assembly machinery
Conveyor monitoring
Automated counting
Production-line control
Machine sequencing
Workpiece detection
Material handling equipment
Position feedback
Factory automation systems
The IE5461 is designed for reliable operation in industrial environments with an ambient temperature range of 0 °C to +70 °C and an IP67 protection rating. These characteristics make it suitable for machinery and factory environments where protection against dust and water ingress is required under specified conditions.
The sensor incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
Its 1 m PVC cable provides a direct connection solution for compatible control systems. The cable uses a 3 × 0.14 mm² construction.
The particularly short M8 × 1 threaded housing makes the IE5461 suitable for restricted installation spaces where conventional longer proximity sensors may be difficult to accommodate.
Its flush-mountable construction allows the sensor to be integrated neatly into suitable metallic machine structures and fixtures.
Particularly short housing for restricted spaces
3 mm sensing range
0–2.4 mm operating distance
1000 Hz switching frequency
PNP/NPN configurable electrical design
Normally open output
10–30 V DC operation
M8 × 1 threaded construction
Flush-mountable installation
1 m PVC cable
Robust brass housing with white-bronze coating
IP67 protection
0 °C to +70 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching-status indication
The IFM IE5461 IEBC003BASKG/1M is a compact and flexible inductive proximity sensor designed for reliable metal detection in industrial automation. Its 3 mm sensing range, PNP/NPN configurable design, normally-open output, 1000 Hz switching frequency, short M8 × 1 housing, 1 m cable and IP67 protection make it suitable for machinery, assembly systems, conveyors and factory automation applications. It is a practical choice for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Suppliers UAE.
| Specification | Details |
|---|---|
| Product Code | IE5461 |
| Manufacturer | IFM |
| Model / Part Number | IEBC003BASKG/1M |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA, only in 3-wire operation |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 3 mm |
| Operating Distance | 0–2.4 mm |
| Switching Frequency | 1000 Hz |
| Permanent Current Rating | 100 mA |
| Maximum Voltage Drop | 2.8 V |
| Minimum Load Current | 2 mA, only in 2-wire operation |
| Maximum Leakage Current | 0.5 mA, only in 2-wire operation |
| Short-Circuit Protection | Yes |
| Short-Circuit Protection Type | Pulsed |
| Overload Protection | Yes |
| Hysteresis | 1–15% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Dimensions | M8 × 1 / L = 35 mm |
| Mounting | Flush / shielded mounting |
| Housing Material | Brass with white-bronze coating |
| Sensing Face Material | LCP |
| Connection | 1 m PVC cable |
| Cable Construction | 3 × 0.14 mm² |
| Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | 0 °C to +70 °C |
| EMC Standard | EN 60947-5-2 |
| MTTF | Approx. 1517 years |
| Weight | Approx. 35.7 g |
| Tightening Torque | A = 5 mm: 1.5 Nm; B: 2 Nm |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems and factory automation |
