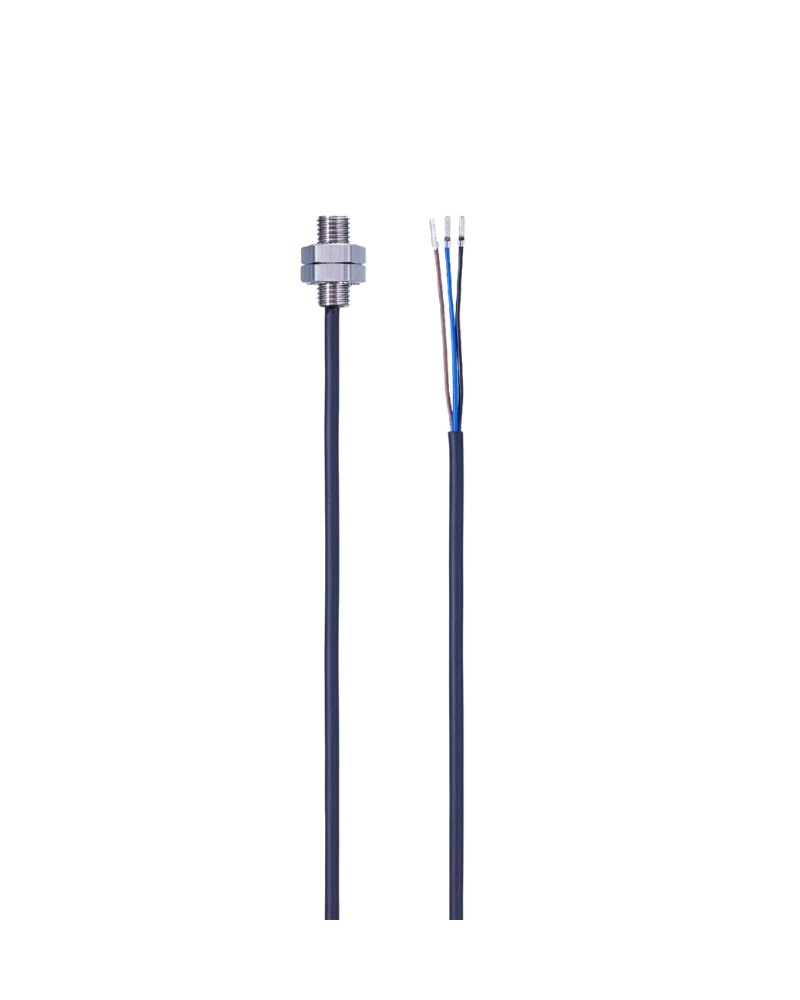

The IFM IE5460 IEB31,5-APKG/2M inductive sensor is a compact M8 × 1 proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. It features a 1.5 mm sensing range, PNP normally closed output, 10–30 V DC operation, 4000 Hz switching frequency, 2 m PVC cable and IP67 protection, making it suitable for fast and space-constrained automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5460 IEB31,5-APKG/2M inductive sensor is engineered for dependable non-contact detection of metallic objects in industrial automation, machinery, assembly equipment and factory production systems. Its particularly short housing makes it an excellent choice for installations where mounting space is restricted while reliable proximity detection and high-speed switching performance are required.
The sensor uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated detection of machine components, workpieces, moving parts and other metallic objects during automated processes.
The IE5460 provides a 1.5 mm sensing range, with a real sensing range of 1.5 ± 10% mm and a guaranteed operating distance of 0–1.2 mm. Its compact construction allows the sensor to be installed close to the target while maintaining dependable detection performance.
IFM IE5460 inductive proximity sensor
Model: IEB31,5-APKG/2M
1.5 mm nominal sensing range
Real sensing range: 1.5 ± 10%
Guaranteed sensing range: 0–1.2 mm
PNP electrical design
Normally closed output
10–30 V DC operating voltage
4000 Hz switching frequency
100 mA permanent switching current
1.5 V maximum voltage drop
M8 × 1 threaded housing
20 mm overall length
Flush-mountable installation
2 m PVC cable
3 × 0.14 mm² cable construction
Nickel-plated brass housing
LCP active face
IP67 protection rating
-25 °C to +70 °C ambient temperature range
Short-circuit protection
Overload protection
Reverse-polarity protection
1 yellow LED switching-status indication
2 supplied lock nuts
The IE5460 features an extremely short M8 × 1 threaded housing with an overall length of only 20 mm. This compact construction is particularly useful for machine structures, fixtures and automation equipment where installation space is limited. The sensor is designed for flush mounting, allowing it to be integrated neatly into suitable machine structures.
Its nickel-plated brass housing provides a robust construction for industrial applications, while the LCP active face supports reliable sensing operation.
The sensor has a 1.5 mm nominal sensing range, a real sensing range of 1.5 ± 10% mm and a guaranteed sensing range of 0–1.2 mm.
Correction factors depend on the material being detected:
Steel: 1
Stainless steel: 0.75
Brass: 0.45
Aluminium: 0.4
Copper: 0.3
The hysteresis is specified as less than 15% of Sr, while switch-point drift is specified as -10 to +10% of Sr.
The IE5460 uses a PNP normally closed output, making it suitable for compatible industrial control systems and PLC-based automation architectures.
The sensor operates from a 10–30 V DC supply and has a permanent switching current rating of 100 mA. Its maximum switching-output voltage drop is 1.5 V.
With a 4000 Hz switching frequency, the IE5460 is designed for high-speed repetitive detection tasks. This makes it suitable for fast-moving machine components, automated production processes and applications requiring frequent switching signals.
Its short housing combined with high switching frequency provides a practical sensing solution for compact and fast industrial machinery.
The IE5460 can be integrated into a wide range of Industrial Automation UAE applications.
Machine position detection
Metal component detection
Assembly machinery
Conveyor monitoring
Automated counting
Production-line control
Machine sequencing
Workpiece detection
Material handling equipment
Position feedback
The IE5460 is designed for reliable operation in industrial environments with an ambient temperature range of -25 °C to +70 °C and an IP67 protection rating. These characteristics make it suitable for machinery and factory environments where protection against dust and water ingress is required under specified conditions.
The sensor incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
Its 2 m PVC cable provides a direct wiring solution for compatible control systems and eliminates the need for a separate sensor connector in installations where a permanently attached cable is preferred.
The particularly short M8 × 1 / 20 mm housing allows the IE5460 to be installed in restricted machine spaces where longer proximity sensors may be difficult to accommodate.
The flush-mountable threaded design provides a practical installation method for suitable metallic machine structures and fixtures.
Extremely short 20 mm housing
Suitable for restricted installation spaces
1.5 mm sensing range
4000 Hz high switching frequency
PNP normally closed output
10–30 V DC operation
M8 × 1 threaded construction
Flush-mountable design
2 m PVC cable
Robust nickel-plated brass housing
IP67 protection
-25 °C to +70 °C operating temperature
Reverse-polarity protection
Short-circuit protection
Overload protection
Yellow LED switching-status indication
The IFM IE5460 IEB31,5-APKG/2M is a compact and high-speed inductive proximity sensor designed for reliable metal detection in industrial automation. Its 20 mm short M8 × 1 housing, 1.5 mm sensing range, PNP normally closed output, 4000 Hz switching frequency, 2 m cable and IP67 protection make it suitable for machinery, assembly systems, conveyors and factory automation applications. It is a practical choice for businesses seeking Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Suppliers UAE.
| Specification | Details |
|---|---|
| Product Code | IE5460 |
| Manufacturer | IFM |
| Model / Part Number | IEB31,5-APKG/2M |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–30 V DC |
| Current Consumption | 10 mA at 24 V |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Sensing Range | 1.5 mm |
| Real Sensing Range (Sr) | 1.5 ± 10% mm |
| Guaranteed Sensing Range | 0–1.2 mm |
| Switching Frequency | 4000 Hz |
| Permanent Current Rating | 100 mA |
| Maximum Voltage Drop | 1.5 V |
| Short-Circuit Protection | Yes |
| Short-Circuit Protection Type | Pulsed |
| Overload Protection | Yes |
| Hysteresis | < 15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.75 |
| Correction Factor – Brass | 0.45 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Housing Type | Threaded housing |
| Thread | M8 × 1 |
| Overall Dimensions | M8 × 1 / L = 20 mm |
| Mounting | Flush mountable |
| Housing Material | Nickel-plated brass |
| Active Face Material | LCP |
| Connection | 2 m PVC cable |
| Cable Construction | 3 × 0.14 mm² |
| Status Indication | 1 × yellow LED |
| Protection Rating | IP67 |
| Ambient Temperature | -25 °C to +70 °C |
| Weight | Approx. 50.5–50.8 g |
| Included Accessories | 2 lock nuts |
| Pack Quantity | 1 piece |
| EMC | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B |
| UL Approval | Yes |
| UL Enclosure Type | Type 1 |
| UL Supply Requirement | Class 2 |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, conveyor systems and factory automation |
