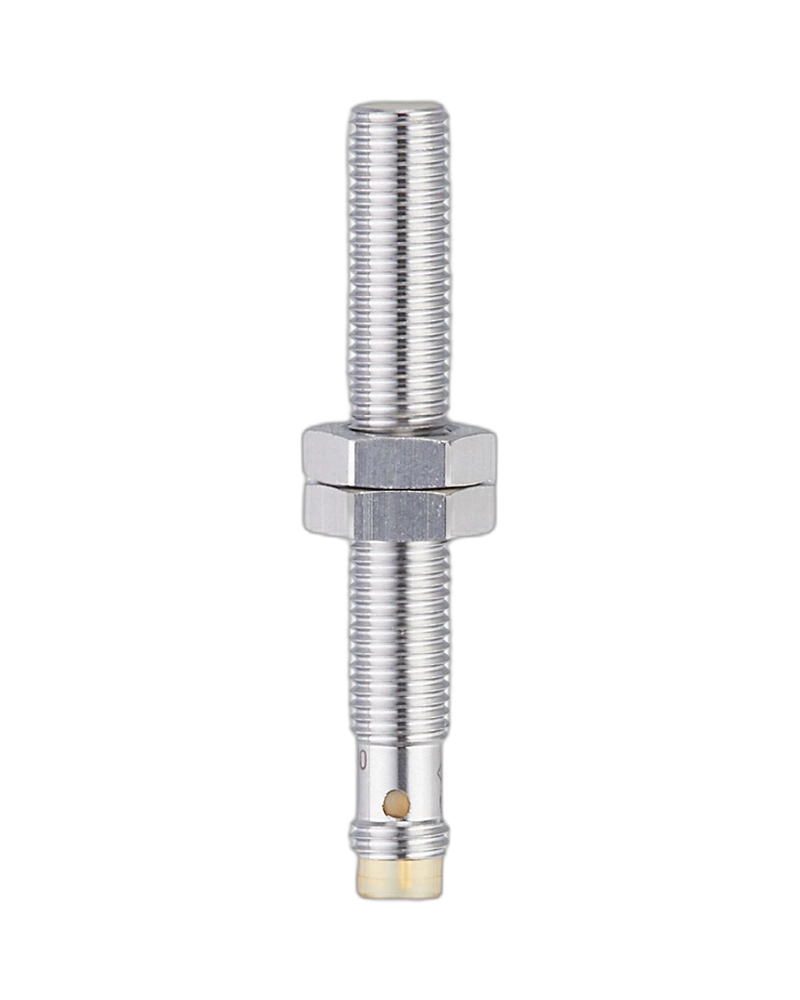

The IFM IE5457 IEK3003-FRKG/IO/AS inductive sensor with IO-Link is designed for reliable non-contact detection of metallic objects in industrial automation and machine-control applications. Featuring a compact M8 × 1 threaded housing, configurable PNP/NPN output, configurable normally open/normally closed switching and IO-Link communication, it provides flexible sensor integration, parameterisation and diagnostics
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IE5457 IEK3003-FRKG/IO/AS inductive sensor with IO-Link is engineered for reliable non-contact detection of metallic objects in industrial automation, machinery, assembly equipment and factory production systems. Its compact M8 × 1 threaded construction and intelligent IO-Link communication make it suitable for applications requiring dependable proximity detection with flexible configuration and sensor diagnostics.
The IE5457 uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for repeated object detection, position monitoring, machine sequencing, component detection and automation feedback.
The sensor features a configurable PNP/NPN electrical design and configurable normally open/normally closed output, allowing it to be adapted to compatible industrial control systems. Its IO-Link communication interface supports convenient parameterisation, sensor data communication and diagnostic functions in modern automation systems.
IFM IE5457 inductive sensor with IO-Link
Model: IEK3003-FRKG/IO/AS
M8 × 1 threaded design
50 mm overall length
Configurable PNP/NPN electrical design
Configurable normally open/normally closed output
IO-Link communication interface
10–30 V DC operating voltage
600 Hz switching frequency
100 mA permanent switching current
2.5 V maximum voltage drop
Short-circuit protection
Overload protection
Reverse-polarity protection
Gold-plated connector contacts
Stainless steel housing
4 × yellow LED status indication
IP65, IP66, IP67, IP68 and IP69K protection with correctly installed IFM socket
-40 °C to +75 °C ambient temperature range
The IE5457 features a compact M8 × 1 threaded housing with a 50 mm overall length, making it suitable for machine structures and installations where available space is limited. The housing is manufactured from stainless steel, with a white LCP sensing face and gold-plated connector contacts.
The configurable PNP/NPN output and normally open/normally closed switching function provide flexibility when connecting the sensor to compatible PLCs, controllers and automation equipment.
The IE5457 incorporates an IO-Link communication interface for intelligent sensor communication and parameterisation. It supports IO-Link revision 1.1, COM2 transmission at 38.4 kBaud and a minimum process cycle time of 3.2 ms.
The IO-Link interface can provide process values, device status and binary switching information, while additional functions include switching-cycle counting, operating-hours counting, internal temperature monitoring and an application-specific tag.
The IE5457 provides an IO-Link configurable switch point of 0.56–2.8 mm and an IO-Link measuring range of 0.3–3 mm.
The correction factors are specified as 1 for steel, 0.7 for stainless steel, 0.4 for brass, 0.4 for aluminium and 0.3 for copper. Hysteresis is configurable from 3–15% of Sr.
The sensor provides a 600 Hz switching frequency, making it suitable for repetitive detection tasks in automated machinery and production systems.
The IE5457 can be integrated into a wide range of Industrial Automation UAE applications.
Machine position detection
Metal component detection
Assembly-line automation
Conveyor monitoring
Automated counting
Machine sequencing
Position feedback
Production machinery
Material handling equipment
PLC-based automation systems
IO-Link smart sensor installations
The IE5457 is designed for reliable operation in demanding industrial environments. Its -40 °C to +75 °C ambient temperature range, high switching frequency and protective electrical functions support dependable operation across a broad range of automation applications.
The sensor provides IP65, IP66, IP67, IP68 and IP69K protection when used with the correctly installed specified IFM socket, making it suitable for applications where dust, moisture and demanding industrial conditions are present.
Compact M8 × 1 threaded construction
Configurable PNP/NPN output
Configurable normally open/normally closed switching
IO-Link communication and parameterisation
600 Hz switching frequency
10–30 V DC operation
Stainless steel housing
Gold-plated connector contacts
Wide -40 °C to +75 °C ambient temperature range
Short-circuit and overload protection
High protection rating for demanding industrial environments
Suitable for machine automation and smart sensor networks
The IFM IE5457 IEK3003-FRKG/IO/AS is a compact and intelligent inductive sensor designed for reliable metal detection and modern IO-Link-based automation. Its configurable output, 0.3–3 mm IO-Link measuring range, 600 Hz switching frequency, stainless steel construction and high protection rating make it suitable for machinery, production equipment, position detection and factory automation. It is a practical choice for businesses looking for Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE and Industrial Automation Suppliers UAE.
| Specification | Details |
|---|---|
| Product Code | IE5457 |
| Manufacturer | IFM electronic |
| Model / Part Number | IEK3003-FRKG/IO/AS |
| Product Type | Inductive Sensor with IO-Link |
| Sensor Type | Inductive / Proximity Sensor |
| Electrical Design | PNP/NPN, configurable |
| Output Function | Normally Open / Normally Closed, configurable |
| Communication Interface | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission Type | COM2, 38.4 kBaud |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 15 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Voltage Drop | 2.5 V |
| Permanent Current Rating | 100 mA |
| Switching Frequency | 600 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| IO-Link Switch Point | 0.56–2.8 mm, configurable |
| IO-Link Measuring Range | 0.3–3 mm |
| Hysteresis | 3–15% of Sr, configurable |
| Linearity Error IO-Link | ±3% of measuring range final value |
| Repeatability IO-Link | ±2% of measuring range final value |
| Temperature Drift | ±10% of measuring range final value |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Housing Type | Threaded |
| Thread | M8 × 1 |
| Overall Length | 50 mm |
| Mounting | Flush mountable |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sensing Face Material | LCP, white |
| LED Window Material | PEI |
| Connection | 1 × M8 connector |
| Connector Contacts | Gold-plated |
| Output Status Indication | LED |
| SIO Mode | Yes |
| Minimum Process Cycle Time | 3.2 ms |
| Required IO-Link Master Port | Type A |
| IO-Link Process Data | Process value, device status, binary switching information |
| IO-Link Process Value | 16 bit |
| IO-Link Device Status | 4 bit |
| Binary Switching Information | 2 bit |
| IO-Link Acyclic Functions | Switching cycles counter, switch-on cycles counter, operating hours counter, internal temperature, application-specific tag |
| Ambient Temperature | -40 °C to +75 °C |
| Protection Rating | IP65, IP66, IP67, IP68, IP69K with correctly installed IFM socket |
| Weight | Approx. 16.2 g |
| Typical Applications | Industrial automation, machine control, metal detection, position sensing, assembly machinery and factory automation |
